服务器

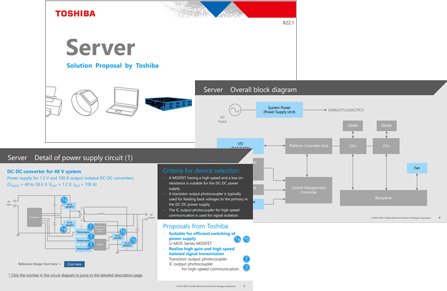

总方框图

服务器

单击总方框图中想要查看详细信息的区域。将显示我们建议的子方框图的链接。

DC-DC转换器电路／AC-DC转换器电路

用于48V系统AC-DC转换器

半桥型AC-DC转换器电路示例

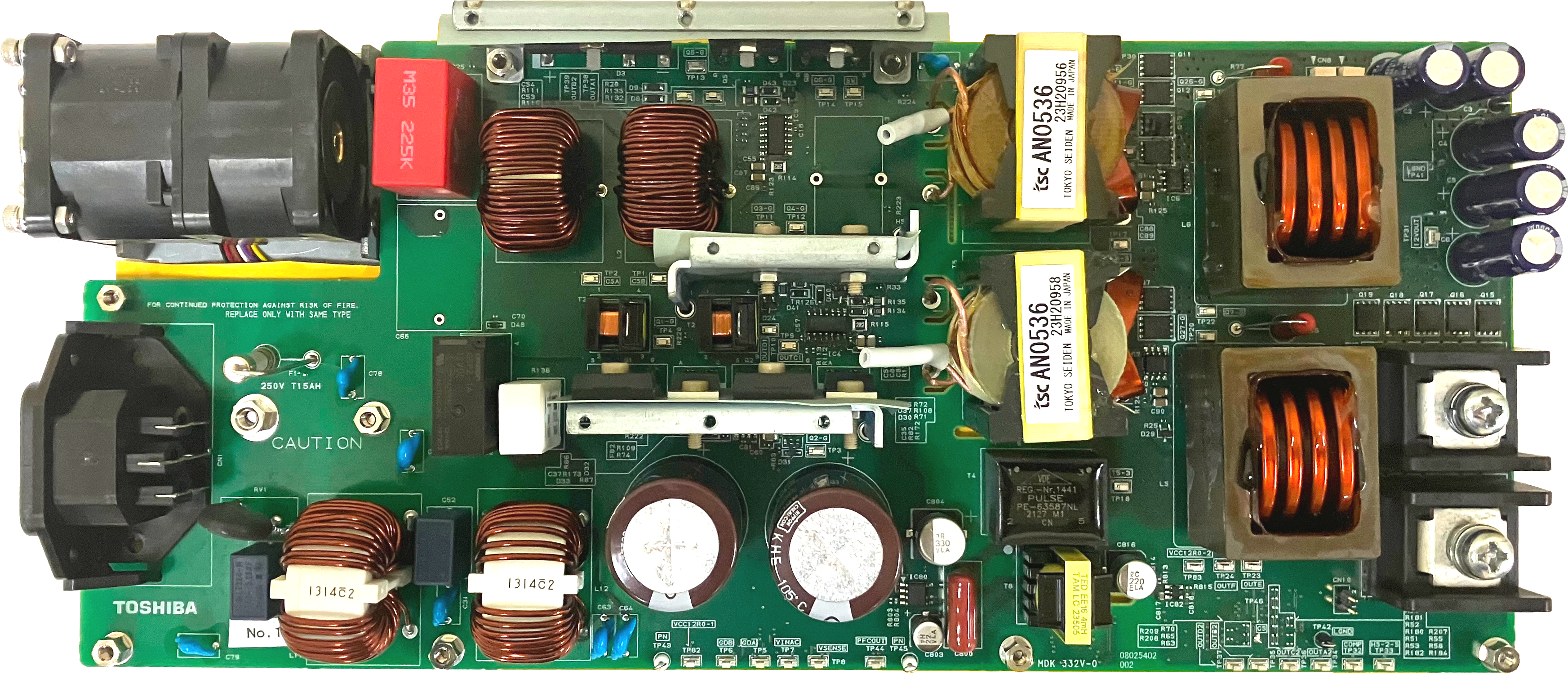

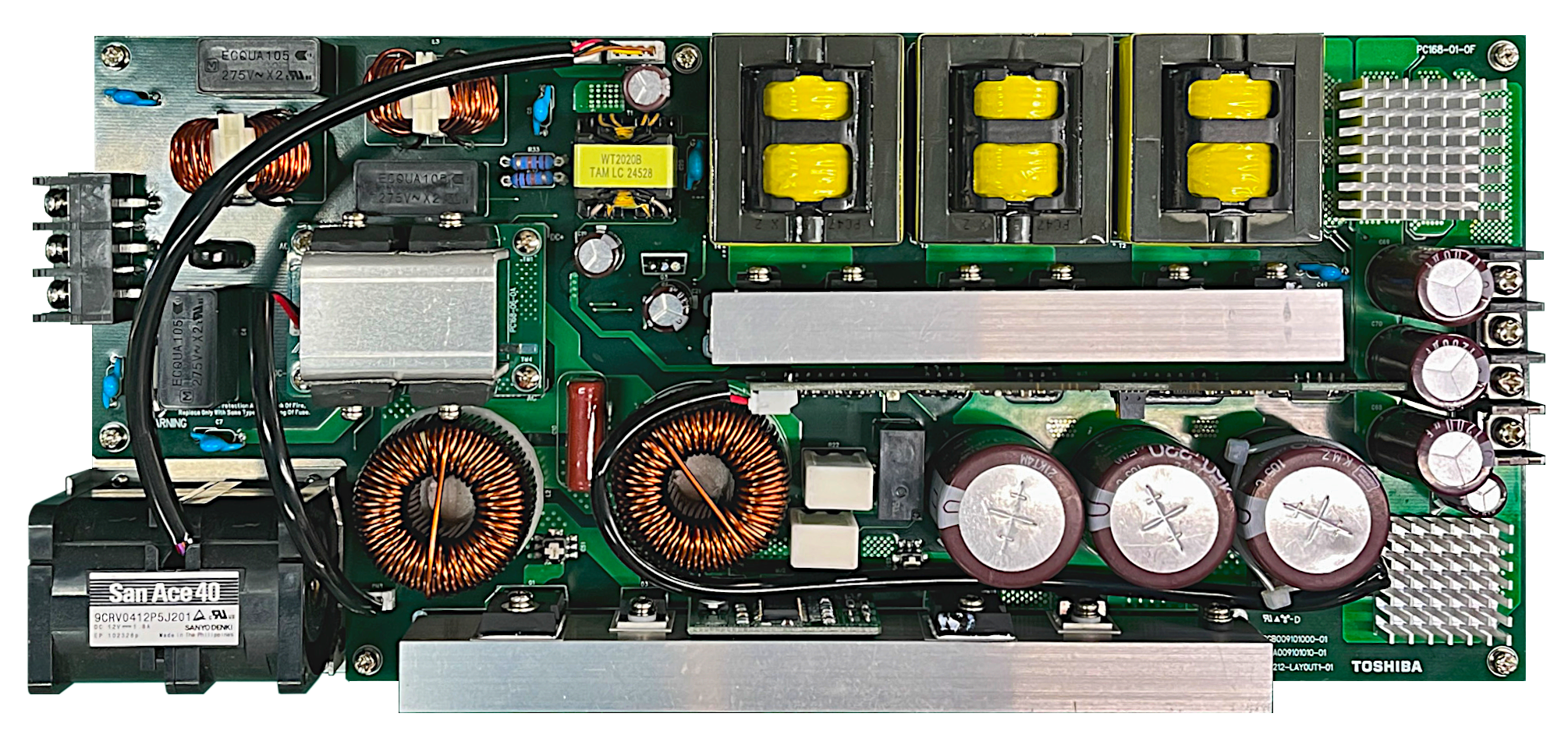

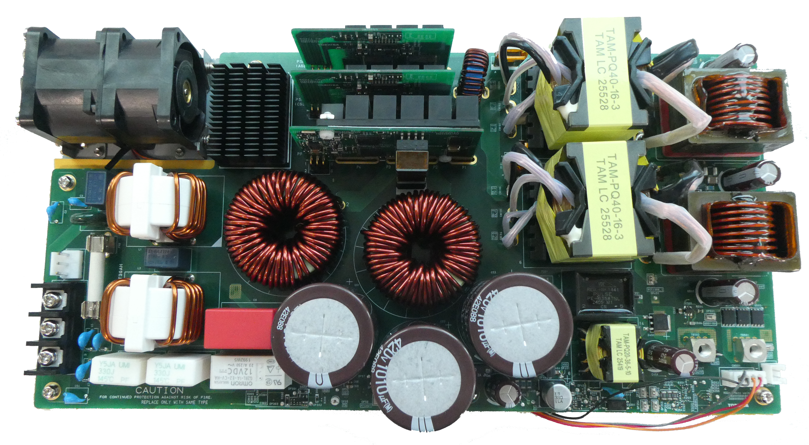

用于12V系统的AC-DC转换器（交错式PFC）（1.6k电源（V_IN(AC)＝90V至264V，V_OUT＝12.0V，I_OUT＝66.7A／133A））

使用交错式PFC的AC-DC转换器电路示例

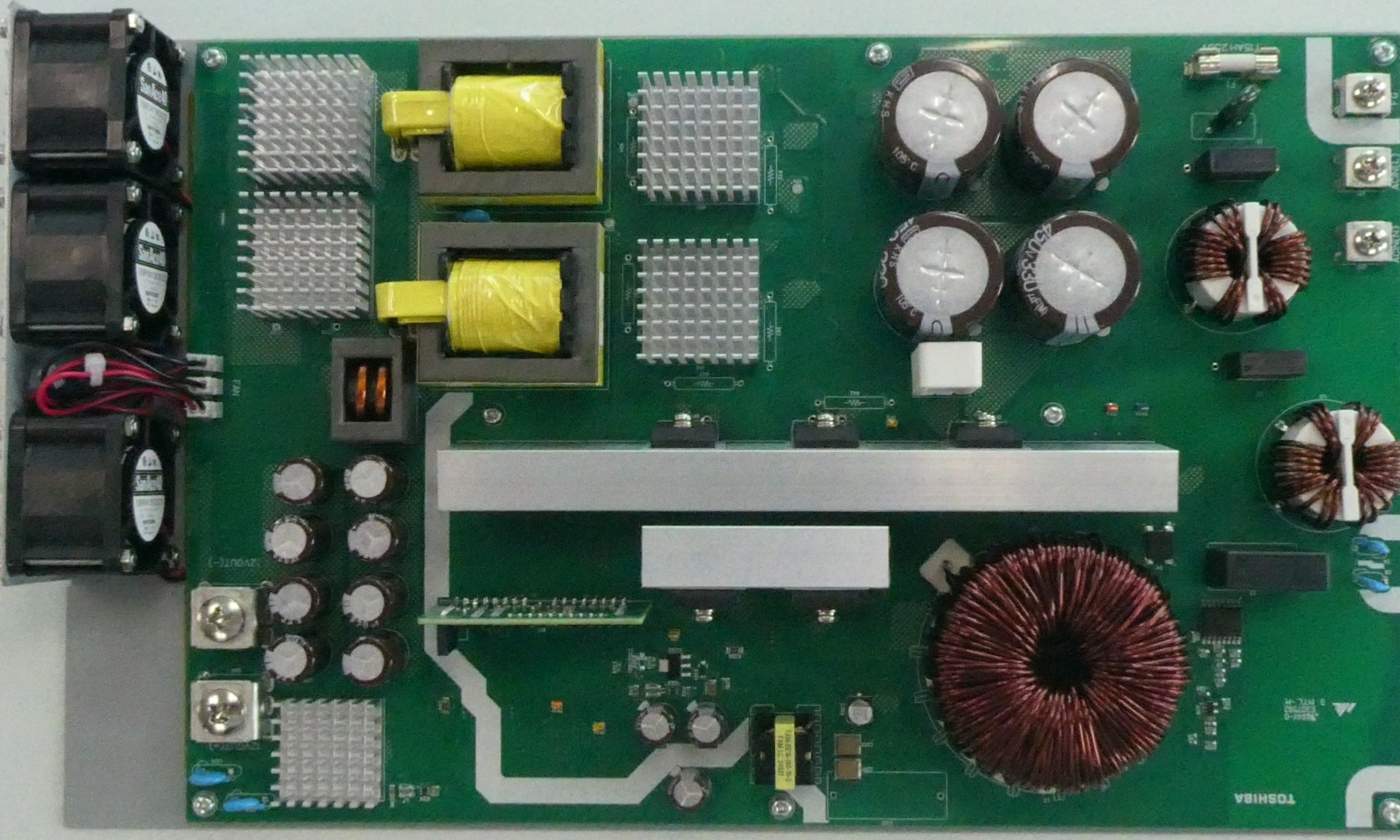

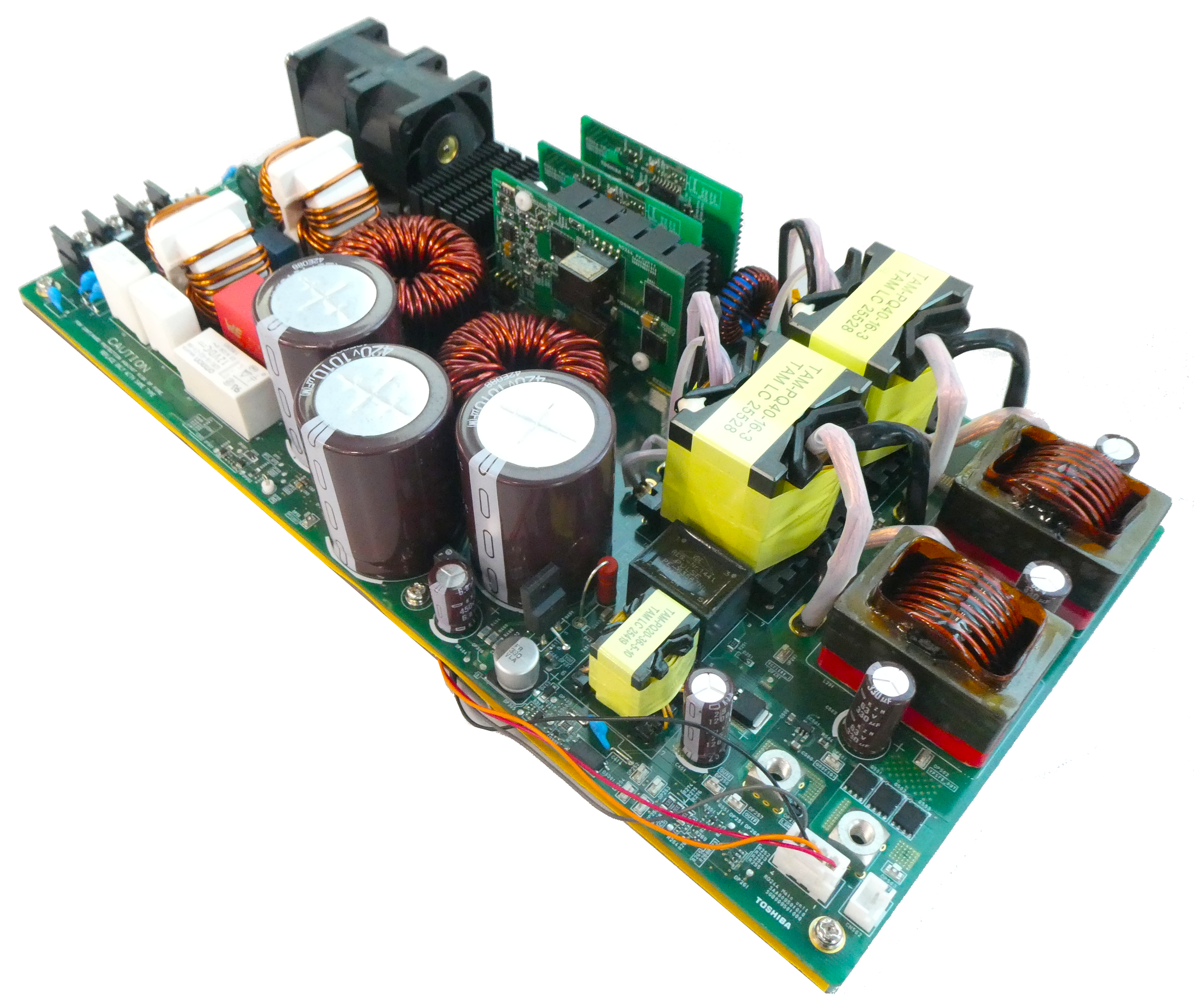

用于12V系统的AC-DC转换器（无桥PFC）（1.6kW电源（V_IN(AC)＝90V至264V，V_OUT＝12.0V，I_OUT＝66.7A／133A））

使用无桥型PFC的AC-DC转换器电路示例

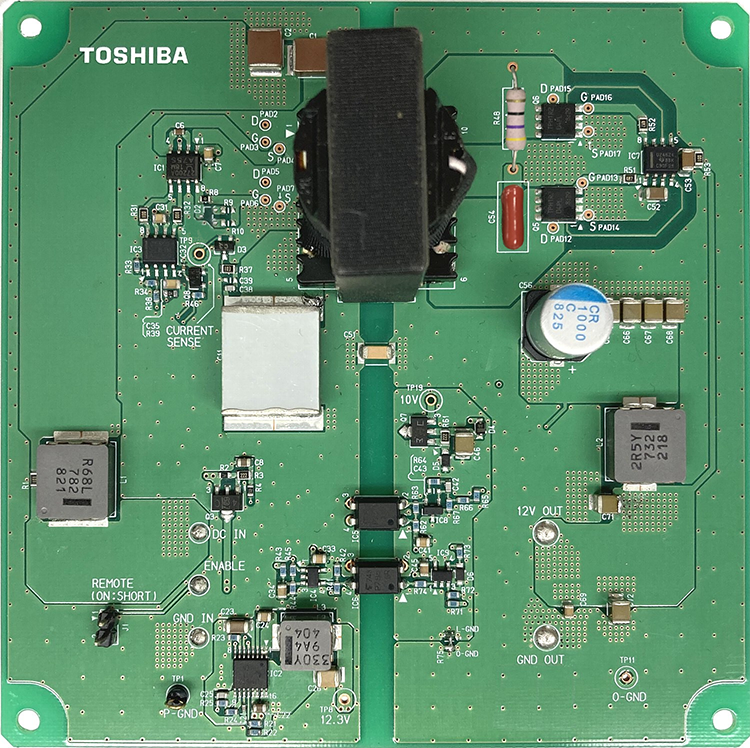

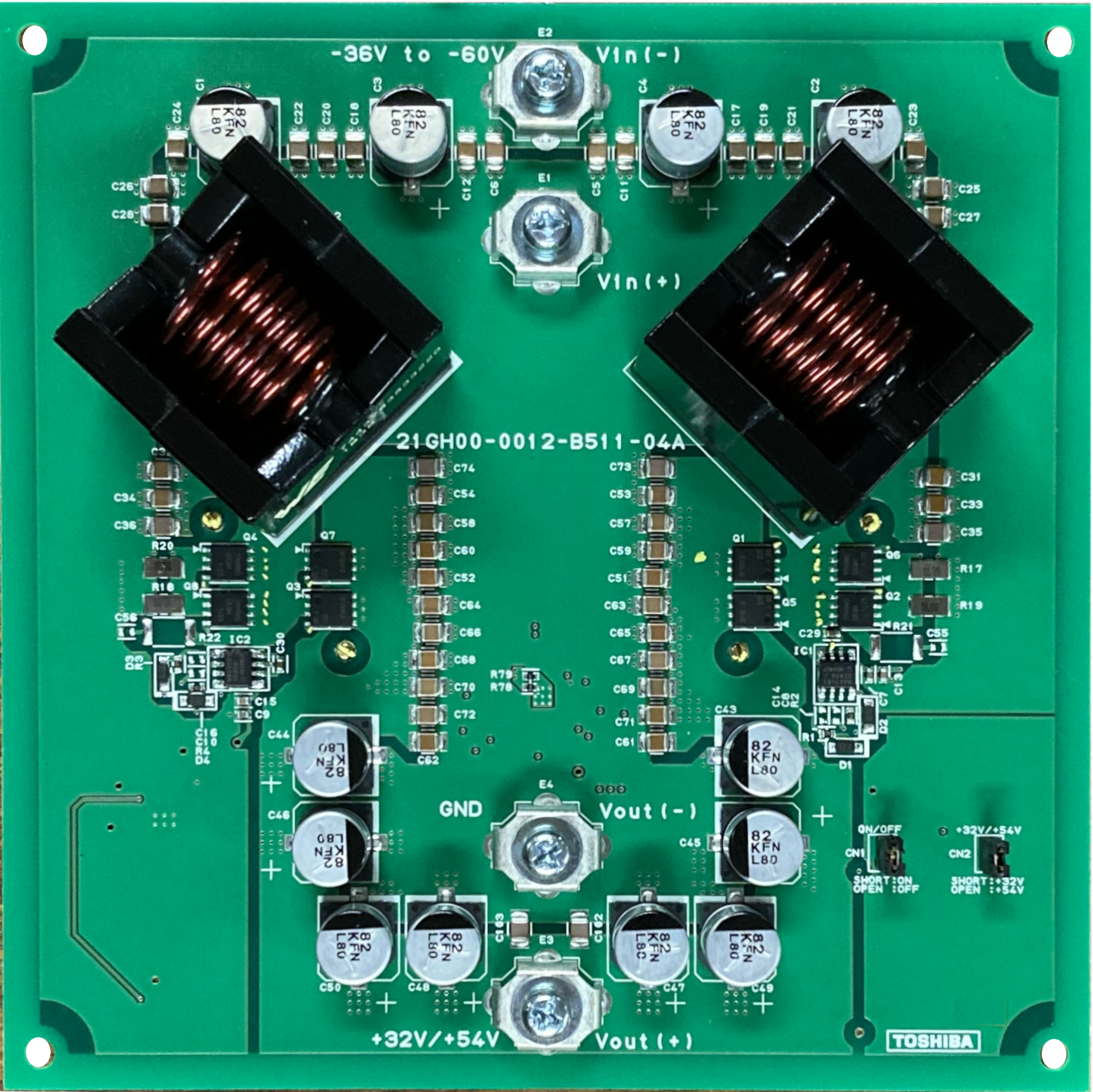

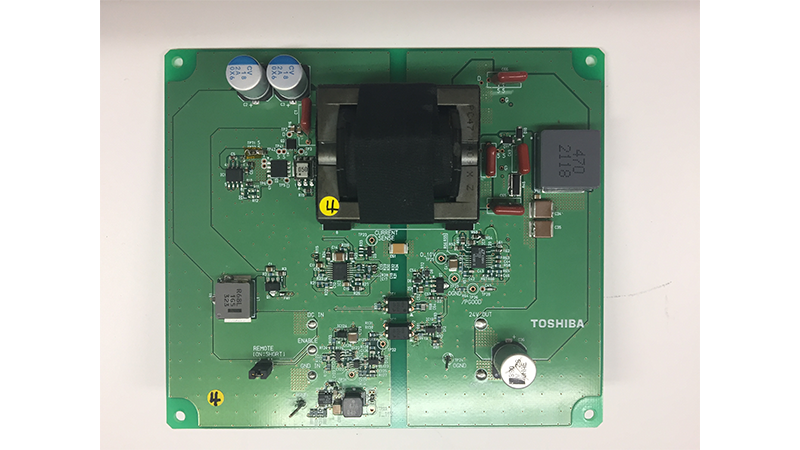

用于48V系统的DC-DC转换器（300W隔离式DC-DC转换器电源（V_IN(DC)＝36V至75V，V_out＝12.0V，I_out＝25A））

全桥型DC-DC转换器电路示例

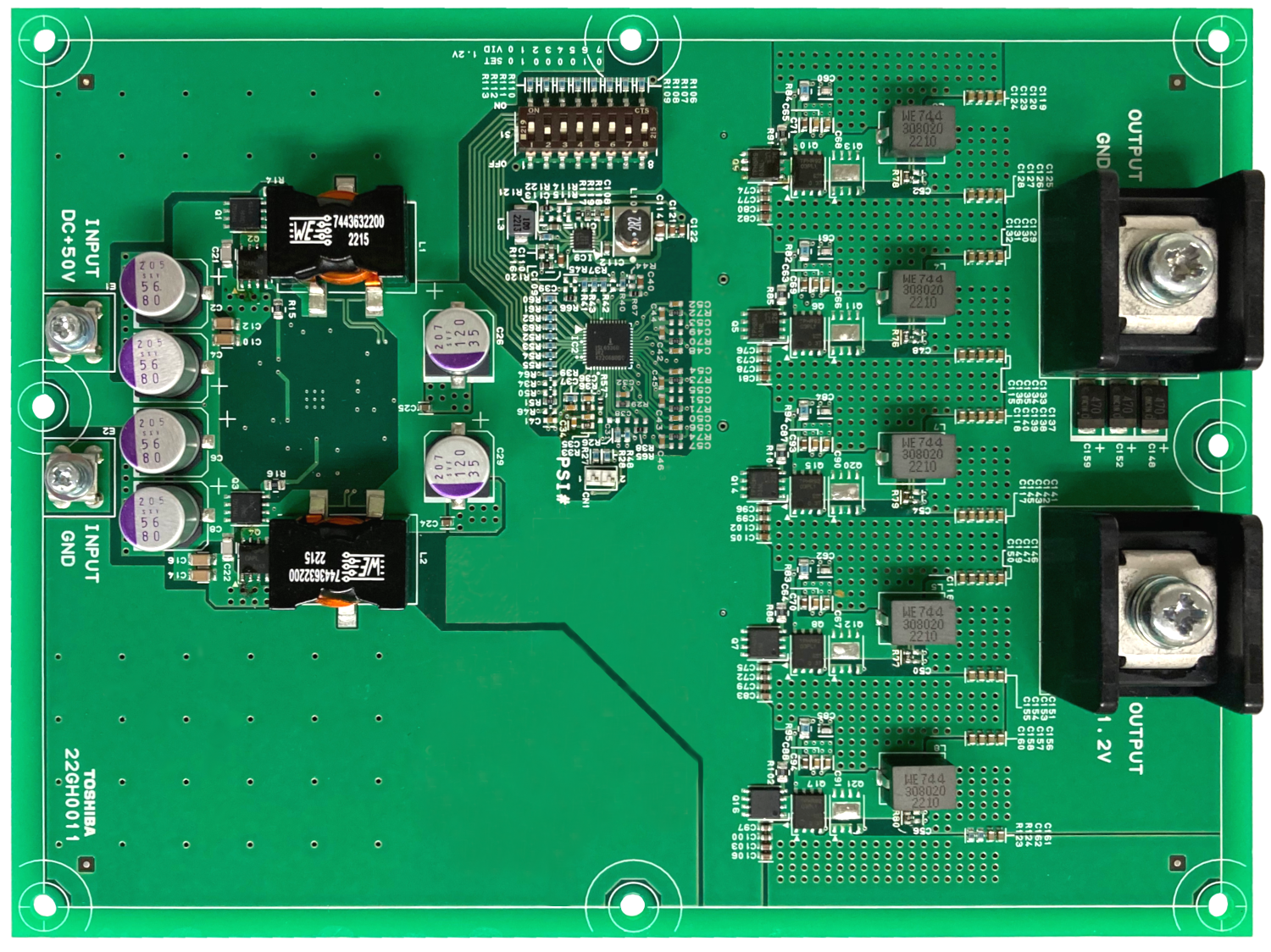

用于48V系统的DC-DC转换器（1.2V和100A输出隔离式DC-DC转换器电源（V_IN(DC)＝40V至59.5V，V_OUT＝1.2V，I_OUT＝100A））

半桥型DC-DC转换器电路示例

外围接口电路

外围接口信号线保护电路示例

风扇驱动电路

风扇电机驱动电路示例

过温监控电路

多点过温监控电路示例

Power line to storage devices

Example of power line protection circuit from controller hub to strage devices

子方框图

DC-DC转换器电路／AC-DC转换器电路

用于48V系统AC-DC转换器

半桥型AC-DC转换器电路示例

U-MOS Series MOSFET
IC output photocoupler for high speed communication
DTMOS Series MOSFET(1)
DTMOS Series MOSFET(2)
SiC MOSFET
SiC Schottky barrier diode

U-MOS Series MOSFET

器件型号	TPH2R408QM	TPH9R00CQ5	TPHR6503PL	TPH2R408QM	TPH3R10AQM
Toshiba Package Name	SOP Advance	SOP Advance / SOP Advance(N)	SOP Advance	SOP Advance	SOP Advance(N)
V_DSS (Max) [V]	80	150	30	80	100
I_D (Max) [A]	120	64	393	120	120
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.00243	0.009	0.00065	0.00243	0.0031
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch

搜索产品线

IC output photocoupler for high speed communication

器件型号	TLP2767	TLP2370
Toshiba Package Name	SO6L	5pin SO6
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750
V_CC / V_DD (Min) [V]	2.7	2.7
V_CC / V_DD (Max) [V]	5.5	5.5
I_CC / I_DD (Max) [mA]	2.5	0.4
Output Interface	totem-pole(INV)	totem-pole(BUF)

搜索产品线

DTMOS Series MOSFET(1)

器件型号	TK040N65Z	TK040Z65Z	TK090A65Z	TK099V65Z	TK090U65Z
Toshiba Package Name	TO-247	TO-247-4L	TO-220SIS	DFN 8×8	TOLL
V_DSS (Max) [V]	650	650	650	650	650
I_D (Max) [A]	57	57	30	30	30
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.04	0.04	0.09	0.099	0.09
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch

搜索产品线

DTMOS Series MOSFET(2)

器件型号	TK110N65Z	TK110Z65Z	TK110A65Z	TK125V65Z	TK110U65Z	TK155U65Z
Toshiba Package Name	TO-247	TO-247-4L	TO-220SIS	DFN 8×8	TOLL	TOLL
V_DSS (Max) [V]	650	650	650	650	650	650
I_D (Max) [A]	24	24	24	24	24	18
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.11	0.11	0.11	0.125	0.11	0.155
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

搜索产品线

SiC MOSFET

器件型号	TW015N65C	TW027N65C	TW048N65C	TW015Z65C	TW027Z65C	TW048Z65C
Toshiba Package Name	TO-247	TO-247	TO-247	TO-247-4L(X)	TO-247-4L(X)	TO-247-4L(X)
V_DSS (Max) [V]	650	650	650	650	650	650
I_D (Max) [A]	100	58	40	100	58	40
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 18.0 [V]	0.021	0.037	0.065	0.022	0.038	0.069
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

搜索产品线

SiC Schottky barrier diode

器件型号	TRS12A65F	TRS24N65FB	TRS2E65H	TRS12E65H	TRS4V65H	TRS12V65H
Toshiba Package Name	TO-220F-2L	TO-247	TO-220-2L	TO-220-2L	DFN 8×8	DFN 8×8
I_F(DC) (Max) [A]	12	24	2	12	4	12
V_RRM (Max) [V]	650	650	650	650	650	650
V_F (Max) [V]	1.6	1.6	1.35	1.35	1.35	1.35
I_R (Max) [µA] @ V_RRM (Max)	60	60	40	120	55	120

搜索产品线

用于12V系统的AC-DC转换器（交错式PFC）（1.6k电源（V_IN(AC)＝90V至264V，V_OUT＝12.0V，I_OUT＝66.7A／133A））

使用交错式PFC的AC-DC转换器电路示例

DTMOS Series MOSFET (1)
DTMOS Series MOSFET (2)
SiC MOSFET
SiC Schottky barrier diode
IC output photocoupler for high speed communication
U-MOS Series MOSFET (1)
U-MOS Series MOSFET (2)

DTMOS Series MOSFET (1)

器件型号	TK040N65Z	TK040Z65Z	TK090A65Z	TK099V65Z	TK090U65Z
Toshiba Package Name	TO-247	TO-247-4L	TO-220SIS	DFN 8×8	TOLL
V_DSS (Max) [V]	650	650	650	650	650
I_D (Max) [A]	57	57	30	30	30
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.04	0.04	0.09	0.099	0.09
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch

搜索产品线

DTMOS Series MOSFET (2)

器件型号	TK110N65Z	TK110Z65Z	TK110A65Z	TK125V65Z	TK110U65Z	TK155U65Z
Toshiba Package Name	TO-247	TO-247-4L	TO-220SIS	DFN 8×8	TOLL	TOLL
V_DSS (Max) [V]	650	650	650	650	650	650
I_D (Max) [A]	24	24	24	24	24	18
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.11	0.11	0.11	0.125	0.11	0.155
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

搜索产品线

SiC MOSFET

器件型号	TW015N65C	TW027N65C	TW048N65C	TW015Z65C	TW027Z65C	TW048Z65C
Toshiba Package Name	TO-247	TO-247	TO-247	TO-247-4L(X)	TO-247-4L(X)	TO-247-4L(X)
V_DSS (Max) [V]	650	650	650	650	650	650
I_D (Max) [A]	100	58	40	100	58	40
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 18.0 [V]	0.021	0.037	0.065	0.022	0.038	0.069
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

搜索产品线

SiC Schottky barrier diode

器件型号	TRS12A65F	TRS24N65FB	TRS2E65H	TRS12E65H	TRS4V65H	TRS12V65H
Toshiba Package Name	TO-220F-2L	TO-247	TO-220-2L	TO-220-2L	DFN 8×8	DFN 8×8
I_F(DC) (Max) [A]	12	24	2	12	4	12
V_RRM (Max) [V]	650	650	650	650	650	650
V_F (Max) [V]	1.6	1.6	1.35	1.35	1.35	1.35
I_R (Max) [µA] @ V_RRM (Max)	60	60	40	120	55	120

搜索产品线

IC output photocoupler for high speed communication

器件型号	TLP2767	TLP2370
Toshiba Package Name	SO6L	5pin SO6
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750
V_CC / V_DD (Min) [V]	2.7	2.7
V_CC / V_DD (Max) [V]	5.5	5.5
I_CC / I_DD (Max) [mA]	2.5	0.4
Output Interface	totem-pole(INV)	totem-pole(BUF)

搜索产品线

U-MOS Series MOSFET (1)

器件型号	TPHR8504PL	TPH1R306PL	TPH2R408QM	TPH3R10AQM
Toshiba Package Name	SOP Advance	SOP Advance	SOP Advance	SOP Advance(N)
V_DSS (Max) [V]	40	60	80	100
I_D (Max) [A]	340	260	120	120
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.00085	0.00134	0.00243	0.0031
Polarity	N-ch	N-ch	N-ch	N-ch

搜索产品线

U-MOS Series MOSFET (2)

器件型号	TPHR6503PL	TPH2R408QM	TPH3R10AQM
Toshiba Package Name	SOP Advance	SOP Advance	SOP Advance(N)
V_DSS (Max) [V]	30	80	100
I_D (Max) [A]	393	120	120
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.00065	0.00243	0.0031
Polarity	N-ch	N-ch	N-ch

搜索产品线

用于12V系统的AC-DC转换器（无桥PFC）（1.6kW电源（V_IN(AC)＝90V至264V，V_OUT＝12.0V，I_OUT＝66.7A／133A））

使用无桥型PFC的AC-DC转换器电路示例

DTMOS Series MOSFET (1)
DTMOS Series MOSFET (2)
SiC MOSFET
SiC Schottky barrier diode
IC output photocoupler for high speed communication
U-MOS Series MOSFET (1)
U-MOS Series MOSFET (2)

DTMOS Series MOSFET (1)

器件型号	TK040N65Z	TK040Z65Z	TK090A65Z	TK099V65Z	TK090U65Z
Toshiba Package Name	TO-247	TO-247-4L	TO-220SIS	DFN 8×8	TOLL
V_DSS (Max) [V]	650	650	650	650	650
I_D (Max) [A]	57	57	30	30	30
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.04	0.04	0.09	0.099	0.09
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch

搜索产品线

DTMOS Series MOSFET (2)

器件型号	TK110N65Z	TK110Z65Z	TK110A65Z	TK125V65Z	TK110U65Z	TK155U65Z
Toshiba Package Name	TO-247	TO-247-4L	TO-220SIS	DFN 8×8	TOLL	TOLL
V_DSS (Max) [V]	650	650	650	650	650	650
I_D (Max) [A]	24	24	24	24	24	18
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.11	0.11	0.11	0.125	0.11	0.155
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

搜索产品线

SiC MOSFET

器件型号	TW015N65C	TW027N65C	TW048N65C	TW015Z65C	TW027Z65C	TW048Z65C
Toshiba Package Name	TO-247	TO-247	TO-247	TO-247-4L(X)	TO-247-4L(X)	TO-247-4L(X)
V_DSS (Max) [V]	650	650	650	650	650	650
I_D (Max) [A]	100	58	40	100	58	40
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 18.0 [V]	0.021	0.037	0.065	0.022	0.038	0.069
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

搜索产品线

SiC Schottky barrier diode

器件型号	TRS12A65F	TRS24N65FB	TRS2E65H	TRS12E65H	TRS4V65H	TRS12V65H
Toshiba Package Name	TO-220F-2L	TO-247	TO-220-2L	TO-220-2L	DFN 8×8	DFN 8×8
I_F(DC) (Max) [A]	12	24	2	12	4	12
V_RRM (Max) [V]	650	650	650	650	650	650
V_F (Max) [V]	1.6	1.6	1.35	1.35	1.35	1.35
I_R (Max) [µA] @ V_RRM (Max)	60	60	40	120	55	120

搜索产品线

IC output photocoupler for high speed communication

器件型号	TLP2767	TLP2370
Toshiba Package Name	SO6L	5pin SO6
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750
V_CC / V_DD (Min) [V]	2.7	2.7
V_CC / V_DD (Max) [V]	5.5	5.5
I_CC / I_DD (Max) [mA]	2.5	0.4
Output Interface	totem-pole(INV)	totem-pole(BUF)

搜索产品线

U-MOS Series MOSFET (1)

器件型号	TPHR8504PL	TPH1R306PL	TPH2R408QM	TPH3R10AQM
Toshiba Package Name	SOP Advance	SOP Advance	SOP Advance	SOP Advance(N)
V_DSS (Max) [V]	40	60	80	100
I_D (Max) [A]	340	260	120	120
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.00085	0.00134	0.00243	0.0031
Polarity	N-ch	N-ch	N-ch	N-ch

搜索产品线

U-MOS Series MOSFET (2)

器件型号	TPHR6503PL	TPH2R408QM	TPH3R10AQM
Toshiba Package Name	SOP Advance	SOP Advance	SOP Advance(N)
V_DSS (Max) [V]	30	80	100
I_D (Max) [A]	393	120	120
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.00065	0.00243	0.0031
Polarity	N-ch	N-ch	N-ch

搜索产品线

用于48V系统的DC-DC转换器（300W隔离式DC-DC转换器电源（V_IN(DC)＝36V至75V，V_out＝12.0V，I_out＝25A））

全桥型DC-DC转换器电路示例

U-MOS Series MOSFET (1)
U-MOS Series MOSFET (2)
Transistor output photocoupler
IC output photocoupler for high speed communication

U-MOS Series MOSFET (1)

器件型号	TPH9R00CQH	TPN12008QM	TPN1200APL
Toshiba Package Name	SOP Advance / SOP Advance(N)	TSON Advance	TSON Advance
V_DSS (Max) [V]	150	80	100
I_D (Max) [A]	64	26	66
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.009	0.0123	0.0115
Polarity	N-ch	N-ch	N-ch

搜索产品线

U-MOS Series MOSFET (2)

器件型号	TPHR8504PL	TPH1R306PL	TPH2R408QM	TPH3R10AQM
Toshiba Package Name	SOP Advance	SOP Advance	SOP Advance	SOP Advance(N)
V_DSS (Max) [V]	40	60	80	100
I_D (Max) [A]	340	260	120	120
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.00085	0.00134	0.00243	0.0031
Polarity	N-ch	N-ch	N-ch	N-ch

搜索产品线

Transistor output photocoupler

器件型号	TLP383	TLP291(SE
Toshiba Package Name	4pin SO6L	SO4
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750
V_CEO (Max) [V]	80	80
T_opr [°C]	-55 to 125	-55 to 110

搜索产品线

IC output photocoupler for high speed communication

器件型号	TLP2767	TLP2370
Toshiba Package Name	SO6L	5pin SO6
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750
V_CC / V_DD (Min) [V]	2.7	2.7
V_CC / V_DD (Max) [V]	5.5	5.5
I_CC / I_DD (Max) [mA]	2.5	0.4
Output Interface	totem-pole(INV)	totem-pole(BUF)

搜索产品线

用于48V系统的DC-DC转换器（1.2V和100A输出隔离式DC-DC转换器电源（V_IN(DC)＝40V至59.5V，V_OUT＝1.2V，I_OUT＝100A））

半桥型DC-DC转换器电路示例

U-MOS Series MOSFET (1)
U-MOS Series MOSFET (2)
Transistor output photocoupler
IC output photocoupler for high speed communication

U-MOS Series MOSFET (1)

器件型号	TPH9R00CQH	TPN12008QM	TPN1200APL
Toshiba Package Name	SOP Advance / SOP Advance(N)	TSON Advance	TSON Advance
V_DSS (Max) [V]	150	80	100
I_D (Max) [A]	64	26	66
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.009	0.0123	0.0115
Polarity	N-ch	N-ch	N-ch

搜索产品线

U-MOS Series MOSFET (2)

器件型号	TPHR6503PL	TPHR8504PL	TPWR6003PL	TPWR8004PL
Toshiba Package Name	SOP Advance	SOP Advance	DSOP Advance	DSOP Advance
V_DSS (Max) [V]	30	40	30	40
I_D (Max) [A]	393	340	412	340
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.00065	0.00085	0.0006	0.0008
Polarity	N-ch	N-ch	N-ch	N-ch

搜索产品线

Transistor output photocoupler

器件型号	TLP383	TLP291(SE
Toshiba Package Name	4pin SO6L	SO4
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750
V_CEO (Max) [V]	80	80
T_opr [°C]	-55 to 125	-55 to 110

搜索产品线

IC output photocoupler for high speed communication

器件型号	TLP2767	TLP2370
Toshiba Package Name	SO6L	5pin SO6
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750
V_CC / V_DD (Min) [V]	2.7	2.7
V_CC / V_DD (Max) [V]	5.5	5.5
I_CC / I_DD (Max) [mA]	2.5	0.4
Output Interface	totem-pole(INV)	totem-pole(BUF)

搜索产品线

外围接口电路

外围接口信号线保护电路示例

Examples of peripheral interface signal line protection circuits

TVS diode

TVS diode

器件型号	DF2B7ASL	DF2B5M4SL	DF2B6M4SL
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)
V_ESD (Max) [kV]	+/-30	+/-20	+/-20
I_R (Max) [µA]	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.2	0.5	0.5
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	8.5	0.2	0.2

搜索产品线

风扇驱动电路

风扇电机驱动电路示例

Three-phase brushless DC motor driver IC
Semi-power MOSFET

Three-phase brushless DC motor driver IC

器件型号	TC78B025FTG	TC78B027FTG	TC78B009FTG
Toshiba Package Name	P-VQFN24-0404-0.50-002	P-VQFN24-0404-0.50-003	P-WQFN36-0505-0.50-001
V_OUT (Max) [V]	18	18	30
I_OUT (Max) [A]	3.5	0.2	0.24
V_M [V]	5.5 to 16	5 to 16	5.5 to 27
R_ON (Typ.) [Ω]	0.2

搜索产品线

Semi-power MOSFET

器件型号	SSM6K341NU	SSM3K341R
Toshiba Package Name	SOT-1220 (UDFN6B)	SOT-23F
V_DSS (Max) [V]	60	60
I_D (Max) [A]	6	6
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 4.5 [V]	0.051	0.051
Polarity	N-ch	N-ch

搜索产品线

过温监控电路

多点过温监控电路示例

Over temperature detection IC (1)
Over temperature detection IC(2)

Over temperature detection IC (Thermoflagger^TM )(1)

器件型号	TCTH011AE	TCTH012AE	TCTH021AE	TCTH022AE
Toshiba Package Name	SOT-553 (ESV)	SOT-553 (ESV)	SOT-553 (ESV)	SOT-553 (ESV)
V_DD (Min) [V]	1.7	1.7	1.7	1.7
V_DD (Max) [V]	5.5	5.5	5.5	5.5
I_DD (Typ.) [µA] @ T_j = 25 [°C]	1.8	1.8	11.3	11.3
I_PTCO (Typ.) [µA] @ T_j = 25 [°C]	1	1	10	10
FLAG Signal Output	Push-pull	Push-pull	Push-pull	Push-pull

搜索产品线

Over temperature detection IC (Thermoflagger^TM )(2)

器件型号	TCTH011BE	TCTH012BE	TCTH021BE	TCTH022BE
Toshiba Package Name	SOT-553 (ESV)	SOT-553 (ESV)	SOT-553 (ESV)	SOT-553 (ESV)
V_DD (Min) [V]	1.7	1.7	1.7	1.7
V_DD (Max) [V]	5.5	5.5	5.5	5.5
I_DD (Typ.) [µA] @ T_j = 25 [°C]	1.8	1.8	11.3	11.3
I_PTCO (Typ.) [µA] @ T_j = 25 [°C]	1	1	10	10
FLAG Signal Output	Open drain	Open drain	Open drain	Open drain

搜索产品线

Power line to storage devices

Example of power line protection circuit from controller hub to strage devices

Electronic fuse (eFuse IC) (1)

器件型号	TCKE800NA	TCKE805NA	TCKE812NA
Toshiba Package Name	WSON10B	WSON10B	WSON10B
V_IN (Max) [V]	18	18	18
R_ON (Typ.) [mΩ]	28	28	28
V_OVC (Typ.) [V]		6.04	15.1
Recovery Operation Type	Auto-retry	Auto-retry	Auto-retry

搜索产品线

Electronic fuse (eFuse IC) (2)

器件型号	TCKE800NL	TCKE805NL	TCKE812NL	TCKE712BNL
Toshiba Package Name	WSON10B	WSON10B	WSON10B	WSON10
V_IN (Max) [V]	18	18	18	13.2
R_ON (Typ.) [mΩ]	28	28	28	53
V_OVC (Typ.) [V]		6.04	15.1
Recovery Operation Type	Latch	Latch	Latch	Latch

搜索产品线

Schottky barrier diode (1)

器件型号	CUHS20F30	CUHS20F40
Toshiba Package Name	SOD-323HE (US2H)	SOD-323HE (US2H)
V_RRM (Max) [V]
V_R (Max) [V]	30	40
C_T (Typ.) [pF]	380	300

搜索产品线

Schottky barrier diode (2)

器件型号	CUHS10F60	CUHS15F60	CUHS20F60	CUHS15S60	CUHS20S60
Toshiba Package Name	SOD-323HE (US2H)	SOD-323HE (US2H)	SOD-323HE (US2H)	SOD-323HE (US2H)	SOD-323HE (US2H)
V_RRM (Max) [V]
V_R (Max) [V]	60	60	60	60	60
C_T (Typ.) [pF]	130	130	300	130	290

搜索产品线

Zener diode (1)

器件型号	CSLZ5V6	CUHZ5V6	CSLZ6V2	CUHZ6V2	CRY62
Toshiba Package Name	SOD-962 (SL2)	SOD-323HE (US2H)	SOD-962 (SL2)	SOD-323HE (US2H)	S-FLAT
P_D (Max) [W]	0.15	1.2	0.15	1.2	0.7
V_Z (Typ.) [V]	5.6	5.6	6.2	6.2	6.2
