平板电脑设备

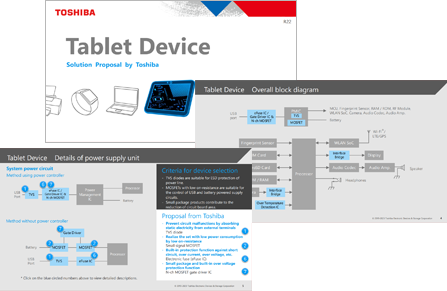

总方框图

平板电脑设备

单击总方框图中想要查看详细信息的区域。将显示我们建议的子方框图的链接。

系统电源电路

系统电源电路（用电源控制器的方法）

使用电源管理IC的电源控制电路示例

系统电源电路（无电源控制器的方法）

不使用电源管理IC的电源控制电路示例

音频单元电路

音频端子和音量开关的ESD保护电路示例

触摸传感器电路

触摸传感器电路（光学类型）

触摸传感器电路的ESD保护电路示例

触摸传感器电路（电容式）

触摸传感器电路的ESD保护电路示例

显示电路单元

与显示信号对应的接口电路示例

相机单元电路

相机模块的外围电路示例（电源和接口）

无线通信电路

Wi-Fi^Ⓡ和LTE通信模块的电源和ESD保护电路示例

过温监测电路

多点过温监测电路示例

子方框图

系统电源电路

系统电源电路（用电源控制器的方法）

使用电源管理IC的电源控制电路示例

Absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

器件型号	DF2B7ASL	DF2B5M4ASL	DF2B6M4ASL	DF2B6M4BSL
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)
V_ESD (Max) [kV]	+/-30	+/-16	+/-15	+/-8
I_R (Max) [µA]	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.2	0.7	0.7	1.05
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	8.5	0.15	0.15	0.12

搜索产品线

Electronic fuse (eFuse IC) can be used repeatedly to protect circuits from abnormal conditions such as overcurrent and overvoltage.

器件型号	TCKE800NA	TCKE805NA	TCKE812NA
Toshiba Package Name	WSON10B	WSON10B	WSON10B
V_IN (Max) [V]	18	18	18
R_ON (Typ.) [mΩ]	28	28	28
V_OVC (Typ.) [V]		6.04	15.1
Recovery Operation Type	Auto-retry	Auto-retry	Auto-retry

搜索产品线

Electronic fuse (eFuse IC) can be used repeatedly to protect circuits from abnormal conditions such as overcurrent and overvoltage.

器件型号	TCKE800NL	TCKE805NL	TCKE812NL	TCKE712BNL
Toshiba Package Name	WSON10B	WSON10B	WSON10B	WSON10
V_IN (Max) [V]	18	18	18	13.2
R_ON (Typ.) [mΩ]	28	28	28	53
V_OVC (Typ.) [V]		6.04	15.1
Recovery Operation Type	Latch	Latch	Latch	Latch

搜索产品线

It is N-ch MOSFET gate driver IC with Over Voltage Protection function. It contributes to reduction of power consumption and miniaturization of load switch circuit.

器件型号	TCK401G	TCK402G	TCK420G	TCK421G	TCK422G
Toshiba Package Name	WCSP6E	WCSP6E	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]			27.56	23.14	14.17
V_{OVL_RI} (Typ.) [V]			27.73	23.26	14.29
V_GS (Typ.) [V]	8.5	8.5	10	10	10

搜索产品线

It is N-ch MOSFET gate driver IC with Over Voltage Protection function. It contributes to reduction of power consumption and miniaturization of load switch circuit.

器件型号	TCK423G	TCK424G	TCK425G
Toshiba Package Name	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]	14.17	10.71	6.19
V_{OVL_RI} (Typ.) [V]	14.29	10.83	6.31
V_GS (Typ.) [V]	5.6	5.6	5.6

搜索产品线

This is low on-resistance MOSFET with small and thin package. It contributes to suppressing heat generation during charging and discharging, as well as to reducing the size of set.

器件型号	SSM14N956L	SSM10N954L	SSM6N951L	SSM10N961L
Toshiba Package Name	TCSPED-302701	TCSPAC-153001	TCSP6A-172101	TCSPAG-341501
V_DSS (Max) [V]
I_D (Max) [A]
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]
Polarity	N-ch×2	N-ch×2	N-ch×2	N-ch×2

搜索产品线

系统电源电路（无电源控制器的方法）

不使用电源管理IC的电源控制电路示例

Absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

器件型号	DF2B7ASL	DF2B5M4ASL	DF2B6M4ASL	DF2B6M4BSL
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)
V_ESD (Max) [kV]	+/-30	+/-16	+/-15	+/-8
I_R (Max) [µA]	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.2	0.7	0.7	1.05
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	8.5	0.15	0.15	0.12

搜索产品线

Suitable for power management and contributes to miniaturization.

器件型号	SSM6K513NU	SSM6N55NU	SSM6J507NU
Toshiba Package Name	SOT-1220 (UDFN6B)	SOT-1118 (UDFN6)	SOT-1220 (UDFN6B)
V_DSS (Max) [V]	30	30	-30
I_D (Max) [A]	15	4	-10
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 4.5 [V]	0.012	0.064	0.028
Polarity	N-ch	N-ch×2	P-ch

搜索产品线

Electronic fuse (eFuse IC) can be used repeatedly to protect circuits from abnormal conditions such as overcurrent and overvoltage.

器件型号	TCKE800NA	TCKE805NA	TCKE812NA
Toshiba Package Name	WSON10B	WSON10B	WSON10B
V_IN (Max) [V]	18	18	18
R_ON (Typ.) [mΩ]	28	28	28
V_OVC (Typ.) [V]		6.04	15.1
Recovery Operation Type	Auto-retry	Auto-retry	Auto-retry

搜索产品线

Electronic fuse (eFuse IC) can be used repeatedly to protect circuits from abnormal conditions such as overcurrent and overvoltage.

器件型号	TCKE800NL	TCKE805NL	TCKE812NL	TCKE712BNL
Toshiba Package Name	WSON10B	WSON10B	WSON10B	WSON10
V_IN (Max) [V]	18	18	18	13.2
R_ON (Typ.) [mΩ]	28	28	28	53
V_OVC (Typ.) [V]		6.04	15.1
Recovery Operation Type	Latch	Latch	Latch	Latch

搜索产品线

It is N-ch MOSFET gate driver IC with Over Voltage Protection function. It contributes to reduction of power consumption and miniaturization of load switch circuit.

器件型号	TCK401G	TCK402G	TCK420G	TCK421G	TCK422G
Toshiba Package Name	WCSP6E	WCSP6E	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]			27.56	23.14	14.17
V_{OVL_RI} (Typ.) [V]			27.73	23.26	14.29
V_GS (Typ.) [V]	8.5	8.5	10	10	10

搜索产品线

It is N-ch MOSFET gate driver IC with Over Voltage Protection function. It contributes to reduction of power consumption and miniaturization of load switch circuit.

器件型号	TCK423G	TCK424G	TCK425G
Toshiba Package Name	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]	14.17	10.71	6.19
V_{OVL_RI} (Typ.) [V]	14.29	10.83	6.31
V_GS (Typ.) [V]	5.6	5.6	5.6

搜索产品线

This is low on-resistance MOSFET with small and thin package. It contributes to suppressing heat generation during charging and discharging, as well as to reducing the size of set.

器件型号	SSM14N956L	SSM10N954L	SSM6N951L	SSM10N961L
Toshiba Package Name	TCSPED-302701	TCSPAC-153001	TCSP6A-172101	TCSPAG-341501
V_DSS (Max) [V]
I_D (Max) [A]
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]
Polarity	N-ch×2	N-ch×2	N-ch×2	N-ch×2

搜索产品线

音频单元电路

音频端子和音量开关的ESD保护电路示例

TVS diode

Absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

器件型号	DF2B7ASL	DF2B5M4ASL	DF2B6M4ASL	DF2B6M4BSL
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)
V_ESD (Max) [kV]	+/-30	+/-16	+/-15	+/-8
I_R (Max) [µA]	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.2	0.7	0.7	1.05
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	8.5	0.15	0.15	0.12

搜索产品线

触摸传感器电路

触摸传感器电路（光学类型）

触摸传感器电路的ESD保护电路示例

TVS diode

Absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

器件型号	DF2B7ASL	DF2B5M4ASL	DF2B6M4ASL	DF2B6M4BSL
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)
V_ESD (Max) [kV]	+/-30	+/-16	+/-15	+/-8
I_R (Max) [µA]	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.2	0.7	0.7	1.05
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	8.5	0.15	0.15	0.12

搜索产品线

触摸传感器电路（电容式）

触摸传感器电路的ESD保护电路示例

TVS diode

Absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

器件型号	DF2B7ASL	DF2B5M4ASL	DF2B6M4ASL	DF2B6M4BSL
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)
V_ESD (Max) [kV]	+/-30	+/-16	+/-15	+/-8
I_R (Max) [µA]	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.2	0.7	0.7	1.05
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	8.5	0.15	0.15	0.12

搜索产品线

显示电路单元

与显示信号对应的接口电路示例

Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)
Interface bridge
Schottky barrier diode
TVS diode

Wide lineup from general purpose type to small package type are provided. Contribute to realize a stable power supply not affected by fluctuation of battery.

器件型号	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to small package type are provided. Contribute to realize a stable power supply not affected by fluctuation of battery.

器件型号	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

Eliminating the interface gap between host and display/camera allows more options of component selection.

器件型号	TC358775XBG	TC358767AXBG	TC358860XBG	TC358746AXBG
Toshiba Package Name	P-VFBGA64-0606-0.65-001	P-VFBGA81-0505-0.50-001	P-TFBGA65-0505-0.50-001	P-VFBGA72-0404-0.40A3
Product Category	Display Interface Bridge	Display Interface Bridge	Display Interface Bridge	Camera Interface Bridge

搜索产品线

Can be applied to various applications which require high speed and low loss. And contribute to miniaturization.

器件型号	CUHS20F40	CTS05F40
Toshiba Package Name	SOD-323HE (US2H)	SOD-882 (CST2)
V_RRM (Max) [V]
V_R (Max) [V]	40	40
C_T (Typ.) [pF]	300	28

搜索产品线

Absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

器件型号	DF2B7ASL	DF2B5M4ASL	DF2B6M4ASL	DF2B6M4BSL
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)
V_ESD (Max) [kV]	+/-30	+/-16	+/-15	+/-8
I_R (Max) [µA]	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.2	0.7	0.7	1.05
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	8.5	0.15	0.15	0.12

搜索产品线

相机单元电路

相机模块的外围电路示例（电源和接口）

Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)
Interface bridge
TVS diode

Wide lineup from general purpose type to small package type are provided. Contribute to realize a stable power supply not affected by fluctuation of battery.

器件型号	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to small package type are provided. Contribute to realize a stable power supply not affected by fluctuation of battery.

器件型号	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

Eliminating the interface gap between host and display/camera allows more options of component selection.

器件型号	TC358775XBG	TC358767AXBG	TC358860XBG	TC358746AXBG
Toshiba Package Name	P-VFBGA64-0606-0.65-001	P-VFBGA81-0505-0.50-001	P-TFBGA65-0505-0.50-001	P-VFBGA72-0404-0.40A3
Product Category	Display Interface Bridge	Display Interface Bridge	Display Interface Bridge	Camera Interface Bridge

搜索产品线

Absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

器件型号	DF2B7ASL	DF2B5M4ASL	DF2B6M4ASL	DF2B6M4BSL
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)
V_ESD (Max) [kV]	+/-30	+/-16	+/-15	+/-8
I_R (Max) [µA]	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.2	0.7	0.7	1.05
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	8.5	0.15	0.15	0.12

搜索产品线

无线通信电路

Wi-Fi^Ⓡ和LTE通信模块的电源和ESD保护电路示例

Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)
TVS diode

Wide lineup from general purpose type to small package type are provided. Contribute to realize a stable power supply not affected by fluctuation of battery.

器件型号	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to small package type are provided. Contribute to realize a stable power supply not affected by fluctuation of battery.

器件型号	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

Absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

器件型号	DF2B7ASL	DF2B5M4ASL	DF2B6M4ASL	DF2B6M4BSL
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)
V_ESD (Max) [kV]	+/-30	+/-16	+/-15	+/-8
I_R (Max) [µA]	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.2	0.7	0.7	1.05
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	8.5	0.15	0.15	0.12

搜索产品线

过温监测电路

多点过温监测电路示例

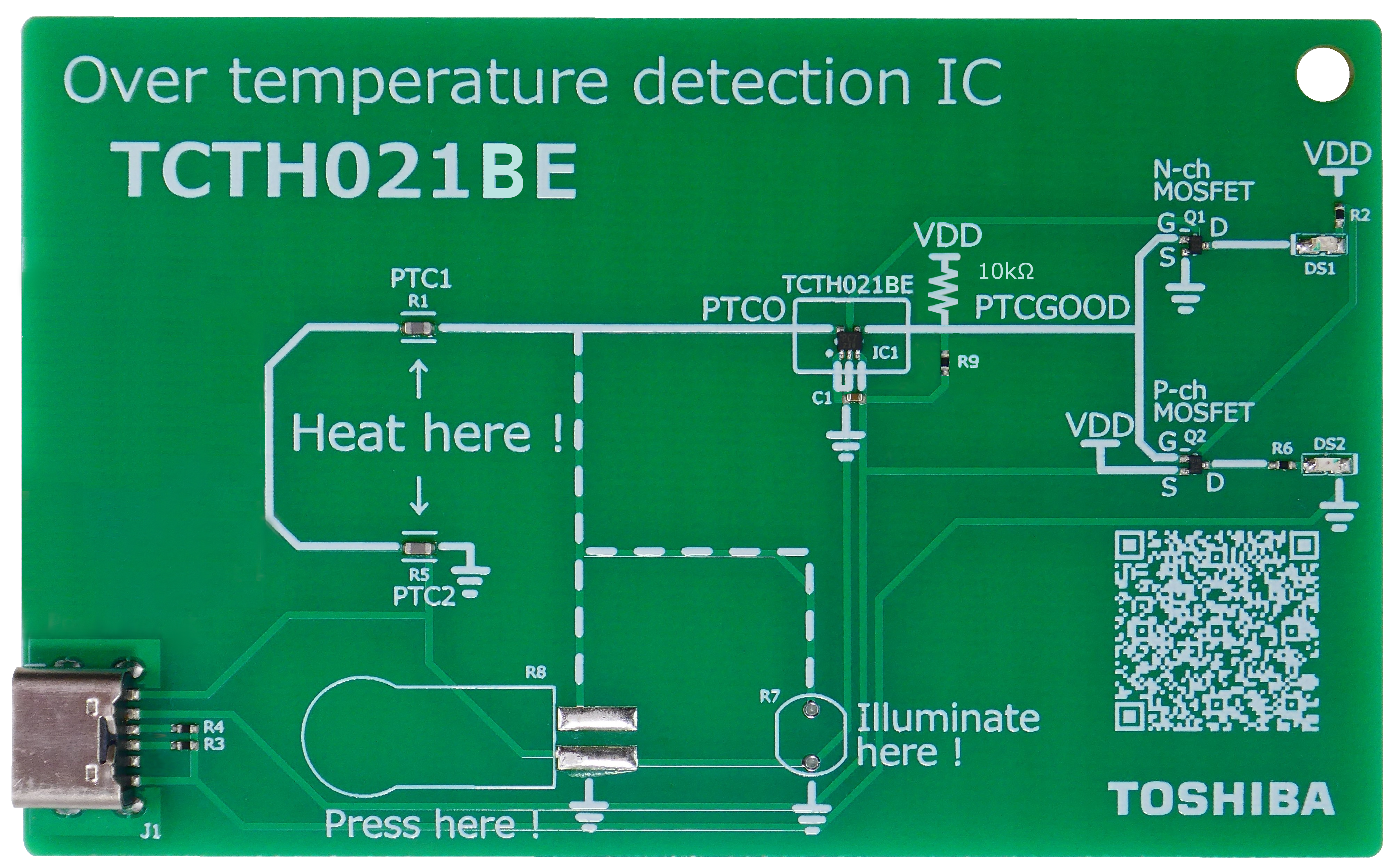

Over temperature detection IC (1)
Over temperature detection IC (2)

TCTH series can detect temperature rise at multiple points on the circuit board.

器件型号	TCTH011AE	TCTH012AE	TCTH021AE	TCTH022AE
Toshiba Package Name	SOT-553 (ESV)	SOT-553 (ESV)	SOT-553 (ESV)	SOT-553 (ESV)
V_DD (Min) [V]	1.7	1.7	1.7	1.7
V_DD (Max) [V]	5.5	5.5	5.5	5.5
I_DD (Typ.) [µA] @ T_j = 25 [°C]	1.8	1.8	11.3	11.3
I_PTCO (Typ.) [µA] @ T_j = 25 [°C]	1	1	10	10
FLAG Signal Output	Push-pull	Push-pull	Push-pull	Push-pull

搜索产品线

TCTH series can detect temperature rise at multiple points on the circuit board.

器件型号	TCTH011BE	TCTH012BE	TCTH021BE	TCTH022BE
Toshiba Package Name	SOT-553 (ESV)	SOT-553 (ESV)	SOT-553 (ESV)	SOT-553 (ESV)
V_DD (Min) [V]	1.7	1.7	1.7	1.7
V_DD (Max) [V]	5.5	5.5	5.5	5.5
I_DD (Typ.) [µA] @ T_j = 25 [°C]	1.8	1.8	11.3	11.3
I_PTCO (Typ.) [µA] @ T_j = 25 [°C]	1	1	10	10
FLAG Signal Output	Open drain	Open drain	Open drain	Open drain

搜索产品线

参考设计

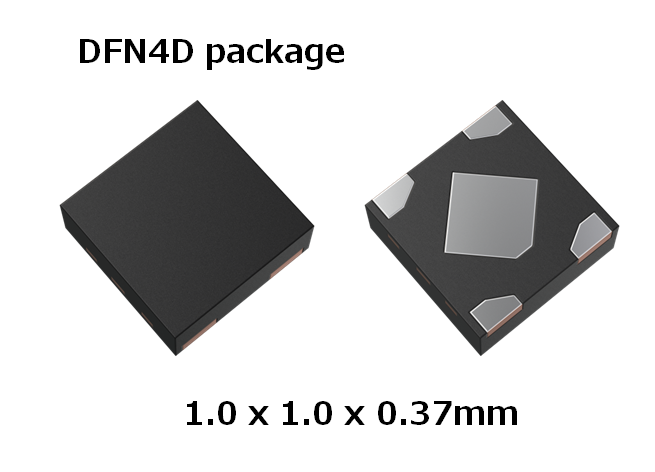

TCR3EMxxA／3DMxxA／3LMxxA系列LDO稳压器，具有300 mA输出，采用小型DNF4D封装，适用于电源电路应用

该产品线包括三个系列的小型封装LDO稳压器，这些产品因其特点（标准型、低压差型和低电流消耗型）而非常适合移动设备等。我们提供了每个系列的特点、设计要点和使用方法的描述。

详细信息

eFuse应用电路（带热关断功能）

该参考设计提供了构建在小型电路板上的eFuse IC应用电路（带热关断功能）的设计指南、数据和其他内容。该电路通过结合eFuse IC和Thermoflagger^TM（过温检测 IC）提供过温检测和保护。

详细信息

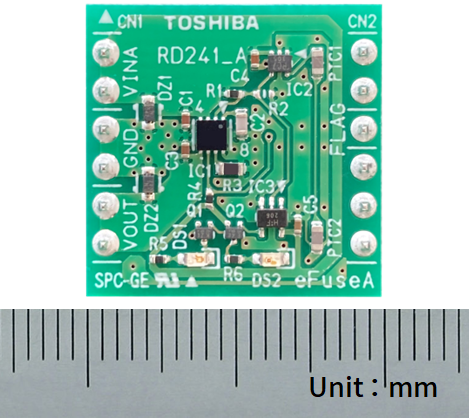

eFuse应用电路（具有增强过流保护功能）图片

该参考设计提供了构建在小型电路板上的eFuse IC应用电路（具有增强过流保护功能）的设计指南、数据和其他内容。
该电路通过将eFuse IC和用作过流检测器件的Thermoflagger^TM结合使用来提供精确的过流关断。

详细信息

使用共漏极MOSFET的电源多路复用器电路

此参考设计中，在一个小型印刷电路板（PCB）上实现了具有2个输入和1个输出的电源多路复用器电路。我们现已在已开发的电源多路复用器电路参考设计中增加了使用共漏极MOSFET的应用电路。该参考电路通过将东芝多种产品线中的MOSFET栅极驱动IC和齐纳二极管等器件进行理想组合，可以实现BBM和MBB模式的切换。

详细信息

过温检测IC Thermoflagger^TM的应用电路（TCTH021AE／推挽型）

该参考设计提供了过温检测IC Thermoflagger^TM应用电路（TCTH021AE／推挽型）的设计指南、数据和其他内容。与PTC热敏电阻结合使用，Thermoflagger^TM可用于检测设备内多个位置的过温。此参考设计还提供了Thermoflagger^TM其他应用电路的详细信息。

详细信息

过温检测IC Thermoflagger^TM的应用电路（TCTH021BE／开漏型）

该参考设计提供了过温检测IC Thermoflagger^TM应用电路（TCTH021BE／开漏型）的设计指南、数据和其他内容。与 PTC 热敏电阻结合使用，Thermoflagger^TM可用于检测设备内多个位置的过温。

详细信息

电源多路复用器电路

在此参考设计中，在一个小型印刷电路板（PCB）上实现了具有2个输入和1个输出的电源多路复用器电路。将从东芝的多种产品线选择的MOSFET栅极驱动电路IC、eFuse IC、齐纳二极管和小型封装MOSFET等器件进行组合，实现具有BBM和MBB开关的理想二极管。

详细信息

非隔离降压DC-DC转换器

此参考设计提供了多个非隔离降压DC-DC转换器电源的设计指南、数据和其他内容。多种电源针对各种输出、负载和电路板安装区域进行了优化。

详细信息

LDO稳压器TCR3UG系列在物联网设备电源中的应用

该参考设计提供了具有低功耗电流，PSRR和动态响应的文档。LDO具有小封装，低功耗和快速的负载瞬态响应。

详细信息

LDO稳压器TCR15AG（固定输出电压类型）应用&电路

介绍了TCR15AG（固定输出电压类型）的特性、电源电路的应用、设计参考文件、可以导入到EDA工具的电子文件、以及组成器件的概述

详细信息

LDO稳压器TCR15AGADJ应用&电路

该参考设计提供了有关PSRR、动态响应和控制输出电压的参考文档。LDO具有非常小的封装和可调输出，适合消费类应用。

详细信息

车身电子

xEV

车载信息娱乐系统

高级驾驶辅助系统（ADAS）

底盘

基础设施

建筑管理系统（BEMS）／健康管理系统（HEMS)

工厂自动化

商业设备

IoT设备

卫生保健

可穿戴设备

移动

电脑周边

家用电器

分立半导体

二极管

晶体管

通用逻辑IC

模拟器件

数字器件

无线器件

SiC功率器件

光耦

数字隔离器

固态隔离器

光纤传输模块

其他产品用IC

其他内容

总方框图

子方框图

解决方案

参考设计

文档

视频

设计与开发

联系我们

技术咨询
