IPM接口的光耦

该光耦支持5V和15V的电源电压，最适合用作IPM（智能功率模块）的绝缘接口。输出电路系列包括开路集电极电路和图腾极电路。另外，根据各公司IPM的输入电路，可以选择逆变器逻辑输出和缓冲器逻辑输出两种类型的图腾极电路元件，比如高电平有效和低电平有效。

产品线

You can narrow down the search for applicable products by selecting specifications.

Data transfer rate (Mbps)
Output Interface
VCC/VDD (Min) (V)
VCC/VDD (Max) (V)
BVS (Min) (Vrms)
Results:

You can narrow down your search for applicable products by package type or number of pins.

unit:
5pin SO6

Package Size

W : 3.7 mm 0.15 inch
L : 7.0 mm 0.28 inch
H : 2.1 mm 0.083 inch
SO6L

Package Size

W : 3.84 mm 0.15 inch
L : 10 mm 0.39 inch
H : 2.1 mm 0.083 inch
SO8

Package Size

W : 5.1 mm 0.20 inch
L : 6.0 mm 0.24 inch
H : 2.5 mm 0.098 inch
DIP8

Package Size

W : 9.66 mm 0.38 inch
L : 7.62 mm 0.30 inch
H : 3.65 mm 0.14 inch
DIP8(F type)

Package Size

W : 9.66 mm 0.38 inch
L : 10.16 mm 0.40 inch
H : 3.65 mm 0.14 inch

All package dimensions are guaranteed in millimeters as mentioned on datasheet. Package dimension in inches is round to 2 significant digits converted with 1mm=0.0393701inch.

请输入3个以上字符

About information presented in this cross reference

The information presented in this cross reference is based on TOSHIBA's selection criteria and should be treated as a suggestion only. Please carefully review the latest versions of all relevant information on the TOSHIBA products, including without limitation data sheets and validate all operating parameters of the TOSHIBA products to ensure that the suggested TOSHIBA products are truly compatible with your design and application.
Please note that this cross reference is based on TOSHIBA's estimate of compatibility with other manufacturers' products, based on other manufacturers' published data, at the time the data was collected.
TOSHIBA is not responsible for any incorrect or incomplete information. Information is subject to change at any time without notice.

技术文章

隔离器/固态继电器/光耦/IPM接口的光耦

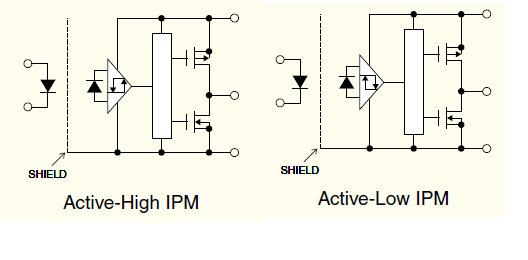

支持高电平有效和低电平有效IPM
我们的IPM接口用光耦符合高电平有效IPM的缓冲器输出（LED信号打开时输出信号为高电平）和低电平有效IPM的逆变器输出（LED信号打开时输出为低电平）。

隔离器／固态继电器／光耦／IPM接口的光耦

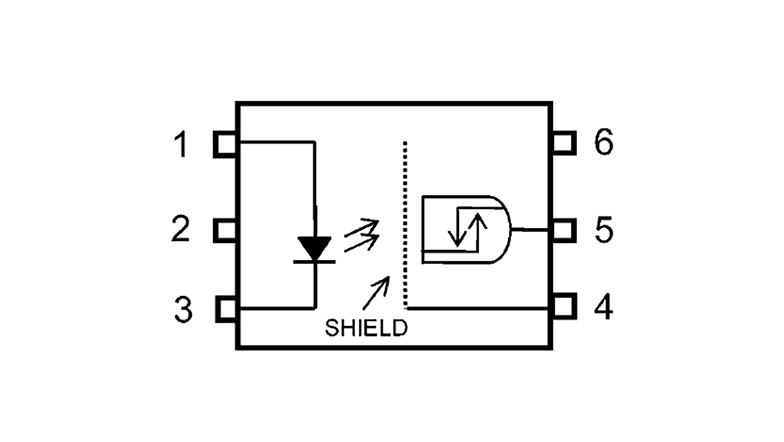

更高共模瞬态抑制（CMTI）
为了保证IPM切换时光耦的输入和输出之间即使采用较大的dV/dt也能稳定工作，光电IC芯片具有屏蔽层。

隔离器／固态继电器／光耦／IPM接口的光耦

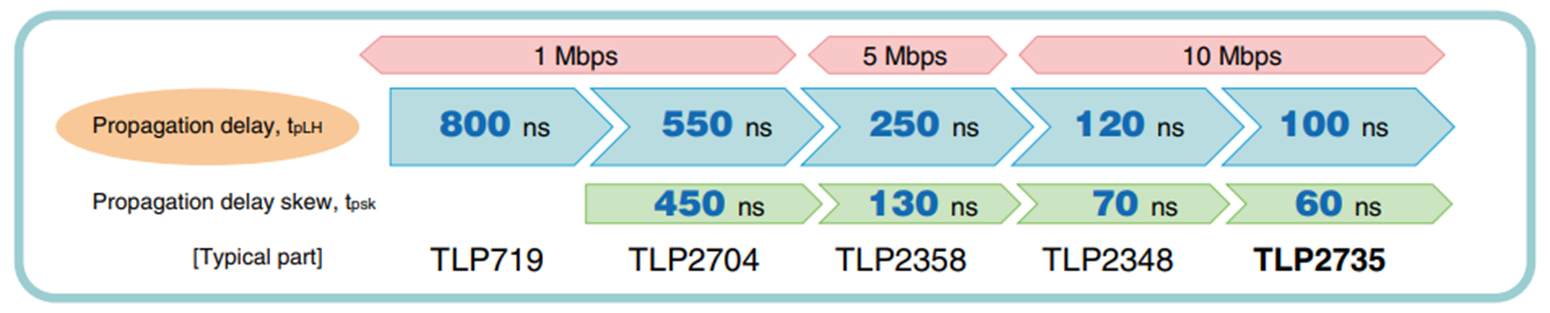

响应更高速
IPM接口的光耦将保证最大传输延迟时间，并能实现PWM信号的高速传输。

文档

名称 日期

应用

变频器／伺服
在设计变频器／伺服时，低功耗、小型化和稳定运行等非常重要。东芝提供适用于电源单元、电机驱动电路单元、信号传输单元等的各种半导体产品的信息以及电路配置示例。
详细信息
大型太阳能逆变器
在设计大型太阳能逆变器时，高效率和小型化等非常重要。东芝提供了适用于逆变器电路单元、栅极驱动电路单元、信号传输单元等的各种半导体产品的信息以及电路配置示例。
详细信息
