栅极驱动IC

栅极驱动IC包括3通道驱动器、电流检测放大器选项和多种接口(SPI/硬件)。

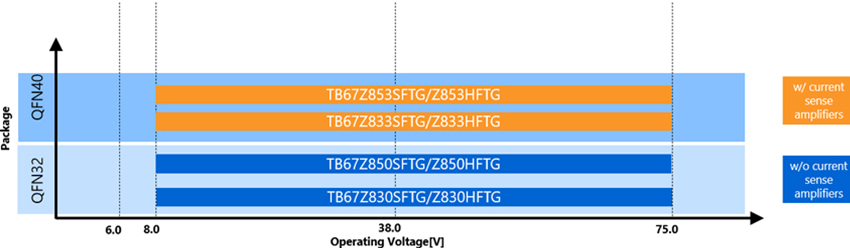

生产线

Gate Driver TB67Z853SFTG/Z853HFTG TB67Z833SFTG/Z833HFTG TB67Z850SFTG/Z850HFTG TB67Z830SFTG/Z830HFTG Gate Driver TB67Z853SFTG/Z853HFTG TB67Z833SFTG/Z833HFTG TB67Z850SFTG/Z850HFTG TB67Z830SFTG/Z830HFTG

参数搜索

栅极驱动IC 产品线

交叉检索

About information presented in this cross reference

The information presented in this cross reference is based on TOSHIBA's selection criteria and should be treated as a suggestion only. Please carefully review the latest versions of all relevant information on the TOSHIBA products, including without limitation data sheets and validate all operating parameters of the TOSHIBA products to ensure that the suggested TOSHIBA products are truly compatible with your design and application.Please note that this cross reference is based on TOSHIBA's estimate of compatibility with other manufacturers' products, based on other manufacturers' published data, at the time the data was collected.TOSHIBA is not responsible for any incorrect or incomplete information. Information is subject to change at any time without notice.

参考设计

电路板外观
无绳电动工具逆变器
三相无刷直流电机驱动电路结合了六个MOSFET(TPH1R204PB、TPH2R408QM)和一个栅极驱动器(TB67Z833SFTG),实现了紧凑而高效的电机控制。它支持各种输入模式。该参考设计提供设计指南、数据和其他内容。
