智能手表

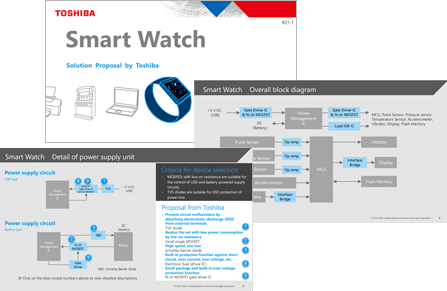

总方框图

智能手表

单击总方框图中想要查看详细信息的区域。将显示我们建议的子方框图的链接。

电源电路

电源电路（USB方式）

使用USB时的电源管理和ESD保护电路示例

Power supply circuit (USB type) (2)

Example of the power management and ESD protection circuit when USB is in use

电源电路（电池方式）

使用电池时的电源管理和防回流电路示例

摄像头输入电路

摄像头模块的外围电路示例（电源和接口）

显示输出电路

与显示信号对应的接口电路配置示例

振动器的电机控制

电机驱动电路及线圈再生电流保护电路示例

脉冲检测电路

脉冲检测电路（光检测侧）

用于检测光脉冲波传感器的光信号的电路示例

压力／温度传感器电路

气压传感器电路

使用电阻桥的气压传感器电路示例

温度传感器电路

使用NTC热敏电阻的温度传感器电路示例

子方框图

电源电路

电源电路（USB方式）

使用USB时的电源管理和ESD保护电路示例

TVS diode
N-ch MOSFET gate driver IC (1)
N-ch MOSFET gate driver IC (2)
N-ch common drain MOSFET

This absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

器件型号	DF2B6M4SL	DF2B6M4BSL	DF2B20M4SL	DF2B5BSL	DF2B5PCT	DF2B7PCT
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-882 (CST2)	SOD-882 (CST2)
V_ESD (Max) [kV]	+/-20	+/-8	+/-15	+/-23	+/-30	+/-30
I_R (Max) [µA]	0.1	0.1	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.5	1.05	0.2	0.2	0.1	0.1
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	0.2	0.12	0.2	11	41	45

搜索产品线

It is N-ch MOSFET gate driver IC with Over Voltage Protection function. It contributes to reduction of power consumption and miniaturization of load switch circuit.

器件型号	TCK401G	TCK402G	TCK420G	TCK421G	TCK422G
Toshiba Package Name	WCSP6E	WCSP6E	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]			27.56	23.14	14.17
V_{OVL_RI} (Typ.) [V]			27.73	23.26	14.29
V_GS (Typ.) [V]	8.5	8.5	10	10	10

搜索产品线

It is N-ch MOSFET gate driver IC with Over Voltage Protection function. It contributes to reduction of power consumption and miniaturization of load switch circuit.

器件型号	TCK423G	TCK424G	TCK425G
Toshiba Package Name	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]	14.17	10.71	6.19
V_{OVL_RI} (Typ.) [V]	14.29	10.83	6.31
V_GS (Typ.) [V]	5.6	5.6	5.6

搜索产品线

This is low on-resistance MOSFET with small and thin package. It contributes to suppressing heat generation during charging and discharging, as well as to reducing the size of set.

器件型号	SSM14N956L	SSM10N954L	SSM6N951L	SSM10N961L
Toshiba Package Name	TCSPED-302701	TCSPAC-153001	TCSP6A-172101	TCSPAG-341501
V_DSS (Max) [V]
I_D (Max) [A]
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]
Polarity	N-ch×2	N-ch×2	N-ch×2	N-ch×2

搜索产品线

Power supply circuit (USB type) (2)

Example of the power management and ESD protection circuit when USB is in use

Electronic fuse (eFuse IC) (1)
Electronic fuse (eFuse IC) (2)
Electronic fuse (eFuse IC) (3)
Electronic fuse (eFuse IC) (4)
Electronic fuse (eFuse IC) (5)

Electronic fuse (eFuse IC) can be used repeatedly to protect circuits from abnormal conditions such as overcurrent and overvoltage.

器件型号	TCKE800NA	TCKE805NA	TCKE812NA
Toshiba Package Name	WSON10B	WSON10B	WSON10B
V_IN (Max) [V]	18	18	18
R_ON (Typ.) [mΩ]	28	28	28
V_OVC (Typ.) [V]		6.04	15.1
Recovery Operation Type	Auto-retry	Auto-retry	Auto-retry

搜索产品线

Electronic fuse (eFuse IC) can be used repeatedly to protect circuits from abnormal conditions such as overcurrent and overvoltage.

器件型号	TCKE800NL	TCKE805NL	TCKE812NL	TCKE712BNL
Toshiba Package Name	WSON10B	WSON10B	WSON10B	WSON10
V_IN (Max) [V]	18	18	18	13.2
R_ON (Typ.) [mΩ]	28	28	28	53
V_OVC (Typ.) [V]		6.04	15.1
Recovery Operation Type	Latch	Latch	Latch	Latch

搜索产品线

Electronic fuse (eFuse IC) can be used repeatedly to protect circuits from abnormal conditions such as overcurrent and overvoltage.

器件型号	TCKE903NA	TCKE903QNA	TCKE905ANA	TCKE905QNA	TCKE912NA	TCKE920NA
Toshiba Package Name	WSON8	WSON8	WSON8	WSON8	WSON8	WSON8
V_IN (Max) [V]	23	23	23	23	23	23
R_ON (Typ.) [mΩ]	34	34	34	34	34	34
V_OVC (Typ.) [V]	3.87		5.7		13.7	22.2
Recovery Operation Type	Auto-retry	Auto-retry	Auto-retry	Auto-retry	Auto-retry	Auto-retry

搜索产品线

Electronic fuse (eFuse IC) can be used repeatedly to protect circuits from abnormal conditions such as overcurrent and overvoltage.

器件型号	TCKE903NL	TCKE905NL	TCKE912NL	TCKE920NL
Toshiba Package Name	WSON8	WSON8	WSON8	WSON8
V_IN (Max) [V]	23	23	23	23
R_ON (Typ.) [mΩ]	34	34	34	34
V_OVC (Typ.) [V]	3.87	5.7	13.7	22.2
Recovery Operation Type	Latch	Latch	Latch	Latch

搜索产品线

Electronic fuse (eFuse IC) can be used repeatedly to protect circuits from abnormal conditions such as overcurrent and overvoltage.

器件型号	TCKE601RA	TCKE601RL	TCKE602RM	TCKE603RA	TCKE603RL
Toshiba Package Name	TSOP6F	TSOP6F	TSOP6F	TSOP6F	TSOP6F
V_IN (Max) [V]	30	30	30	30	30
R_ON (Typ.) [mΩ]	52	52	52	52	52
V_OVC (Typ.) [V]	32	32	32	32	32
Recovery Operation Type	Auto-retry	Latch	Selection type	Auto-retry	Latch

搜索产品线

电源电路（电池方式）

使用电池时的电源管理和防回流电路示例

Small signal MOSFET
Schottky barrier diode
N-ch MOSFET gate driver IC (1)
N-ch MOSFET gate driver IC (2)
N-ch common drain MOSFET

Suitable for power management, contributes to miniaturization.

器件型号	SSM3J64CTC	SSM3K78CTC
Toshiba Package Name	CST3C	CST3C
V_DSS (Max) [V]	-12	20
I_D (Max) [A]	-1	0.25
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 2.5 [V]	0.56	1.6
Polarity	P-ch	N-ch

搜索产品线

Fast, low loss, small package and suitable for many applications.

器件型号	CTS05S30
Toshiba Package Name	SOD-882 (CST2)
V_RRM (Max) [V]
V_R (Max) [V]	20
C_T (Typ.) [pF]	55

搜索产品线

It is N-ch MOSFET gate driver IC with Over Voltage Protection function. It contributes to reduction of power consumption and miniaturization of load switch circuit.

器件型号	TCK401G	TCK402G	TCK420G	TCK421G	TCK422G
Toshiba Package Name	WCSP6E	WCSP6E	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]			27.56	23.14	14.17
V_{OVL_RI} (Typ.) [V]			27.73	23.26	14.29
V_GS (Typ.) [V]	8.5	8.5	10	10	10

搜索产品线

It is N-ch MOSFET gate driver IC with Over Voltage Protection function. It contributes to reduction of power consumption and miniaturization of load switch circuit.

器件型号	TCK423G	TCK424G	TCK425G
Toshiba Package Name	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]	14.17	10.71	6.19
V_{OVL_RI} (Typ.) [V]	14.29	10.83	6.31
V_GS (Typ.) [V]	5.6	5.6	5.6

搜索产品线

This is low on-resistance MOSFET with small and thin package. It contributes to suppressing heat generation during charging and discharging, as well as to reducing the size of set.

器件型号	SSM14N956L	SSM10N954L	SSM6N951L	SSM10N961L
Toshiba Package Name	TCSPED-302701	TCSPAC-153001	TCSP6A-172101	TCSPAG-341501
V_DSS (Max) [V]
I_D (Max) [A]
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]
Polarity	N-ch×2	N-ch×2	N-ch×2	N-ch×2

搜索产品线

摄像头输入电路

摄像头模块的外围电路示例（电源和接口）

Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)
Interface bridge

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

Eliminating the interface gap between host and display/camera allows more options of component selection.

器件型号	TC358774XBG	TC358767AXBG	TC358768AXBG	TC358746AXBG
Toshiba Package Name	P-VFBGA49-0505-0.65-001	P-VFBGA81-0505-0.50-001	P-VFBGA72-0404-0.40A3	P-VFBGA72-0404-0.40A3
Product Category	Display Interface Bridge	Display Interface Bridge	Display Interface Bridge	Camera Interface Bridge

搜索产品线

显示输出电路

与显示信号对应的接口电路配置示例

TVS diode
Interface bridge

This absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

器件型号	DF2B6M4SL	DF2B6M4BSL	DF2B20M4SL	DF2B5BSL	DF2B5PCT	DF2B7PCT
Toshiba Package Name	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-882 (CST2)	SOD-882 (CST2)
V_ESD (Max) [kV]	+/-20	+/-8	+/-15	+/-23	+/-30	+/-30
I_R (Max) [µA]	0.1	0.1	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.5	1.05	0.2	0.2	0.1	0.1
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	0.2	0.12	0.2	11	41	45

搜索产品线

Eliminating the interface gap between host and display/camera allows more options of component selection.

器件型号	TC358774XBG	TC358767AXBG	TC358768AXBG	TC358746AXBG
Toshiba Package Name	P-VFBGA49-0505-0.65-001	P-VFBGA81-0505-0.50-001	P-VFBGA72-0404-0.40A3	P-VFBGA72-0404-0.40A3
Product Category	Display Interface Bridge	Display Interface Bridge	Display Interface Bridge	Camera Interface Bridge

搜索产品线

振动器的电机控制

电机驱动电路及线圈再生电流保护电路示例

Small signal MOSFET
Schottky barrier diode

Suitable for power management, contributes to miniaturization.

器件型号	SSM3J64CTC	SSM3K78CTC
Toshiba Package Name	CST3C	CST3C
V_DSS (Max) [V]	-12	20
I_D (Max) [A]	-1.0	0.25
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 2.5 [V]	0.56	1.6
Polarity	P-ch	N-ch

搜索产品线

Fast, low loss, small package and suitable for many applications.

器件型号	CTS05S30
Toshiba Package Name	SOD-882 (CST2)
V_RRM (Max) [V]
V_R (Max) [V]	20
C_T (Typ.) [pF]	55

搜索产品线

脉冲检测电路

脉冲检测电路（光检测侧）

用于检测光脉冲波传感器的光信号的电路示例

Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)
Low current consumption op-amp / Low noise op-amp

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

The lineup includes a low current consumption type that contributes to reducing power consumption and a low noise type that brings out performance of the sensor.

器件型号	TC75S102F	TC75S67TU
Toshiba Package Name	SOT-25 (SMV)	SOT-353F (UFV)
V_CC (Max) [V]	5.5	5.5
V_CC, V_EE (Max) [V]	+/-2.75	+/-2.75

搜索产品线

压力／温度传感器电路

气压传感器电路

使用电阻桥的气压传感器电路示例

Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)
Low current consumption op-amp / Low noise op-amp

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

The lineup includes a low current consumption type that contributes to reducing power consumption and a low noise type that brings out performance of the sensor.

器件型号	TC75S102F	TC75S67TU
Toshiba Package Name	SOT-25 (SMV)	SOT-353F (UFV)
V_CC (Max) [V]	5.5	5.5
V_CC, V_EE (Max) [V]	+/-2.75	+/-2.75

搜索产品线

温度传感器电路

使用NTC热敏电阻的温度传感器电路示例

Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)
Low current consumption op-amp / Low noise op-amp

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

器件型号	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

The lineup includes a low current consumption type that contributes to reducing power consumption and a low noise type that brings out performance of the sensor.

器件型号	TC75S102F	TC75S67TU
Toshiba Package Name	SOT-25 (SMV)	SOT-353F (UFV)
V_CC (Max) [V]	5.5	5.5
V_CC, V_EE (Max) [V]	+/-2.75	+/-2.75

搜索产品线
