车载网络通信
随着机动车电动化、数字化的加速，车载网络通信的平台配置也在发生变化。东芝将为客户提供符合时代需求的车载网络通信器件。车载通信协议标准CXPI适用于方向盘开关、照明开关等车身系统应用网络，或区域ECU接口的高速响应。此外，多路通信的方式减少了线束量，有助于减轻车身自重。
什么是CXPI？
CXPI（时钟扩展外设接口）是车载通信协议国际标准（ISO 20794）。
该标准为下一代车载子网的建立提供了多路传输的车内通信方法，以减少HMI（人机接口）设备线束量，有助于减轻车身自重。
CXPI在指令和响应之间双向通信、大容量数据传输和高速响应方面优于LIN（局域互联网络）。
应用示例
- 方向盘开关
- 组合开关
- 照明开关
- 门锁、车门后视镜
- 电动座椅，座椅加热器
- 车身系统应用

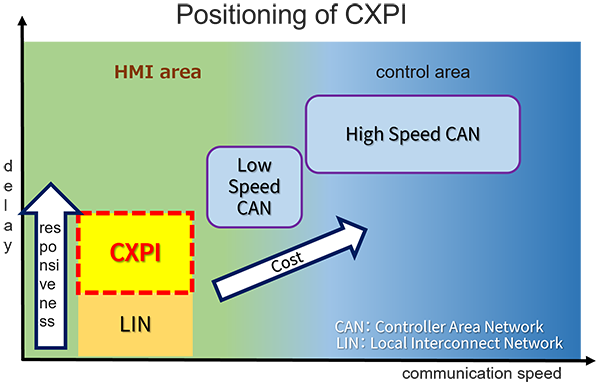

CXPI的定位和优势
LIN通信已广泛应用于传统的汽车车身应用中。不过，LIN通信采用从指令节点到响应节点的周期性传输和响应，因此很难应用于开关等需要响应速度的应用。然而，CXPI可以从指令节点或响应节点发送。
此外，与LIN相比，CXPI是一种可以一次性处理大量数据的协议，因此可以高效地发送和接收来自各种应用的数据。
产品线
| 产品型号 | 封装 | 功能 | 应用 | 特性 | 睡眠模式耗电 | 最大通信速度 | 电源 | 可靠性测试等级 |
|---|---|---|---|---|---|---|---|---|
| P-SOP8-0405-1.27-002 | 符合CXPI（车载通信协议标准）的物理层接口 | CXPI物理层接口适用于以下应用（驱动器接收器）
|
|
5 μA（典型值） | 20 kbps | BATT | AEC-Q100认证中 | |
| P-VQFN28-0606-0.65-003 | 符合CXPI标准的硬件逻辑接口IC（仅适用于应答节点） |
|
|
10 μA（典型值） | 20 kbps | BATT | AEC-Q100认证中 |
*TB9032FNG已通过由第三方进行的CXPI物理层测试（ISO20794-7［8物理层一致性测试计划（PMA－PS独立类型）］）*1）。
*1) Advanced Data Controls Corp.
