查找您下一个设计所需要的一切。只需选择一个应用,然后单击以查看框图,即可找到我们的半导体解决方案。

步进电机驱动IC

机电产品的机械子系统采用多个步进电机,它们需要消耗过大的电流以防失步,从而产生大量的热量。

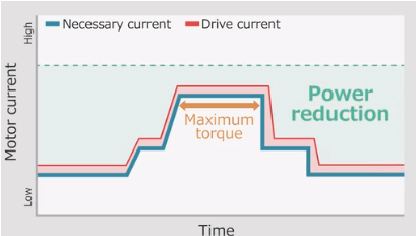

主动增益控制(AGC)采用一种简单的技术来解决这一问题,提高了产品的价值。

产品线

产品线

产品线:步进电机驱动IC

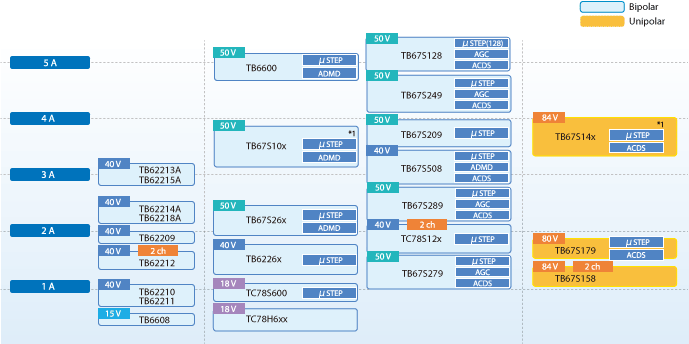

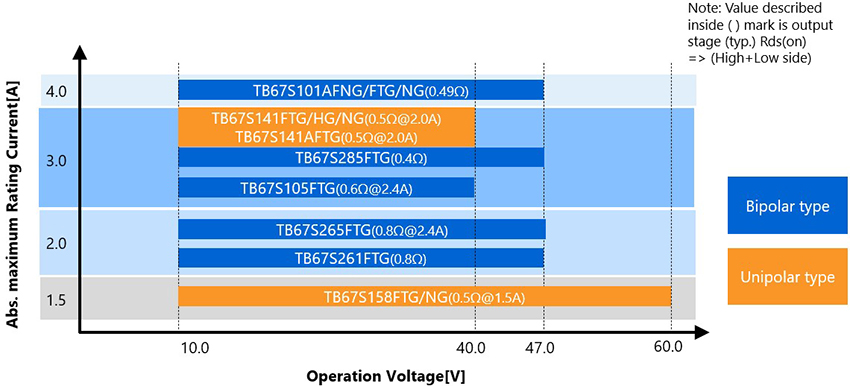

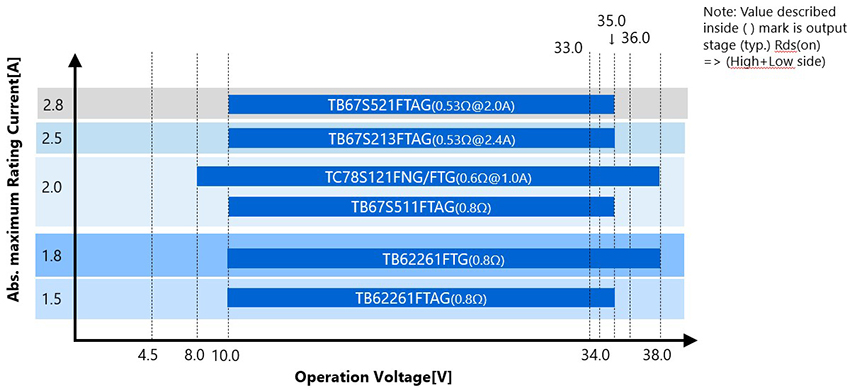

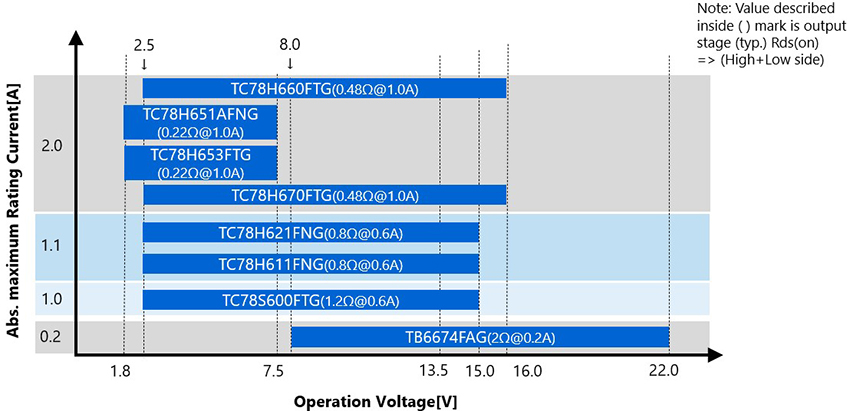

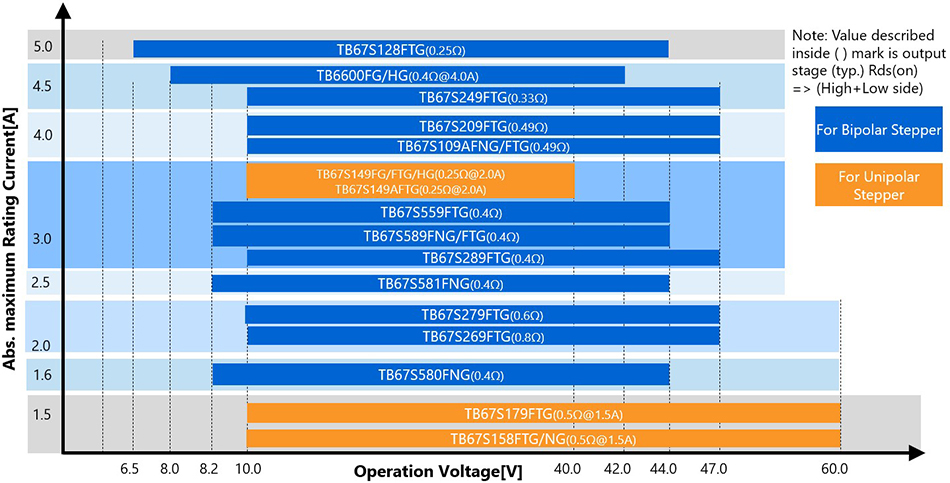

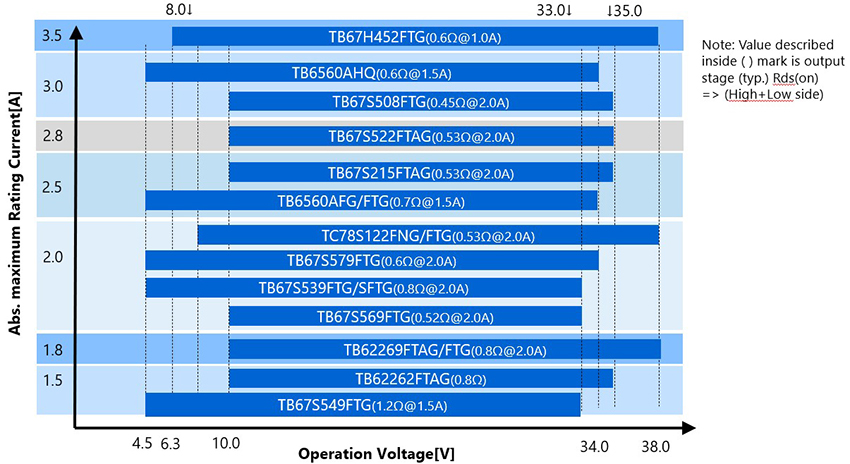

东芝提供采用BiCD工艺制造而成的丰富的步进电机驱动IC产品系列,能提供高精确度和大电流能力。东芝的步进电机驱动IC提供双极和单极结构。

*1 TB67S105和TB67S145不支持微步进。

参数搜索

步进电机驱动IC 产品线

交叉搜索

About information presented in this cross reference

The information presented in this cross reference is based on TOSHIBA's selection criteria and should be treated as a suggestion only. Please carefully review the latest versions of all relevant information on the TOSHIBA products, including without limitation data sheets and validate all operating parameters of the TOSHIBA products to ensure that the suggested TOSHIBA products are truly compatible with your design and application.
Please note that this cross reference is based on TOSHIBA's estimate of compatibility with other manufacturers' products, based on other manufacturers' published data, at the time the data was collected.
TOSHIBA is not responsible for any incorrect or incomplete information. Information is subject to change at any time without notice.

技术专辑

技术介绍视频

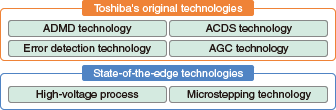

东芝原创技术

东芝步进电机驱动IC的特点

Extensive product lineup

丰富的产品线

Solutions for customers' needs and issues based on leading-edge technologies

用于解决客户需求和问题的基于先进技术的解决方案

异常检测技术

内置异常检测电路,例如低压(UVLO)、过流(ISD)和过热(TSD)。
有助于构建高度可靠的系统。 (注:内置的错误检测功能因产品而异。)

参考设计

东芝提供各种步进电机驱动IC,这些IC可利用AGC技术的巨大优势。适用具有时钟输入或相位输入的步进电机驱动IC。如需要使用采用了AGC技术的步进电机评估产品计划或设计,可以下载下列参考设计。



多通道步进电机驱动IC
该参考设计提供了多通道步进电机驱动IC的评估板的电路图、BOM和PCB数据(Gerber数据)等。

步进电机控制

2相单极步进电机驱动IC
该参考设计提供了2相单极步进电机驱动IC评估板的电路图、BOM和PCB数据(Gerber数据)等。

步进电机控制

2相双极步进电机驱动IC
该参考设计提供了2相单极步进电机驱动IC评估板的电路图、BOM和PCB数据(Gerber数据)等。

步进电机控制

相位/串行输入2相步进电机驱动IC
该参考设计提供了相位/串行输入2相步进电机驱动IC评估板的电路图、BOM和PCB数据(Gerber数据)等。

步进电机控制

直流和步进电机驱动IC
该参考设计提供了用于直流和步进电机驱动IC评估板的电路图、BOM和PCB数据(Gerber数据)等。

直流有刷电机驱动IC/步进电机控制

仿真器

下载PSpice®模型
