车载直流有刷电机驱动IC

在车载电机中,有刷电动机使用最多。东芝拥有各种H桥驱动IC,如面向HVAC消声器的集成了低Rds(on)功率MOSFET和LIN从属功能的驱动IC、面向引擎的可实现5A级优异散热性能的小型封装驱动IC、实现了功能安全的大电流预驱IC等 。东芝提供符合AEC-Q100标准的高可靠性电机驱动IC解决方案。

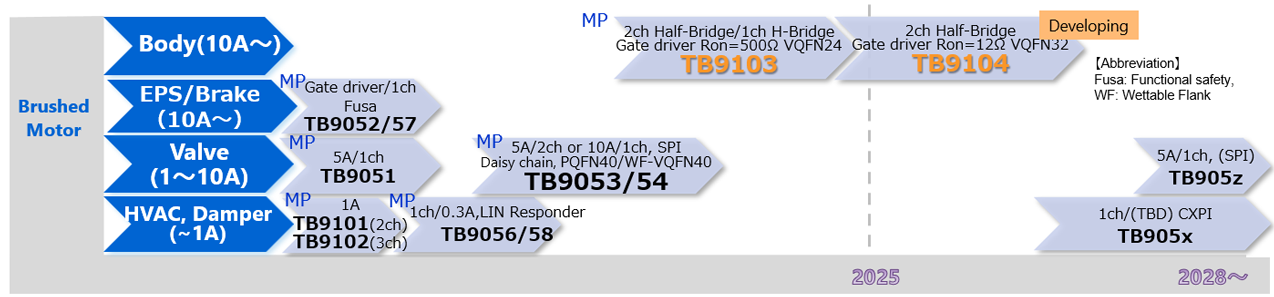

车载直流有刷电机驱动IC路线图

产品线

器件型号 封装 输出
电流
电源 推荐应用 特点和功能 相应等级
HTSSOP48-P-300-0.50 ±1.0A BATT EPS、电力制动器、安全带预紧器、汽车天窗、电动滑门、电动窗、电动座椅等 1通道H桥预驱动电路(外部N通道FET)内置电机电流检测电路 符合AEC-Q100
P-QFN28-0606-0.65-001 ±5.0A BATT 用于发动机节流阀和其它阀门的打开/关闭控制 1通道PWM H桥预驱动电路小封装,各种故障检测功能 符合AEC-Q100
SSOP24-P-300-0.65A ±0.3A BATT
(内置5V稳压器)
HVAC执行器控制 1通道H桥驱动电路LIN 1.3从属
LQFP48-P-0707-0.50C ±1.0A BATT EPS、电力制动器、安全带预紧器、汽车天窗、电动滑门、电动窗、电动座椅等 1通道H桥预驱动电路(外部N通道FET)
内置电机电流检测电路,内置电机旋转方向检测
符合AEC-Q100
SSOP24-P-300-0.65A ±0.3A BATT
(内置5V稳压器)
HVAC执行器控制 内置1通道H桥,作为从属IC与LIN 2.0主IC通信

符合AEC-Q100

SSOP24-P-300-0.65A ±1.0A BATT HVAC风门控制、车门后视镜角度控制等 2通道H桥驱动电路
DMOS功率晶体管的TA8083FG
符合AEC-Q100
SSOP24-P-300-0.65A ±1.0A BATT HVAC风门控制、车门后视镜角度控制等 6通道半桥驱动电路
SPI接口
符合AEC-Q100

路线图

技术专辑

应用

汽车散热器风扇
汽车电子主动悬架
汽车电动水泵
电动助力转向
车载HVAC

仿真器

下载PSpice®模型

产品 文件类型 PSpice下载 电机类型 输出电压(V) 输出电流(A) 特点 出版日期
TB9051 zip (36KB) 有刷直流 28
6
车载PWM型单通道H桥有刷直流电机驱动IC 2017/10/30
