不间断电源

不间断电源

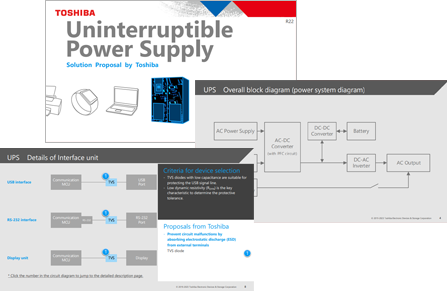

Such as low power consumption and miniaturization are important in designing uninterruptible power supply (UPS). Toshiba provides information on a wide range of semiconductor products suitable for power sullpy units, inverter/converter units, control units, signal transmission units, etc., along with circuit configuration examples.

总方框图

单击总方框图中想要查看详细信息的区域。将显示我们建议的子方框图的链接。

 Gate Driver GateDriver Gate Driver GateDriver Gate Driver GateDriver Gate Driver GateDriver Gate Driver GateDriver Gate Driver GateDriver ISO AMP ISOAMP ISO AMP ISOAMP IB-LS IB-LS IB-HS IB-HS VB-SENSE VB-SENSE Gate Driver GateDriver ISO AMP ISOAMP Main MCU Main MCU Isolation Isolation Communication MCU CommunicationMCU Display Display USB USB CAN CAN RS-232C RS-232C RS-422/485 RS-422/485 30 to 60 V 30 to 60 V 300 to 400 V 300 to 400 V Gate Driver GateDriver Gate Driver GateDriver MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET Voltage and current detection signal transmission line Control signal transmission line Power supply to main MCU DC-DC converter and control circuit Communication signal transmission line Power supply to communication MCU Display unit USB interface RS-232 interface
USB接口

USB信号线的ESD保护电路示例

RS-232接口

RS-232C信号线路的ESD保护电路示例

显示单元

显示信号线路的ESD保护电路示例

MCU与转换器之间的控制信号传输线

MCU和DC-DC之间的信号传输电路示例

MCU之间的通信信号传输线

MCU数字信号传输电路示例

电压电流检测信号传输线

电源线路与模拟前端之间的信号传输电路示例

DC-DC转换器和控制电路

控制MCU和电源DC-DC转换器之间的信号传输电路示例

模拟前端电源

模拟前端电源电路示例

主MCU电源

主MCU电源电路示例

通信MCU电源

通信MCU的电源电路示例

单击总方框图中想要查看详细信息的区域。将显示我们建议的子方框图的链接。

 PFC Controller PFCController Main MCU MainMCU AC Input AC Input DC Output 300 to 400 V DC Output300 to 400 V MOSFET MOSFET AC-DC converter (with PFC circuit) and control circuit Power supply to main MCU
AC-DC转换器(带PFC电路)及控制电路

使用PFC转换器的功率因数改善电路示例

主MCU电源

主MCU电源电路示例

单击总方框图中想要查看详细信息的区域。将显示我们建议的子方框图的链接。

 Gate Driver GateDriver Gate Driver GateDriver Gate Driver GateDriver Gate Driver GateDriver Main MCU MainMCU AC Output AC Output C C DC Input 300 to 400 V DC Input300 to 400 V MOS FET MOSFET MOS FET MOSFET MOS FET MOSFET MOS FET MOSFET Power supply to main MCU DC-AC inverter and control circuit
DC-AC逆变器及控制电路

控制MCU和输出DC-DC转换器之间的信号传输电路示例

主MCU电源

主MCU电源电路示例

子方框图

USB接口
USB接口

USB信号线的ESD保护电路示例

USB信号线的ESD保护电路示例
TVS diode
器件型号
Toshiba Package Name SL2 SL2 SL2
VESD (Max) [kV] +/-30 +/-20 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.2 0.5 0.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 8.5 0.2 0.2
RS-232接口
RS-232接口

RS-232C信号线路的ESD保护电路示例

RS-232C信号线路的ESD保护电路示例
TVS diode
器件型号
Toshiba Package Name SL2 SL2 SL2
VESD (Max) [kV] +/-30 +/-20 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.2 0.5 0.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 8.5 0.2 0.2
显示单元
显示单元

显示信号线路的ESD保护电路示例

显示信号线路的ESD保护电路示例
TVS diode
器件型号
Toshiba Package Name SL2 SL2 SL2
VESD (Max) [kV] +/-30 +/-20 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.2 0.5 0.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 8.5 0.2 0.2
MCU与转换器之间的控制信号传输线
MCU与转换器之间的控制信号传输线

MCU和DC-DC之间的信号传输电路示例

MCU和DC-DC之间的信号传输电路示例
Gate driver photocoupler
器件型号
Toshiba Package Name SO16L SO16L SO16L SO16L SO6L SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000 5000 5000 5000
VCC / VDD (Min) [V] 15 15 15 15 15 15
VCC / VDD (Max) [V] 30 30 30 23.5 30 30
ICC / IDD (Max) [mA] 3.8 5 5 10.2 3 3
Output Interface totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF)
MCU之间的通信信号传输线
MCU之间的通信信号传输线

MCU数字信号传输电路示例

MCU数字信号传输电路示例
Photocoupler for high speed communication
器件型号
Toshiba Package Name SO6L SO6L SO6L SO8L(LF4) SO8L(LF4) SO8L(LF4)
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000 5000 5000 5000
VCC / VDD (Min) [V] 2.7 2.7 2.7 2.7 2.7 2.7
VCC / VDD (Max) [V] 5.5 5.5 5.5 5.5 5.5 5.5
ICC / IDD (Max) [mA] 0.3 1 0.4 0.6 2 0.8
Output Interface totem-pole(BUF) totem-pole(INV) totem-pole(BUF) totem-pole(BUF) totem-pole(INV) totem-pole(BUF)
电压电流检测信号传输线
电压电流检测信号传输线

电源线路与模拟前端之间的信号传输电路示例

电源线路与模拟前端之间的信号传输电路示例
Isolation amplifier
器件型号
Toshiba Package Name SO8L(LF4) SO8L(LF4)
Output Interface Analog output Digital output
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000
VDD1 (Max) [V] 5.5 5.5
VDD2 (Max) [V] 5.5 5.5
IDD1 (Max) [mA] @ VIN+ = 0 [V] 12 12
IDD2 (Max) [mA] @ VIN+ = 0 [V] 10 8
DC-DC转换器和控制电路
DC-DC转换器和控制电路

控制MCU和电源DC-DC转换器之间的信号传输电路示例

控制MCU和电源DC-DC转换器之间的信号传输电路示例
DTMOS Series MOSFET(1)
器件型号
Toshiba Package Name TO-220SIS TO-220SIS TO-220SIS TO-220SIS
VDSS (Max) [V] 600 600 650 650
ID (Max) [A] 25 15.8 24 15
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.125 0.23 0.11 0.19
Polarity N-ch N-ch N-ch N-ch
DTMOS Series MOSFET(2)
器件型号
Toshiba Package Name TOLL TOLL
VDSS (Max) [V] 650 650
ID (Max) [A] 24 15
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.11 0.19
Polarity N-ch N-ch
SiC MOSFET
器件型号
Toshiba Package Name TO-247 TO-247 TO-247-4L(X) TO-247-4L(X)
VDSS (Max) [V] 650 1200 650 1200
ID (Max) [A] 100 100 100 100
RDS(ON) (Max) [Ω] @ |VGS| = 18.0 [V] 0.021 0.02 0.022 0.021
Polarity N-ch N-ch N-ch N-ch
U-MOS Series MOSFET(1)
器件型号
Toshiba Package Name TSON Advance SOP Advance(N) SOP Advance SOP Advance / SOP Advance(N) TO-220SIS
VDSS (Max) [V] 80 80 80 150 80
ID (Max) [A] 34 86 120 64 100
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.019 0.004 0.00243 0.009 0.00244
Polarity N-ch N-ch N-ch N-ch N-ch
U-MOS Series MOSFET(2)
器件型号
Toshiba Package Name TO-220 TO-220
VDSS (Max) [V] 80 100
ID (Max) [A] 120 207
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00244 0.0034
Polarity N-ch N-ch
Gate driver photocoupler
器件型号
Toshiba Package Name SO16L SO16L SO16L SO16L SO6L SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000 5000 5000 5000
VCC / VDD (Min) [V] 15 15 15 15 15 15
VCC / VDD (Max) [V] 30 30 30 23.5 30 30
ICC / IDD (Max) [mA] 3.8 5 5 10.2 3 3
Output Interface totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF)
模拟前端电源
模拟前端电源

模拟前端电源电路示例

模拟前端电源电路示例
Small surface mount LDO regulator(1)
器件型号
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
Small surface mount LDO regulator(2)
器件型号
Toshiba Package Name WCSP4F DFN4C WCSP4F ESV SMV
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
主MCU电源
主MCU电源

主MCU电源电路示例

主MCU电源电路示例
Small surface mount LDO regulator(1)
器件型号
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
Small surface mount LDO regulator(2)
器件型号
Toshiba Package Name WCSP4F DFN4C WCSP4F ESV SMV
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
通信MCU电源
通信MCU电源

通信MCU的电源电路示例

通信MCU的电源电路示例
Small surface mount LDO regulator(1)
器件型号
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
Small surface mount LDO regulator(2)
器件型号
Toshiba Package Name WCSP4F DFN4C WCSP4F ESV SMV
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0

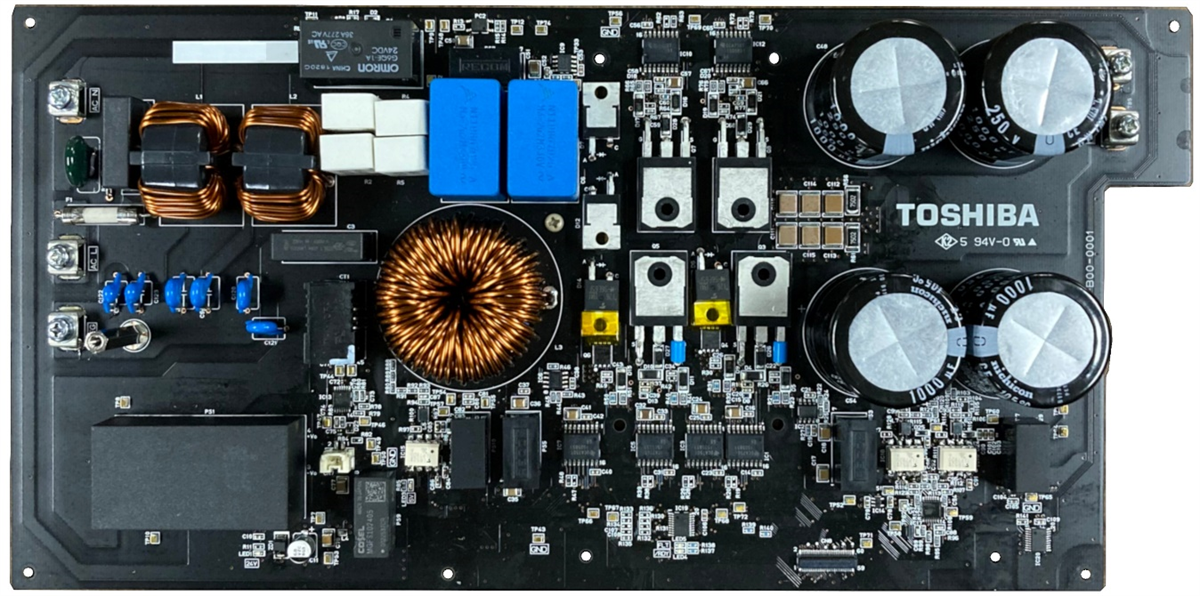

AC-DC转换器(带PFC电路)及控制电路
AC-DC转换器(带PFC电路)及控制电路

使用PFC转换器的功率因数改善电路示例

使用PFC转换器的功率因数改善电路示例
DTMOS Series MOSFET(1)
器件型号
Toshiba Package Name TO-220SIS TO-220SIS TO-220SIS TO-220SIS
VDSS (Max) [V] 600 600 650 650
ID (Max) [A] 25 15.8 24 15
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.125 0.23 0.11 0.19
Polarity N-ch N-ch N-ch N-ch
DTMOS Series MOSFET(2)
器件型号
Toshiba Package Name TOLL TOLL
VDSS (Max) [V] 650 650
ID (Max) [A] 24 15
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.11 0.19
Polarity N-ch N-ch
SiC MOSFET
器件型号
Toshiba Package Name TO-247 TO-247 TO-247-4L(X) TO-247-4L(X)
VDSS (Max) [V] 650 1200 650 1200
ID (Max) [A] 100 100 100 100
RDS(ON) (Max) [Ω] @ |VGS| = 18.0 [V] 0.021 0.02 0.022 0.021
Polarity N-ch N-ch N-ch N-ch
SiC Schottky barrier diode
器件型号
Toshiba Package Name TO-220F-2L TO-247 TO-220-2L TO-220-2L DFN 8x8 DFN 8x8
IF(DC) (Max) [A] 12 24 2 12 4 12
VRRM (Max) [V] 650 650 650 650 650 650
VF (Max) [V] 1.6 1.6 1.35 1.35 1.35 1.35
IR (Max) [µA] @ VRRM (Max) 60 60 40 120 55 120
Gate driver photocoupler
器件型号
Toshiba Package Name SO16L SO16L SO16L SO16L SO6L SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000 5000 5000 5000
VCC / VDD (Min) [V] 15 15 15 15 15 15
VCC / VDD (Max) [V] 30 30 30 23.5 30 30
ICC / IDD (Max) [mA] 3.8 5 5 10.2 3 3
Output Interface totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF)
主MCU电源
主MCU电源

主MCU电源电路示例

主MCU电源电路示例
Small surface mount LDO regulator(1)
器件型号
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
Small surface mount LDO regulator(2)
器件型号
Toshiba Package Name WCSP4F DFN4C WCSP4F ESV SMV
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0

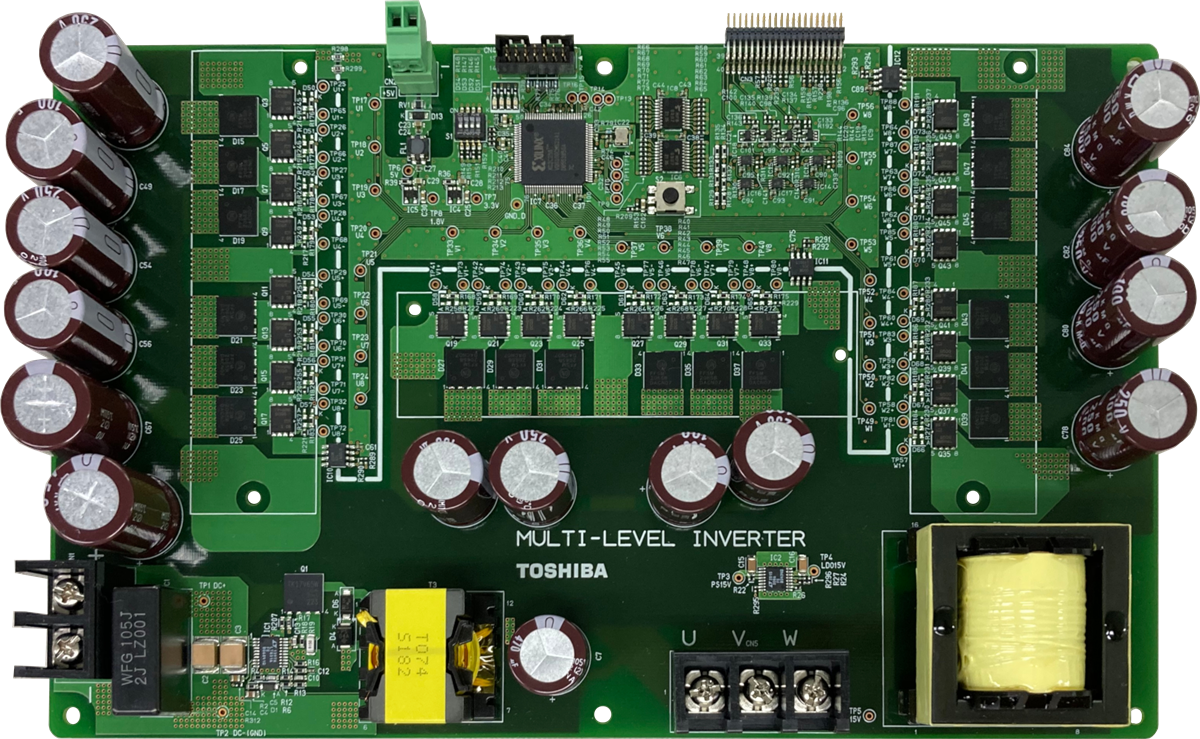

DC-AC逆变器及控制电路
DC-AC逆变器及控制电路

控制MCU和输出DC-DC转换器之间的信号传输电路示例

控制MCU和输出DC-DC转换器之间的信号传输电路示例
DTMOS Series MOSFET(1)
器件型号
Toshiba Package Name TO-220SIS TO-220SIS TO-220SIS TO-220SIS
VDSS (Max) [V] 600 600 650 650
ID (Max) [A] 25 15.8 24 15
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.125 0.23 0.11 0.19
Polarity N-ch N-ch N-ch N-ch
DTMOS Series MOSFET(2)
器件型号
Toshiba Package Name TOLL TOLL
VDSS (Max) [V] 650 650
ID (Max) [A] 24 15
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.11 0.19
Polarity N-ch N-ch
SiC MOSFET
器件型号
Toshiba Package Name TO-247 TO-247 TO-247-4L(X) TO-247-4L(X)
VDSS (Max) [V] 650 1200 650 1200
ID (Max) [A] 100 100 100 100
RDS(ON) (Max) [Ω] @ |VGS| = 18.0 [V] 0.021 0.02 0.022 0.021
Polarity N-ch N-ch N-ch N-ch
Gate driver photocoupler
器件型号
Toshiba Package Name SO16L SO16L SO16L SO16L SO6L SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000 5000 5000 5000
VCC / VDD (Min) [V] 15 15 15 15 15 15
VCC / VDD (Max) [V] 30 30 30 23.5 30 30
ICC / IDD (Max) [mA] 3.8 5 5 10.2 3 3
Output Interface totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF)
主MCU电源
主MCU电源

主MCU电源电路示例

主MCU电源电路示例
Small surface mount LDO regulator(1)
器件型号
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
Small surface mount LDO regulator(2)
器件型号
Toshiba Package Name WCSP4F DFN4C WCSP4F ESV SMV
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
