车载无线通信IC
东芝车载通信IC适用于电子收费系统（ETC）、远程无钥匙进入系统（RKE）以及轮胎压监测系统（TPMS）等车载设备和路边设备。
产品线
| 器件型号 | 工作频率 |
特性 |
工作电压范围 | 工作温度范围 | 封装 |
|---|---|---|---|---|---|

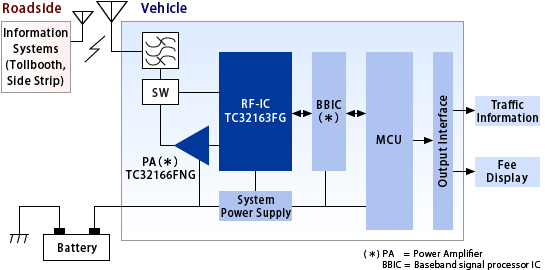

| ETC/ETC2.0射频收发器IC： TC32163FG |
5.8GHz ISM频段 |
用于车载单元和路侧单元 | 2.7V至3.6V | -40至85°C | QFP48 （0.5mm引线间距） |
| 5.8GHz频段功率放大器（PA）： TC32166FNG |
5.8GHz ISM频段 |
用于路侧单元 | 3.0V至3.6V | -40至85°C | SSOP10-pin （0.65mm引线间距） |
| 用于中国ETC系统的射频IC： TC32169FTG **（GR2.EL） |
5.8GHz ISM频段 |
内置MODEM 符合AECQ-100 标准** |
1.8V至3.6V | -40至85°C -40至105°C** |
VQFN32 （0.5mm引线间距） |

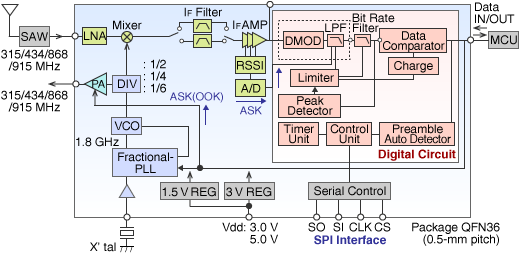

| 遥控器收发器IC： TC32306FTG |
315MHz至920MHz频段 | 高接收灵敏度 | 2.0V至5.5V | -40至85°C | VQFN36 （0.5mm引线间距） |
推荐产品
技术专题

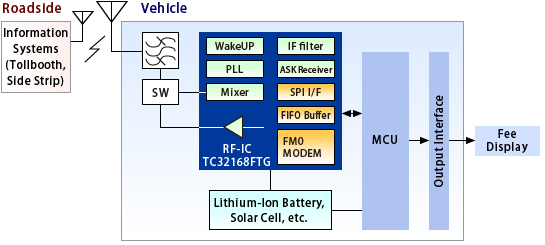

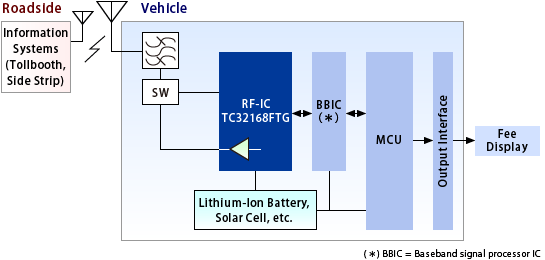

- 适用于ETCOBU的小件封装。适用于电池操作的弱电流和低电压运行。
- 集成了符合中国ETC标准的调制解调器和先进先出（FIFO）缓冲区，因此无需使用微控制器进行实时处理。
