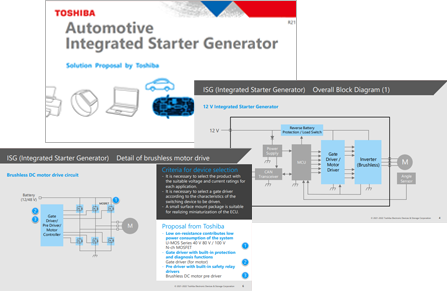

汽车集成式起动发电机（ISG）

总方框图

12V集成式起动发电机
48V集成式启动发电机

单击总方框图中想要查看详细信息的区域。将显示我们建议的子方框图的链接。

直流无刷电机驱动电路

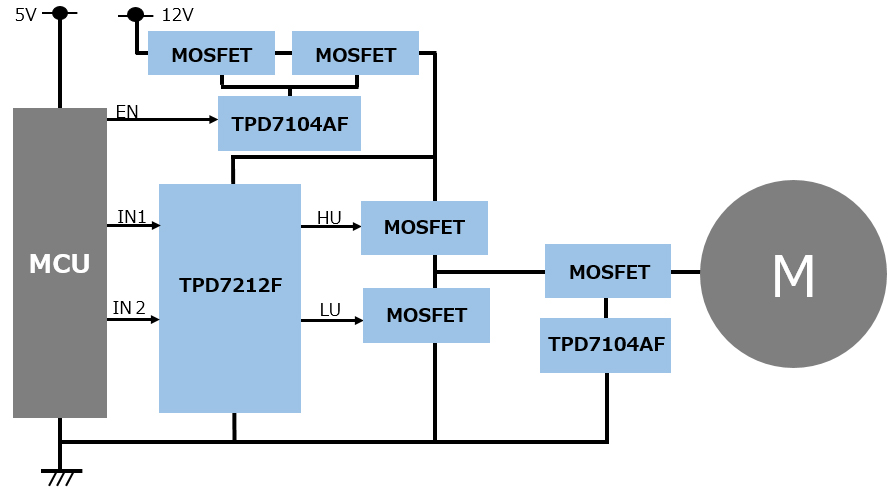

ISG直流无刷电机驱动电路示例

CAN收发器保护电路

电源开／关控制及反接保护电路

12V电源线开关控制及反接保护电路示例

单击总方框图中想要查看详细信息的区域。将显示我们建议的子方框图的链接。

直流无刷电机驱动电路

ISG直流无刷电机驱动电路示例

CAN收发器保护电路

子方框图

直流无刷电机驱动电路

ISG直流无刷电机驱动电路示例

U-MOS Series 40 V / 80 V / 100 V N-ch MOSFET
Gate driver (for motor)
Brushless DC motor pre driver

U-MOS Series 40 V / 80 V / 100 V N-ch MOSFET

器件型号	XPQ1R004PB	XPQR3004PB	XPQR8308QB	XPQ1R00AQB
Toshiba Package Name	L-TOGL	L-TOGL	L-TOGL	L-TOGL
V_DSS (Max) [V]	40	40	80	100
I_D (Max) [A]	200	400	350	300
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.001	0.0003	0.00083	0.00103
Polarity	N-ch	N-ch	N-ch	N-ch

搜索产品线

Gate driver (for motor)

器件型号	TPD7212F	TPD7212FN
Toshiba Package name	WQFN32	SSOP30
V_BB (Max) [V]
V_CC (Max) [V]
I_O (Max) [A]	-1.5	-1.5

搜索产品线

Brushless DC motor pre driver

器件型号	TB9081FG	TB9083FTG
Toshiba Package Name	QFP64-P-1010-0.50C	P-VQFN48-0707-0.50-005
Product Category	Pre-driver for automobile	Pre-driver for automobile

搜索产品线

CAN收发器保护电路

TVS diode (for CAN communication)
General purpose small signal MOSFET
General purpose small signal bipolar transistor
Small signal bias resistor built-in transistor (BRT)

TVS diode (for CAN communication)

器件型号	DF3D18FU	DF3D29FU	DF3D36FU
Toshiba Package Name	SOT-323 (USM)	SOT-323 (USM)	SOT-323 (USM)
V_ESD (Max) [kV]	+/-30	+/-25	+/-20
I_R (Max) [µA]	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.8	1.1	1.5
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	9	9	6.5

搜索产品线

General purpose small signal MOSFET

器件型号	SSM3K7002KF	SSM3J168F	SSM3J66MFV
Toshiba Package Name	SOT-346 (S-Mini)	SOT-346 (S-Mini)	SOT-723 (VESM)
V_DSS (Max) [V]	60	-60	-20
I_D (Max) [A]	0.4	-0.4	-0.8
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 4.5 [V]	1.75	1.9	0.39
Polarity	N-ch	P-ch	P-ch

搜索产品线

General purpose small signal bipolar transistor

器件型号	2SA1832	2SC4738	2SC4116	2SA1586	2SC2712	2SA1162
Toshiba Package Name	SOT-416 (SSM)	SOT-416 (SSM)	SOT-323 (USM)	SOT-323 (USM)	SOT-346 (S-Mini)	SOT-346 (S-Mini)
V_CEO (Max) [V]	-50	50	50	-50	50	-50
I_C (Max) [A]	-0.15	0.15	0.15	-0.15	0.15	-0.15
Polarity	PNP	NPN	NPN	PNP	NPN	PNP

搜索产品线

Small signal bias resistor built-in transistor (BRT)

器件型号	RN1907FE	RN2907FE	RN1901	RN2901
Toshiba Package Name	SOT-563 (ES6)	SOT-563 (ES6)	SOT-363 (US6)	SOT-363 (US6)
V_CEO (Q1) (Max) [V]	50	-50	50	-50
V_CEO (Q2) (Max) [V]	50	-50	50	-50
I_C (Q1) (Max) [A]	0.1	-0.1	0.1	-0.1
I_C (Q2) (Max) [A]	0.1	-0.1	0.1	-0.1
Polarity (Q1)	NPN	PNP	NPN	PNP
Polarity (Q2)	NPN	PNP	NPN	PNP

搜索产品线

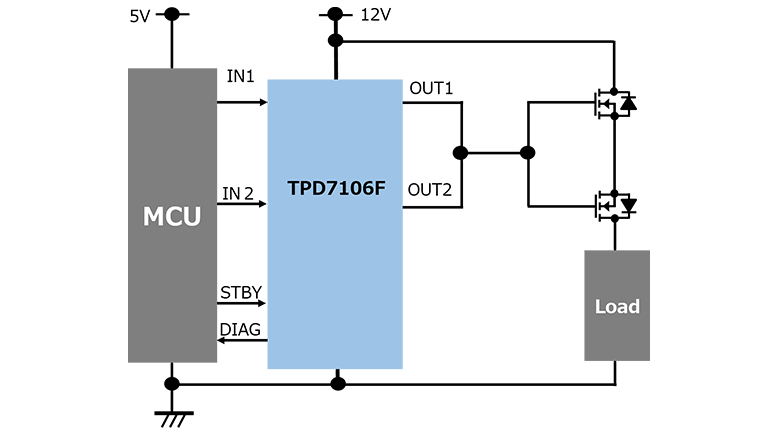

电源开／关控制及反接保护电路

12V电源线开关控制及反接保护电路示例

U-MOS Series 40 V / 80 V / 100 V N-ch MOSFET
Gate driver (for switch)

U-MOS Series 40 V / 80 V / 100 V N-ch MOSFET

器件型号	XPQ1R004PB	XPQR3004PB	XPQR8308QB	XPQ1R00AQB
Toshiba Package Name	L-TOGL	L-TOGL	L-TOGL	L-TOGL
V_DSS (Max) [V]	40	40	80	100
I_D (Max) [A]	200	400	350	300
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.001	0.0003	0.00083	0.00103
Polarity	N-ch	N-ch	N-ch	N-ch

搜索产品线

Gate driver (for switch)

器件型号	TPD7104AF	TPD7106F	TPD7107F
Toshiba Package name	PS-8	SSOP16	WSON10A
V_BB (Max) [V]
V_CC (Max) [V]
I_O (Max) [A]	+5mA/ Internally Limited		Internally Limited /-5m

搜索产品线

直流无刷电机驱动电路

ISG直流无刷电机驱动电路示例

U-MOS Series 40 V / 80 V / 100 V N-ch MOSFET
Gate driver (for motor)
Brushless DC motor pre driver

U-MOS Series 40 V / 80 V / 100 V N-ch MOSFET

器件型号	XPQ1R004PB	XPQR3004PB	XPQR8308QB	XPQ1R00AQB
Toshiba Package Name	L-TOGL	L-TOGL	L-TOGL	L-TOGL
V_DSS (Max) [V]	40	40	80	100
I_D (Max) [A]	200	400	350	300
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.001	0.0003	0.00083	0.00103
Polarity	N-ch	N-ch	N-ch	N-ch

搜索产品线

Gate driver (for motor)

器件型号	TPD7212F	TPD7212FN
Toshiba Package name	WQFN32	SSOP30
V_BB (Max) [V]
V_CC (Max) [V]
I_O (Max) [A]	-1.5	-1.5

搜索产品线

Brushless DC motor pre driver

器件型号	TB9081FG	TB9083FTG
Toshiba Package Name	QFP64-P-1010-0.50C	P-VQFN48-0707-0.50-005
Product Category	Pre-driver for automobile	Pre-driver for automobile

搜索产品线

CAN收发器保护电路

TVS diode (for CAN communication)
General purpose small signal MOSFET
General purpose small signal bipolar transistor
Small signal bias resistor built-in transistor (BRT)

TVS diode (for CAN communication)

器件型号	DF3D18FU	DF3D29FU	DF3D36FU
Toshiba Package Name	SOT-323 (USM)	SOT-323 (USM)	SOT-323 (USM)
V_ESD (Max) [kV]	+/-30	+/-25	+/-20
I_R (Max) [µA]	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.8	1.1	1.5
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	9	9	6.5

搜索产品线

General purpose small signal MOSFET

器件型号	SSM3K7002KF	SSM3J168F	SSM3J66MFV
Toshiba Package Name	SOT-346 (S-Mini)	SOT-346 (S-Mini)	SOT-723 (VESM)
V_DSS (Max) [V]	60	-60	-20
I_D (Max) [A]	0.4	-0.4	-0.8
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 4.5 [V]	1.75	1.9	0.39
Polarity	N-ch	P-ch	P-ch

搜索产品线

General purpose small signal bipolar transistor

器件型号	2SA1832	2SC4738	2SC4116	2SA1586	2SC2712	2SA1162
Toshiba Package Name	SOT-416 (SSM)	SOT-416 (SSM)	SOT-323 (USM)	SOT-323 (USM)	SOT-346 (S-Mini)	SOT-346 (S-Mini)
V_CEO (Max) [V]	-50	50	50	-50	50	-50
I_C (Max) [A]	-0.15	0.15	0.15	-0.15	0.15	-0.15
Polarity	PNP	NPN	NPN	PNP	NPN	PNP

搜索产品线

Small signal bias resistor built-in transistor (BRT)

器件型号	RN1907FE	RN2907FE	RN1901	RN2901
Toshiba Package Name	SOT-563 (ES6)	SOT-563 (ES6)	SOT-363 (US6)	SOT-363 (US6)
V_CEO (Q1) (Max) [V]	50	-50	50	-50
V_CEO (Q2) (Max) [V]	50	-50	50	-50
I_C (Q1) (Max) [A]	0.1	-0.1	0.1	-0.1
I_C (Q2) (Max) [A]	0.1	-0.1	0.1	-0.1
Polarity (Q1)	NPN	PNP	NPN	PNP
Polarity (Q2)	NPN	PNP	NPN	PNP
