HDMI®接口桥接IC
在众多应用中，存在将高清多媒体接口（HDMI®接口）转换为其他接口标准（如MIPI®接口规范）的需求。这些应用包括数字媒体适配器、智能显示器、机顶盒及智能电视等。
产品线
| 器件型号 | TC358743XBG | TC9590XBG | TC358841XBG | TC358871XBG |
|---|---|---|---|---|
| 封装外形图 |  |
 |
 |
 |
| 输入 | HDMI® 1.4接口 | HDMI® 1.4b接口 | ||
| 输出 | MIPI® CSI-2® | MIPI® CSI-2® | MIPI® DSI® | |
| 分辨率 | 2K全高清 （1920×1080，60fps，24位／像素） |
4K超高清 （3840×2160，30fps，24位／像素） |
||
| 音频 | I2S或TDM | |||
| 封装尺寸 | BGA64 6mm×6mm，0.65mm引脚间距 |
BGA64 7mm×7mm，0.8mm引脚间距 |
BGA80 7mm×7mm，0.65mm引脚间距 |
|
| 工作环境温度 | -30°C～+70°C | -40°C～+85°C | -30°C～+70°C | |
| 状态 | MP | |||

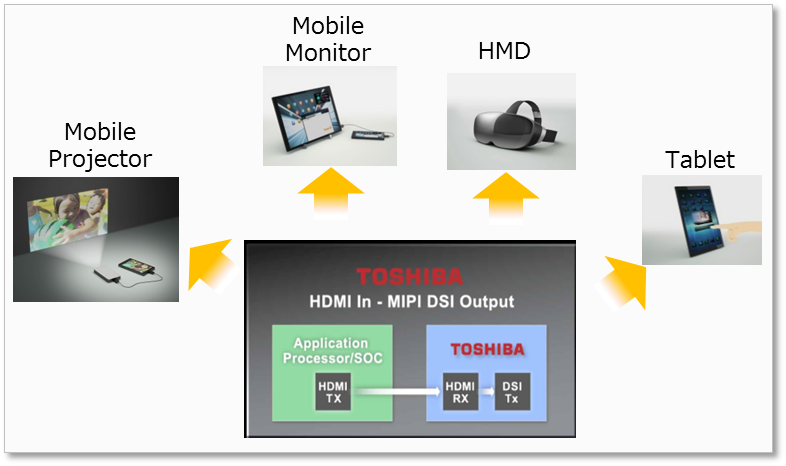

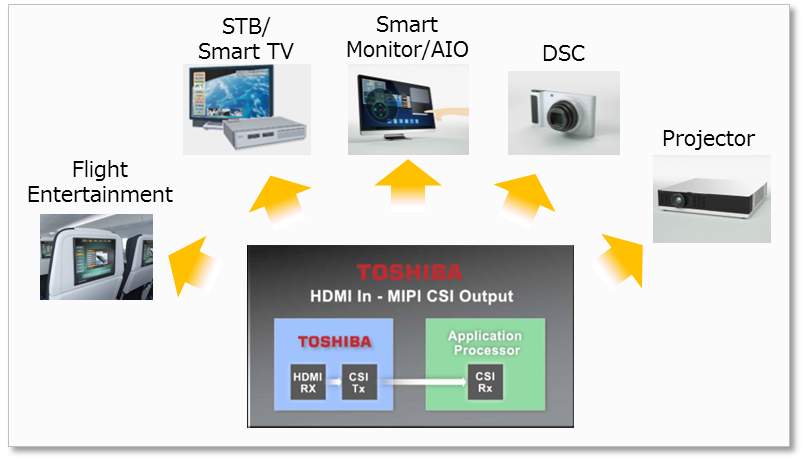

应用
*MIPI®、DSI®、CSI-2®为MIPI Alliance, Inc.的商标、服务标志或注册服务标志。
*HDMI，HDMI High-Definition Multimedia Interface，HDMI商业外观（Trade dress）及HDMI标识为HDMI Licensing Administrator, Inc.的商标或注册商标。
*其他公司名称、产品名称及服务名称可能为其各自公司的商标。
