直流有刷电机驱动IC

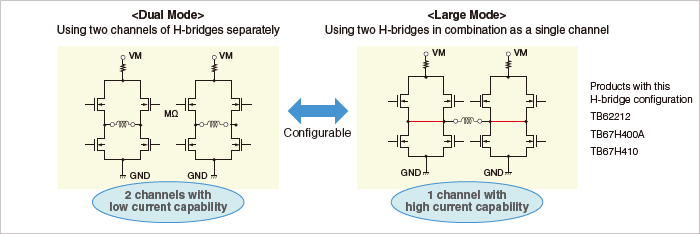

东芝推出了采用BiCD工艺制造而成的有刷电机驱动IC,它能提供低的输出Ron,从而有助于降低功耗。东芝提供广泛的有刷电机驱动IC产品组合,具有广泛的电源电压、输出电流和通道数选择范围。东芝的产品范围包括含有多个H电桥的电机驱动IC,它可以根据电机驱动类型和所需电流能力采用灵活的组合方式(步进电机和直流有刷电机)。

产品线

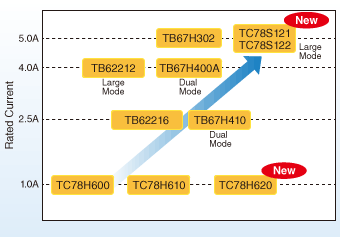

单通道电机驱动IC

Product Lines :Single-Channel Motor Drivers

双通道电机驱动IC

Product Lines :Dual-Channel Motor Drivers

视频

参数搜索

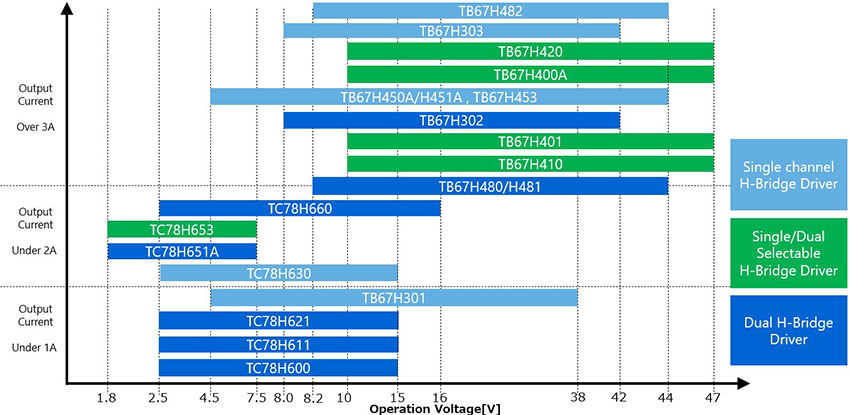

有刷电机驱动IC 产品线

交叉搜索

About information presented in this cross reference

The information presented in this cross reference is based on TOSHIBA's selection criteria and should be treated as a suggestion only. Please carefully review the latest versions of all relevant information on the TOSHIBA products, including without limitation data sheets and validate all operating parameters of the TOSHIBA products to ensure that the suggested TOSHIBA products are truly compatible with your design and application.
Please note that this cross reference is based on TOSHIBA's estimate of compatibility with other manufacturers' products, based on other manufacturers' published data, at the time the data was collected.
TOSHIBA is not responsible for any incorrect or incomplete information. Information is subject to change at any time without notice.

参考设计

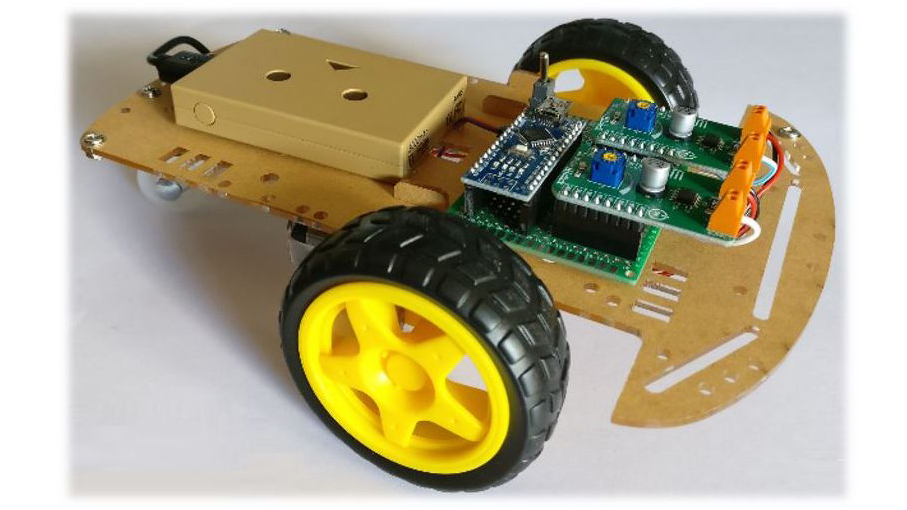

可进行恒流控制(PWM)的用于直流有刷电机的桥驱动器
该参考设计提供了可进行恒流控制(PWM)的用于直流有刷电机的桥驱动IC的评估板的电路图,BOM和PCB数据(Gerber数据)等。

直流有刷电机驱动IC

用于直流有刷电动机的桥驱动IC
该参考设计提供了用于直流有刷电机的桥驱IC评估板的电路图、BOM和PCB数据(Gerber数据)等。

直流有刷电机驱动IC

直流和步进电机驱动IC
该参考设计提供了用于直流和步进电机驱动IC评估板的电路图、BOM和PCB数据(Gerber数据)等。

直流有刷电机驱动IC/步进电机控制
