查找您下一个设计所需要的一切。只需选择一个应用,然后单击以查看框图,即可找到我们的半导体解决方案。

晶体管阵列

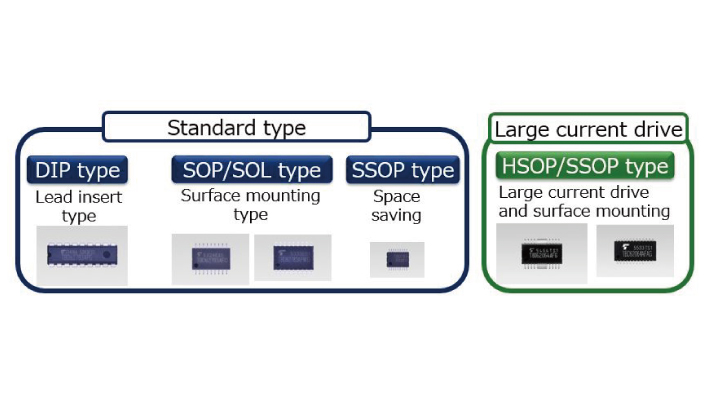

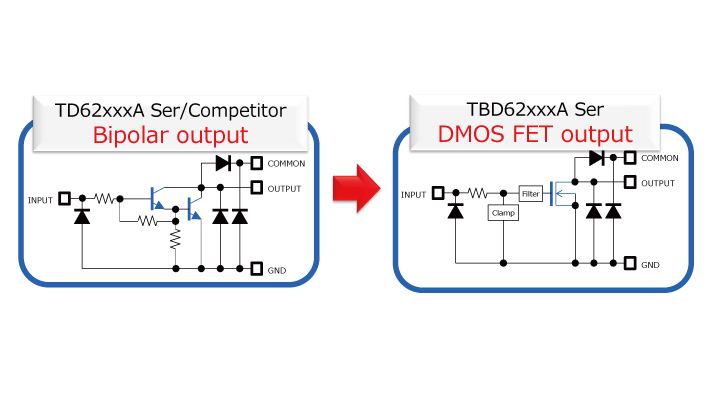

晶体管阵列包括了采用同一个IC封装的多个双极型晶体管阵列或MOSFET阵列。东芝晶体管阵列的输出配置正在从双极转变为DMOS FET。

产品线

TBD62xxxA系列

输出电流类型:灌电流,通道数:4

传统产品 新产品 输出类型 通道数 感性负载 通用二极管 输入电平 输出电流 输出电压 封装
TD62064APG
TD62064AFG
TBD62064APG
TBD62064AFG
TBD62064AFAG
灌电流 4通道 支持 内置 H 1.5A 50V DIP16
HSOP16
SSOP24
TD62308APG
TD62308AFG
TBD62308APG
TBD62308AFG
TBD62308AFAG
支持 内置 L 1.5A 50V DIP16
HSOP16
SSOP24

输出电流类型:灌电流,通道数:7

传统产品 新产品 输出类型 通道数 感性负载 通用二极管 输入电平 输出电流 输出电压 封装
TD62003APG
TD62003AFG
ULN2003APG
ULN2003AFWG
TBD62003APG
TBD62003AFG
TBD62003AFNG
TBD62003AFWG
灌电流
7通道
支持 内置 H 0.5A 50V DIP16
SOP16
SSOP16
SOL16
TD62004APG
TD62004AFG
ULN2004APG
ULN2004AFWG
TBD62004AP
TBD62004AFG
TBD62004AFNG
TBD62004AFWG
支持 内置 H 0.5A 50V DIP16
SOP16
SSOP16
SOL16
TD62502PG
TD62502FG
TD62502FWG
TBD62502APG
TBD62502AFG
TBD62502AFNG
TBD62502AFWG
- - H H 50V DIP16
SOP16
SSOP16
SOL16
TD62503PG
TD62503FG
TD62503FWG
TBD62503APG
TBD62503AFG
TBD62503AFNG
TBD62503AFWG
- - H   50V DIP16
SOP16
SSOP16
SOL16
TD62304APG
TD62304AFG
TD62304AFWG
TD62305APG
TD62305AFG
TD62305AFWG
TBD62304APG
TBD62304AFNG
TBD62304AFWG
- - L 0.5A 50V
DIP16
SSOP16
SOL16

输出电流类型:灌电流,通道数:8

传统产品 新产品 输出类型 通道数 感性负载 通用二极管 输入电平 输出电流 输出电压 封装
TD62083APG
TD62083AFG
TD62083AFWG
ULN2803APG
ULN2803AFWG
TBD62083APG
TBD62083AFG
TBD62083AFNG
TBD62083AFWG
灌电流 8通道 支持 内置 H 50V 50V DIP18
SOP18
SSOP18
SOL18
TD62084APG
TD62084AFG
TD62084AFWG
ULN2804APG
ULN2804AFWG
TBD62084APG
TBD62084AFG
TBD62084AFNG
TBD62084AFWG
支持 内置 H 50V 50V DIP18
SOP18
SSOP18
SOL18
TD62083AFG
TD62083AFWG
ULN2803APG
ULN2803AFWG
TBD62183AFNG
TBD62183AFWG
支持 内置 H 50V 50V SSOP18
SOL18
TD62387APG
TD62387AFG
TD62387AFWG
TBD62387APG
TBD62387AFNG
支持 内置 L 0.5A 50V DIP20
SSOP20
TD62382APG
TD62382AFG
TD62382AFWG
TD62384APG
TD62384AFG
TD62385APG
TD62385AFG
TBD62384APG
TBD62384AFNG
- - L 0.5A 50V DIP18
SOL18
TBD62381PG
TBD62381FG
TBD62381FWG
TBD62381APG
TBD62381AFNG
TBD62381AFWG
- - H 0.5A 50V DIP18
SSOP18
SOL18

输出电流类型:源电流,通道数:8

传统产品 新产品 输出类型 通道数 感性负载 通用二极管 输入电平 输出电流 输出电压 封装
TD62783APG
TD62783AFG
TD62783AFWG
TD62783AFWG
TBD62783APG
TBD62783AFG
TBD62783AFNG
TBD62783AFWG
源电流 8通道 支持 内置 H 0.5A 50V DIP18
SOP18
SSOP18
SOL18
TD62781APG
TD62781AFG
TBD62781APG
TBD62781AFWG
- - H 0.5A 50V DIP18
SOL18
TD62785APG
TD62785AFG
TBD62785APG
TBD62785AFWG
- - L 0.5A 50V DIP18
SOL18
TD62786APG
TD62786AFG
TD62786AFWG
TBD62786APG
TBD62786AFNG
TBD62786AFWG
支持 内置 L 0.5A 50V DIP18
SSOP18
SOL18

数据存储功能(D型触发器)型

传统产品 新产品 输出类型 通道数 感性负载 通用二极管 输入电平 输出电流  输出电压 封装
- TBD62089APG 灌电流 8通道 --   H 0.5A 50V

DIP16

- TBD62789APG 源电流 支持 内置 H 0.5A 50V DIP16
