封装

Toshiba Package Name	SOIC16-W
Package Image
Pins	16
Mounting	Surface Mount
Width×Length×Height (mm)	10.3×10.0×2.45
Package Dimensions	查看
Land pattern dimensions	查看
Ultra Librarian^® CAD model (Symbol, Footprint and 3D model)	Download from UltraLibrarian^® in your desired CAD format (Note1)(Note3)
SamacSys CAD model (Symbol, Footprint and 3D model)	Download from SamacSys (Note2)(Note3)

Please refer to the link destination to check the detailed size.

(Note1)	Ultra Librarian^® is a Registered trademark and CAD model library of EMA (EMA Design Automation, Inc.). CAD models (Symbol/Footprint /3D model) are provided by UltraLibrarian^®. The footprints are generated based on the specifications of Ultra Librarian^®.
(Note2)	SamacSys is a wholly owned subsidiary of Supplyframe, Inc. CAD models (Symbol/Footprint /3D model) are provided by Supplyframe, Inc. The footprints are generated based on the specifications of SamacSys.
(Note3)	Please note that the footprint dimensions may differ from the reference Land Pattern dimensions provided on our website.

绝对最大额定值

项目	符号	值	单位
Supply Voltage V_DD1	V_DD1	-0.5 to 6	V
Supply Voltage V_DD2	V_DD2	-0.5 to 6	V
Operating Temperature	T_opr	-40 to 110	℃

电气特性

项目	符号	条件	值	单位
Isolation voltage [BV_S] (Min)	BV_S	t=60sec	5000	Vrms
Common mode transient immunity[CMTI] (Min)	CMTI	-	100	kV/μs
Data transfer rate (Max)	-	-	150	Mbps
Supply Voltage(under Recommended Operating Conditions) V_DD1 (Min)	V_DD1	-	2.25	V
Supply Voltage(under Recommended Operating Conditions) V_DD1 (Max)	V_DD1	-	5.5	V
Supply Voltage(under Recommended Operating Conditions) V_DD2 (Min)	V_DD2	-	2.25	V
Supply Voltage(under Recommended Operating Conditions) V_DD2 (Max)	V_DD2	-	5.5	V

文档

全部选中
如果该复选框不能被选中，则不能批量下载相应的文档。

数据表 DCL540C01 数据表/日文

PDF: 1775KB

Jul,2025

数据表 DCL540C01 数据表/英文

PDF: 1446KB

Jul,2025

IBIS IBIS Model IBS

IBS: 280KB

Mar,2023

UPDATED Environment Information Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances

PDF: 85KB

Sep,2025

UPDATED Environment Information Certificate on Content of SVHC of REACH

PDF: 85KB

Sep,2025

相关技术数据 Safety Standards for Digital Isolator

PDF: 408KB

Dec,2024

相关技术数据 Basics of the standard digital isolators

PDF: 967KB

Apr,2023

相关技术数据 Digital Isolator EMC Application Notes

PDF: 3180KB

Jan,2022

相关技术数据 Glossary of Standard Digital Isolator Terms

PDF: 525KB

Jan,2022

Catalog Selection Guide Isolators and Solid State Relays 2025Rev1.0

PDF: 7871KB

Feb,2025

参考设计

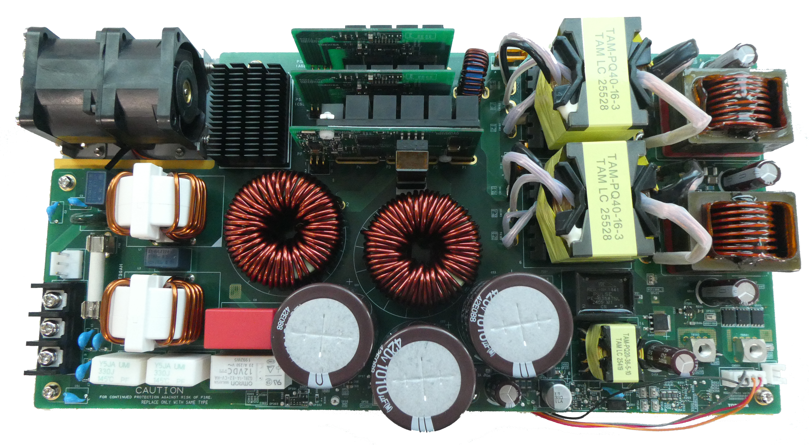

1.6 kW服务器电源（升级版）

得益于东芝最新的功率器件和数字隔离器，这款1U尺寸、12 V输出的1.6 kW服务器电源在整个负载下实现了比使用相同电路拓扑的现有参考设计更高的效率。提供了电路设计和操作的设计文件和指南，可用作参考设计。

详细信息

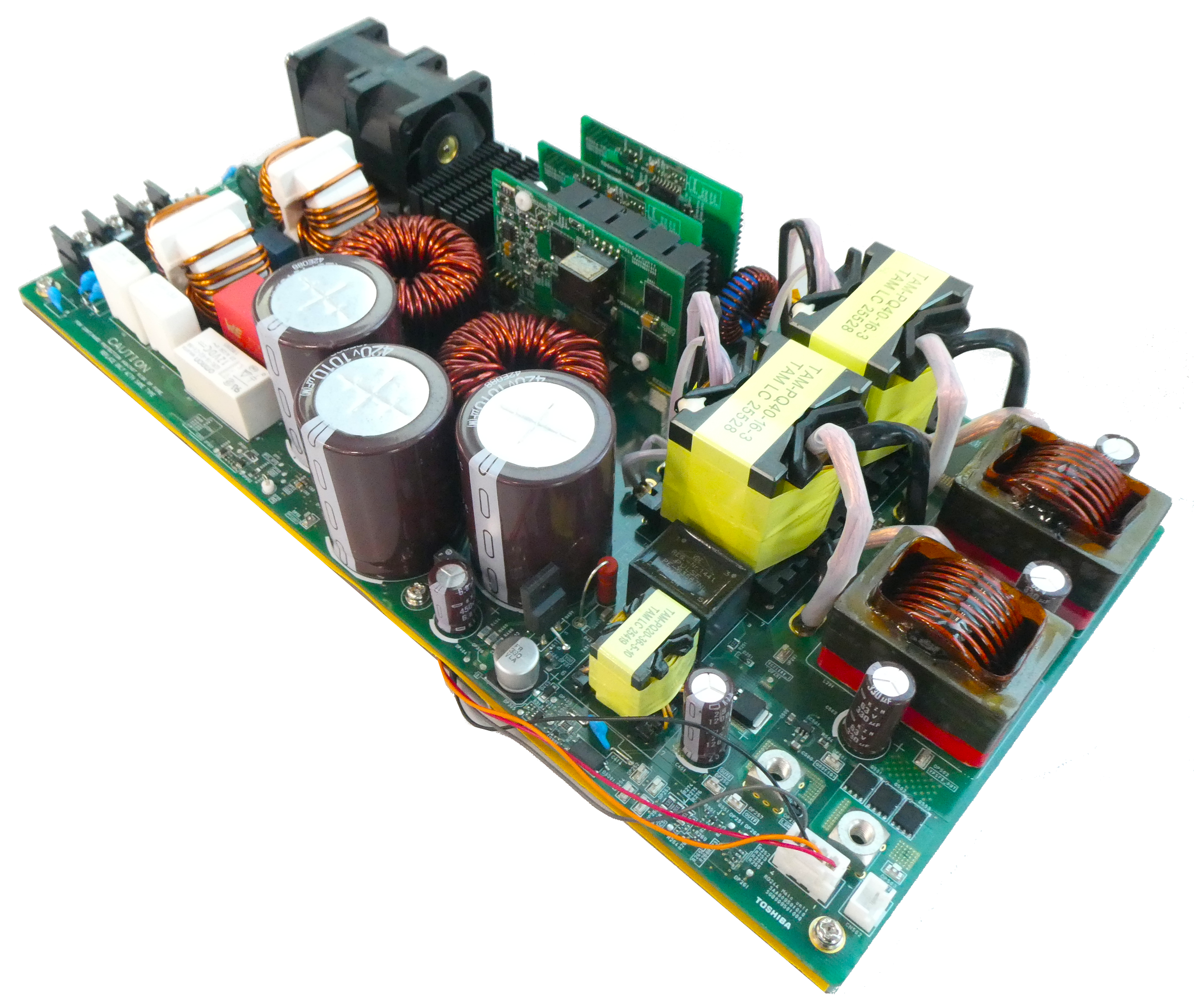

采用表贴式SiC MOSFET的3kW服务器及通信电源

近年来，数据中心规模不断扩大，密度不断提升。因此，服务器电源也需要更高效、更强大、更节省空间，高功率密度至关重要。我们采用最新的表面贴装SiC器件，将电源从主板分离，并将其作为子板实现，从而实现了高功率密度。
除了服务器应用外，该解决方案还适用于通信系统和其他使用48V的应用。
本参考设计提供了电路各部分的设计要点、使用方法和调整方法的说明，以及电路图、电路板布局等设计信息，可为您的设计提供帮助。

详细信息

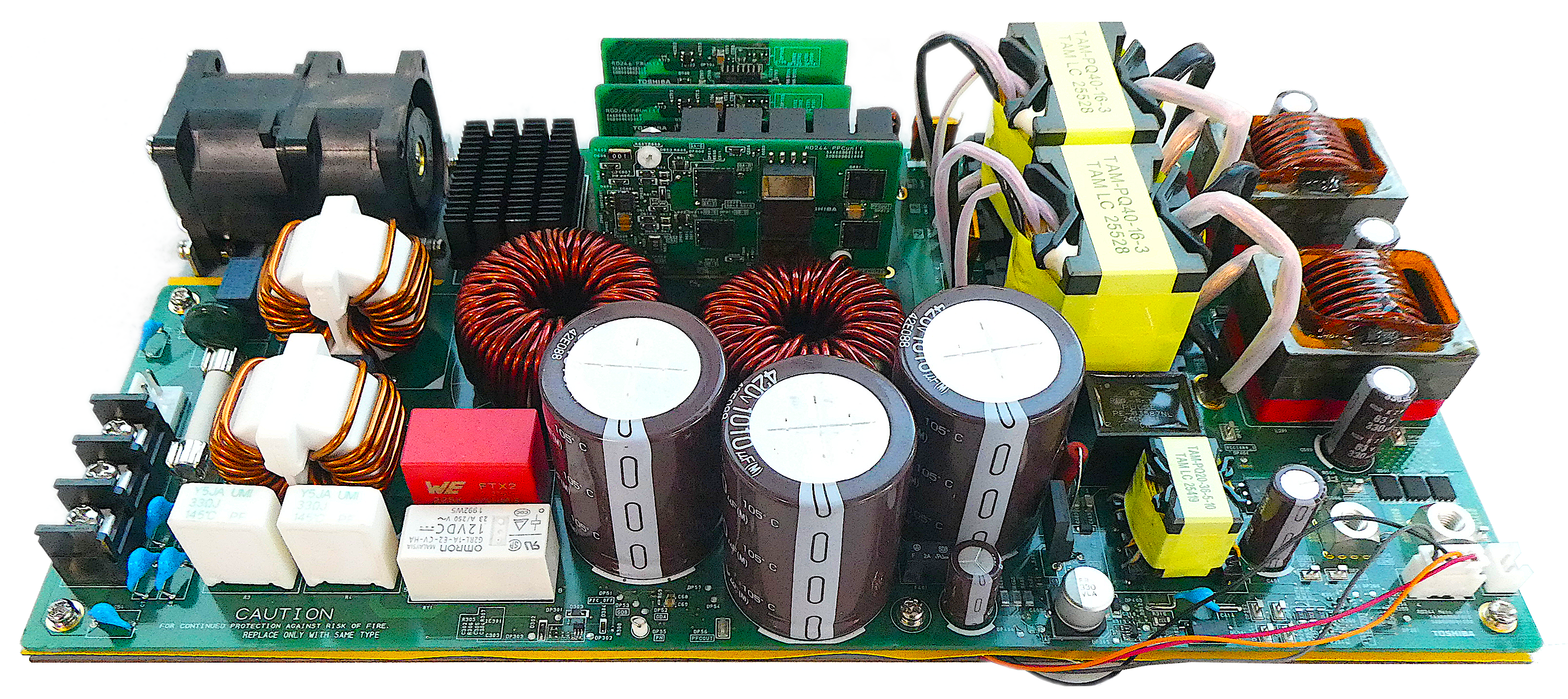

3kW Power Supply for AI Servers Using Surface-Mounted SiC MOSFET

With the rapid rise of generative AI, demand for high-performance AI servers is growing. This reference design provides a 3kW power supply for AI servers with high power requirements. By incorporating our surface-mount SiC MOSFETs, it achieves high power density.
Design tips on each portion of the circuit, method of operation, and design information such as circuit diagrams and PCB patterns are available, please use them for your design.

详细信息

3kW Power Supply for Electric Scooter Fast Chargers Using SiC MOSFET

In recent years, the growing focus on carbon neutrality has led to increased popularity of electric scooters, driving demand for fast battery charging. This reference design presents a 3kW power supply tailored for fast chargers used with electric scooters.
Design tips on each portion of the circuit, method of operation, and design information such as circuit diagrams and PCB patterns are available, please use them for your design.

详细信息

Notes

The Part Number column shows representative part numbers only, which may not be available for sale in the precise form shown. Each Part Number constitutes a product family which may contain multiple associated product configurations.
(#) Under the RoHS Compatible Product(s) column, "Available" means at least one RoHS-Compatible product is available for sale in the corresponding product family. "None" means no RoHS Compatible product is available in that product family. For Toshiba's definitions of concepts related to the RoHS Directive and RoHS Compatibility, please click here.
The RoHS compatibility information provided herein is to the best of Toshiba's knowledge and belief accurate as of the date Toshiba entered the information into this database. Information is subject to change at any time without notice.
Please contact your Toshiba sales representative for detailed environmental information about each specific part number or product, such as RoHS compatibility or material content. Please use Toshiba products only in compliance with all applicable laws and regulations concerning the inclusion or use of controlled substances, including without limitation the RoHS Directive.TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.
Reliability data are provided for your reference only, please contact your Toshiba sales representative for detailed reliability information about each part number.
For product delivery, additional characters will be added to the part numbers shown on this website. For details, please ask your local distributor, or send an inquiry accessed from "Contact Us" on this website.

Feature	2.5V/3.3V/5V supply voltage / High CMTI / 150Mbps ultra high speed / 4 channel
Application Scope	Factory automation / PLC / SMPS (Switching Mode Power Supply)
Number of Circuits	4
Configuration	Forward:4,Reverse:0
RoHS Compatible Product(s) (#)	Available
Safety Standard	Approved　:　UL 1577 / cUL (CSA Component Acceptance Service No. 5A) / EN IEC 62368-1 (VDE) / GB 4943.1-2022 (CQC) / DIN EN IEC 60747-17 Download Online Certification of Safety Standard(UL 1577) Download Online Certification of Safety Standard(cUL)
