在为高速信号线选择TVS二极管（ESD保护二极管）时，应考虑哪些因素？
您需考虑电路未暴露在静电和其它过压下的正常工作状态（在此种状态下，TVS二极管为关断状态）。

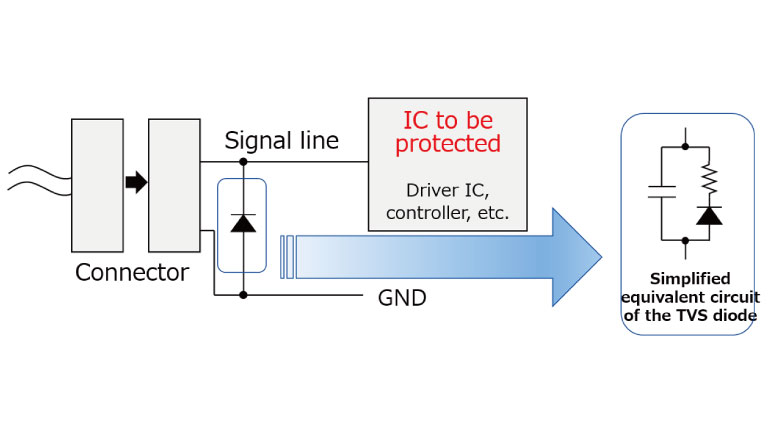

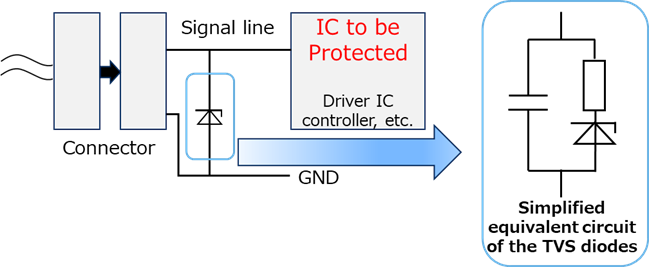

TVS二极管的简化等效电路如下所示。当TVS二极管关断时，TVS二极管通过结电容的作用与电容器作用相同。此电容称为总电容CT。由于此电容位于信号线（数据通路）与GND之间，因此高速信号的信号完整性会下降。为保持信号完整性，必须选择具有足够总电容CT的TVS二极管。

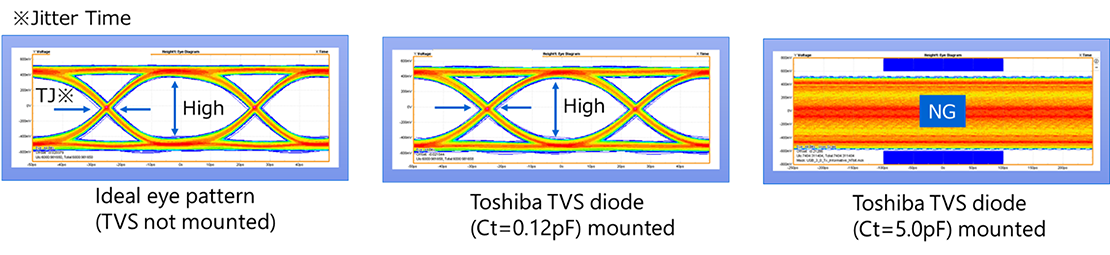

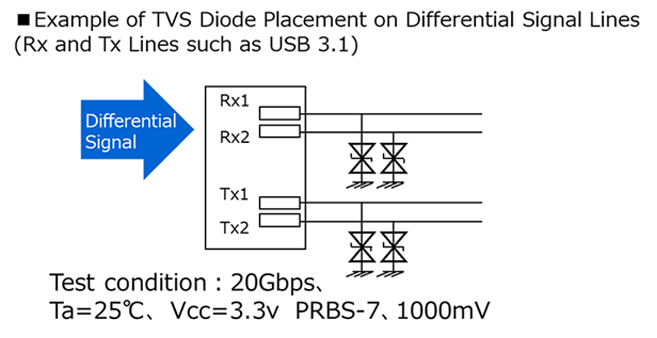

在选择TVS二极管时，请参考下图。
