SSM3K341R

Small Low ON resistance MOSFETs

全部 Data sheet 应用说明 Other

数据表

SSM3K341R 数据表/日文[Feb,2021]PDF: 364KB

数据表

SSM3K341R 数据表/英文[Feb,2021]PDF: 245KB

Simulation Model

PSpice Model[Feb,2016]lib: 3KB

Simulation Model

LTspice Model[Feb,2019]mod: 20KB

Thermal Simulation Model

Simplified CFD Model[Feb,2024]ZIP: 8KB

Reliability Information

Reliability Data[Oct,2024]PDF: 200KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Dec,2024]PDF: 86KB

Environment Information

Certificate on Content of SVHC of REACH[Dec,2024]PDF: 86KB

Application Scope	Power Management Switches / DC-DC Converters
Polarity	N-ch
Generation	U-MOSⅧ-H
Internal Connection	Single
PPAP	Capable(*)
AEC-Q101	Qualified(*)
RoHS Compatible Product(s) (#)	Available

封装

Toshiba Package Name	SOT-23F
Package Image
Pins	3
Mounting	Surface Mount
Width×Length×Height (mm)	2.9×2.4×0.8
Package Dimensions	查看
Land pattern dimensions	查看
CAD data (Symbol, Footprint and 3D model)	Download from UltraLibrarian^® in your desired CAD format (Note)

Please refer to the link destination to check the detailed size.

(Note)

Ultra Librarian^® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

绝对最大额定值

项目	符号	值	单位
Drain-Source voltage	V_DSS	60	V
Gate-Source voltage	V_GSS	+/-20	V
Drain current	I_D	6.0	A
Power Dissipation	P_D	1.2	W

电气特性

项目	符号	条件	值	单位
Gate threshold voltage (Max)	V_th	-	2.5	V
Gate threshold voltage (Min)	V_th	-	1.5	V
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=4V	69	mΩ
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=4.5V	51	mΩ
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=10V	36	mΩ
Input capacitance (Typ.)	C_iss	-	550	pF
Total gate charge (Typ.)	Q_g	V_GS=10V	9.3	nC

文档

全部选中
如果该复选框不能被选中，则不能批量下载相应的文档。

数据表 SSM3K341R 数据表/日文

PDF: 364KB

Feb,2021

数据表 SSM3K341R 数据表/英文

PDF: 245KB

Feb,2021

Simulation Model PSpice Model lib

lib: 3KB

Feb,2016

Simulation Model LTspice Model (Note) mod

mod: 20KB

Feb,2019

Thermal Simulation Model Simplified CFD Model ZIP

ZIP: 8KB

Feb,2024

Reliability Information Reliability Data

PDF: 200KB

Oct,2024

UPDATED Environment Information Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances

PDF: 86KB

Dec,2024

UPDATED Environment Information Certificate on Content of SVHC of REACH

PDF: 86KB

Dec,2024

相关技术数据 Surface Mount Small Signal MOSFET Precautions for use

PDF: 830KB

Jan,2022

Catalog Selection Guide MOSFETs 2024 Rev2.0

PDF: 10837KB

Jul,2024

Catalog Selection Guide Small Signal 2024 Rev2.0

PDF: 15538KB

Jul,2024

Catalog Mini catalog Introduction of Semi-power & small-size low RON MOSFET

PDF: 441KB

Jul,2024

Catalog Mini catalog Introduction of small-package MOSFET

PDF: 676KB

Jul,2024

(Note)

LTspice ^® is a trademark and simulation software of ADI (Analog Devices, Inc.).

Orderable part number (example)	MOQ(pcs)	Reliability Information	RoHS	AEC-Q100 AEC-Q101	Note
SSM3K341R,LF	3000		Yes	-	General Use
SSM3K341R,LXGF	3000	-	Yes	Yes (Note)	Unintended Use (Note)
SSM3K341R,LXHF	3000	-	Yes	Yes	Automotive Use

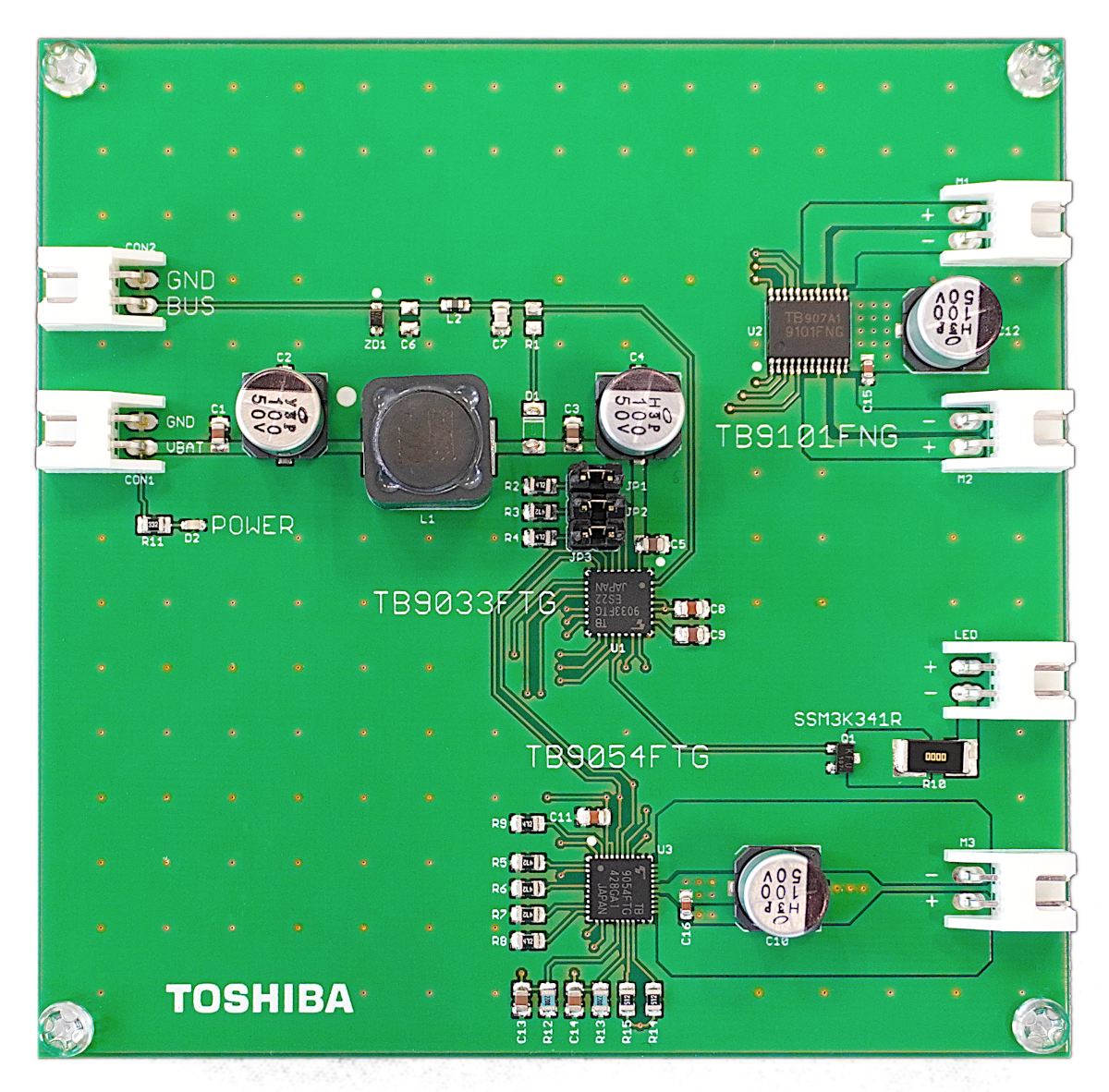

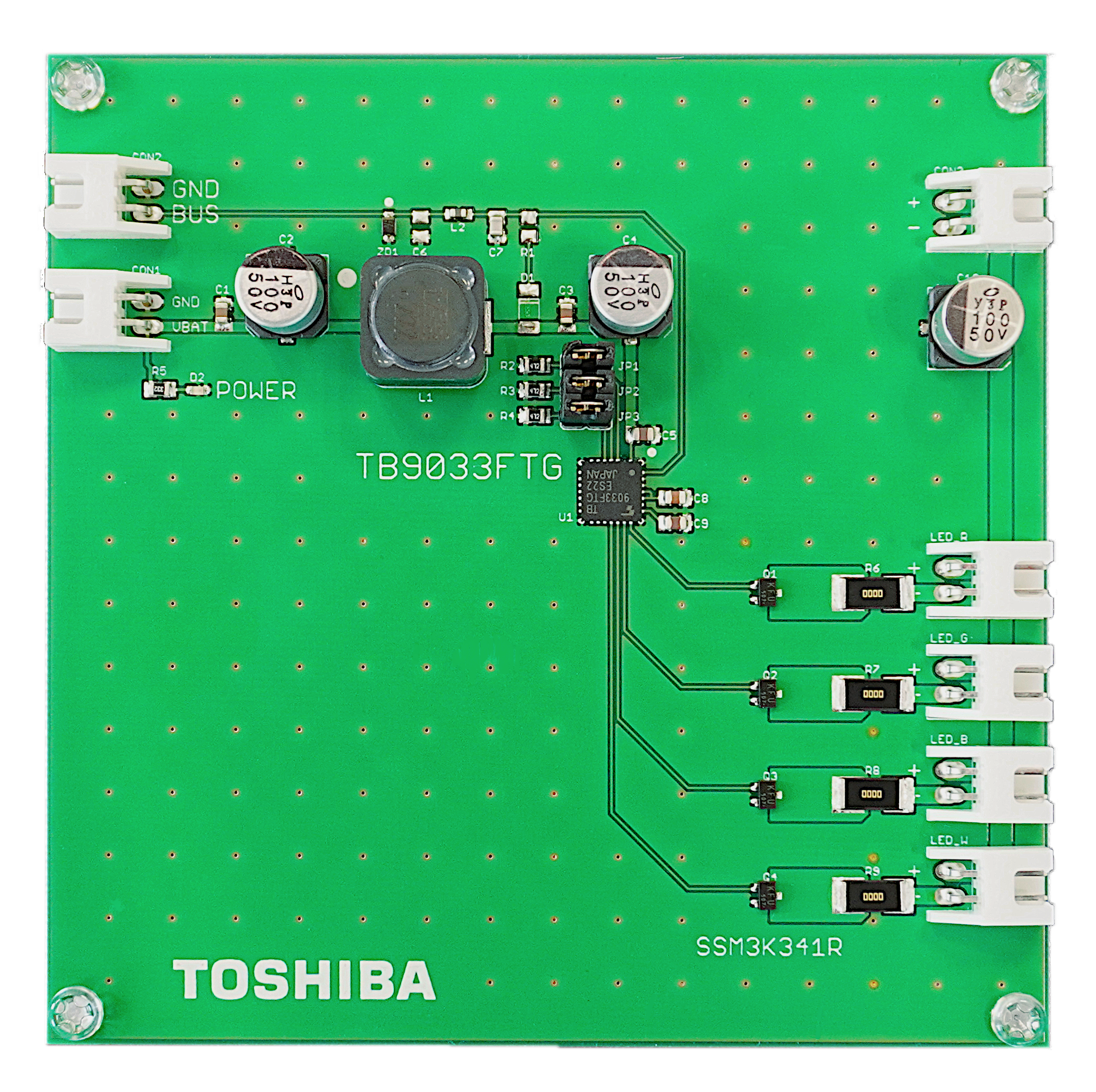

应用

服务器

在设计服务器时，低功耗和小型化等非常重要。东芝提供了适用于电源单元、电机驱动单元、过温监控单元等的各种半导体产品的信息以及电路配置示例。

详细信息

智能音响

低功耗和小型化等对于智能音响的设计非常重要。东芝提供了适用于电源单元、传感器信号输入单元、显示单元等的各种半导体产品的信息以及电路配置示例。

详细信息

可编程逻辑控制器

在设计可编程逻辑控制器（PLC）时，高功能性、低功耗和小型化等非常重要。东芝提供适用于电源单元、输入和输出模块单元、控制信号传输单元等的各种半导体产品的信息以及电路配置示例。

详细信息

Notes

The Part Number column shows representative part numbers only, which may not be available for sale in the precise form shown. Each Part Number constitutes a product family which may contain multiple associated product configurations.
(#) Under the RoHS Compatible Product(s) column, "Available" means at least one RoHS-Compatible product is available for sale in the corresponding product family. "None" means no RoHS Compatible product is available in that product family. For Toshiba's definitions of concepts related to the RoHS Directive and RoHS Compatibility, please click here.
The RoHS compatibility information provided herein is to the best of Toshiba's knowledge and belief accurate as of the date Toshiba entered the information into this database. Information is subject to change at any time without notice.
Please contact your Toshiba sales representative for detailed environmental information about each specific part number or product, such as RoHS compatibility or material content. Please use Toshiba products only in compliance with all applicable laws and regulations concerning the inclusion or use of controlled substances, including without limitation the RoHS Directive.TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.
Reliability data are provided for your reference only, please contact your Toshiba sales representative for detailed reliability information about each part number.
For product delivery, additional characters will be added to the part numbers shown on this website. For details, please ask your local distributor, or send an inquiry accessed from "Contact Us" on this website.
