TLP2362

Photocoupler (photo-IC output)

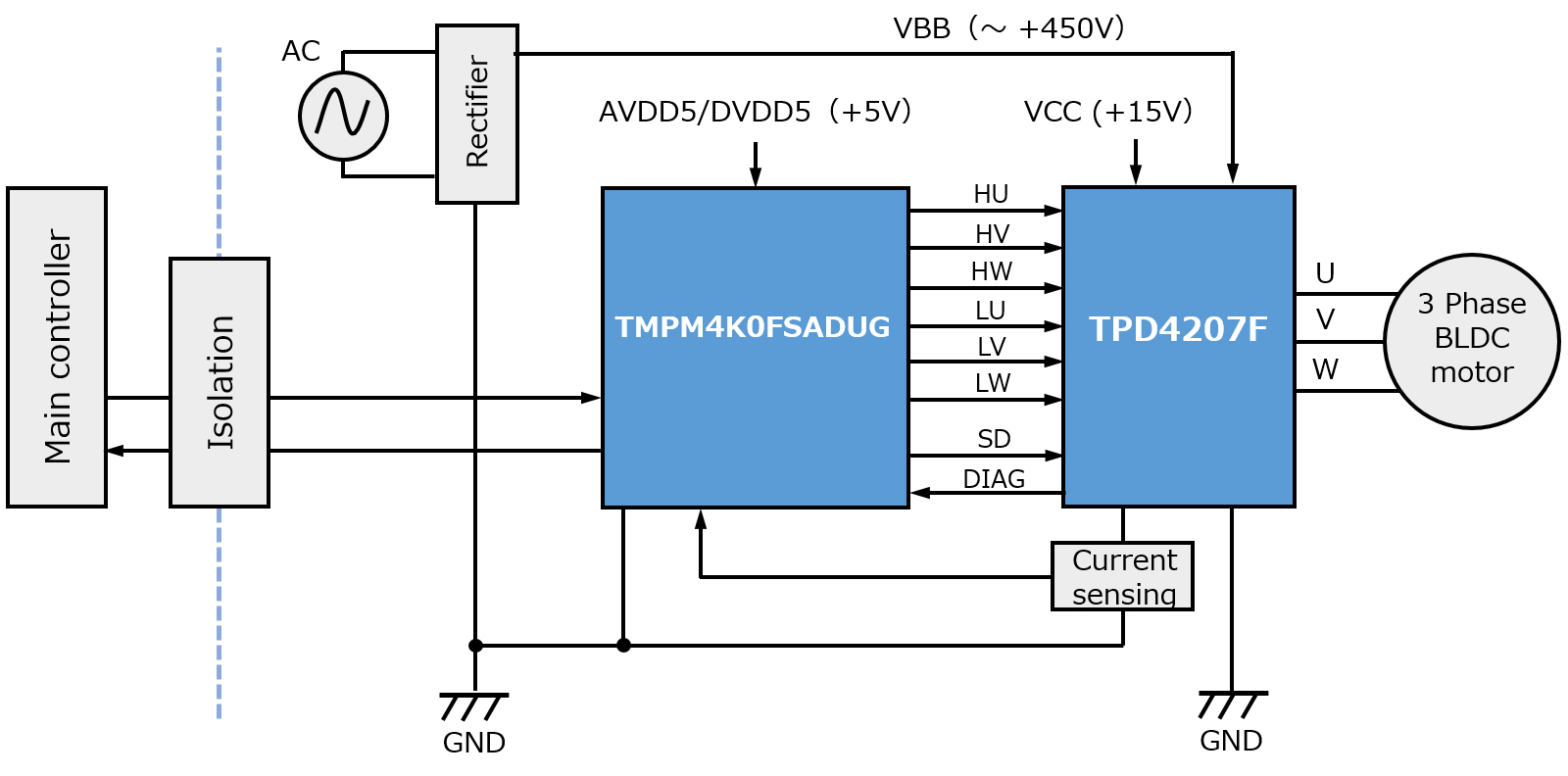

相关参考设计(1)

全部 Data sheet 应用说明 Other

数据表

TLP2362 数据表/日文[Nov,2019]PDF: 683KB

数据表

TLP2362 数据表/英文[Nov,2019]PDF: 496KB

Simulation Model

PSpice Model[Jan,2019]ZIP: 6KB

Simulation Model

LTspice Model[Mar,2019]ZIP: 10KB

Reliability Information

Reliability Data[Aug,2024]PDF: 199KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Nov,2024]PDF: 85KB

Environment Information

Certificate on Content of SVHC of REACH[Nov,2024]PDF: 85KB

相关技术数据

The design guide for 24V Digital Input Modules for PLCs[Mar,2021]PDF: 2492KB

相关技术数据

Safety standards for photocouplers[Mar,2021]PDF: 753KB

相关技术数据

Basic Characteristics and Application Circuit Design of IC Couplers[Nov,2019]PDF: 2046KB

相关技术数据

Glossary of Photocoupler and Photorelay Terms[Mar,2018]PDF: 509KB

Catalog

Selection Guide Isolators and Solid State Relays 2024Rev2.0[Aug,2024]PDF: 14710KB

Catalog

Photocouplers and Photorelays[Apr,2020]PDF: 2619KB

数据表

TLP2362 数据表/日文[Nov,2019]PDF: 683KB

数据表

TLP2362 数据表/英文[Nov,2019]PDF: 496KB

相关技术数据

The design guide for 24V Digital Input Modules for PLCs[Mar,2021]PDF: 2492KB

相关技术数据

Safety standards for photocouplers[Mar,2021]PDF: 753KB

相关技术数据

Basic Characteristics and Application Circuit Design of IC Couplers[Nov,2019]PDF: 2046KB

相关技术数据

Glossary of Photocoupler and Photorelay Terms[Mar,2018]PDF: 509KB

Simulation Model

PSpice Model[Jan,2019]ZIP: 6KB

Simulation Model

LTspice Model[Mar,2019]ZIP: 10KB

Reliability Information

Reliability Data[Aug,2024]PDF: 199KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Nov,2024]PDF: 85KB

Environment Information

Certificate on Content of SVHC of REACH[Nov,2024]PDF: 85KB

Catalog

Selection Guide Isolators and Solid State Relays 2024Rev2.0[Aug,2024]PDF: 14710KB

Catalog

Photocouplers and Photorelays[Apr,2020]PDF: 2619KB

产品概要

Feature	3.3V/5V supply voltage / High temperature 125 degC operation
Application Scope	Communication interface / Measurement instrumentation / PLC
Function	High-speed
Number of Circuits	1
Output Interface	open-collector
RoHS Compatible Product(s) (#)	Available
Safety Standard	Approved　:　UL 1577 / cUL (CSA Component Acceptance Service No. 5A) / EN 60747-5-5 (VDE) / EN IEC 62368-1 (VDE) / GB 4943.1-2022 (CQC) Download Online Certification of Safety Standard(UL 1577) Download Online Certification of Safety Standard(cUL)

封装

Toshiba Package Name	5pin SO6
Package Image
Pins	5
Mounting	Surface Mount
Width×Length×Height (mm)	3.7×7.0×2.1
Package Dimensions	查看
Land pattern dimensions	查看
CAD data (Symbol, Footprint and 3D model)	Download from UltraLibrarian^® in your desired CAD format (Note)

Please refer to the link destination to check the detailed size.

(Note) Ultra Librarian^® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

绝对最大额定值

项目	符号	值	单位
Supply Voltage	V_CC	6	V
Operating Temperature	T_opr	-40 to 125	℃

电气特性

项目	符号	条件	值	单位
Pulse width distortion	\|tpHL-tpLH\|	-	35	ns
Isolation voltage	BV_S	t=60sec	3750	Vrms
Common mode transient immunity	CM_H / CM_L	-	+/-20	kV/μs
I_CC (Max)	I_CC	-	4	mA
threshold input current(H/L)	I_FHL	-	5	mA
Propagation delay time (H/L)(Max)	tpHL	-	100	ns
Propagation delay time (L/H)(Max)	tpLH	-	100	ns
Data transfer rate	-	-	10	Mbps
Supply Voltage(under Recommended Operating Conditions)(Max)	V_CC	-	5.5	V
Supply Voltage(under Recommended Operating Conditions)(Min)	V_CC	-	2.7	V

文档

全部选中
如果该复选框不能被选中，则不能批量下载相应的文档。

数据表 TLP2362 数据表/日文

PDF: 683KB

Nov,2019

数据表 TLP2362 数据表/英文

PDF: 496KB

Nov,2019

Simulation Model PSpice Model ZIP

ZIP: 6KB

Jan,2019

Simulation Model LTspice Model (Note) ZIP

ZIP: 10KB

Mar,2019

Reliability Information Reliability Data

PDF: 199KB

Aug,2024

UPDATED Environment Information Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances

PDF: 85KB

Nov,2024

UPDATED Environment Information Certificate on Content of SVHC of REACH

PDF: 85KB

Nov,2024

相关技术数据 The design guide for 24V Digital Input Modules for PLCs

PDF: 2492KB

Mar,2021

相关技术数据 Safety standards for photocouplers

PDF: 753KB

Mar,2021

相关技术数据 Basic Characteristics and Application Circuit Design of IC Couplers

PDF: 2046KB

Nov,2019

相关技术数据 Glossary of Photocoupler and Photorelay Terms

PDF: 509KB

Mar,2018

Catalog Selection Guide Isolators and Solid State Relays 2024Rev2.0

PDF: 14710KB

Aug,2024

Catalog Photocouplers and Photorelays

PDF: 2619KB

Apr,2020

(Note)

LTspice ^® is a trademark and simulation software of ADI (Analog Devices, Inc.).

Orderable part number (example)	MOQ(pcs)	Reliability Information	RoHS	VDE
TLP2362(TPL,E	3000		Yes	-
TLP2362(V4-TPL,E	3000		Yes	Yes

Notes

The Part Number column shows representative part numbers only, which may not be available for sale in the precise form shown. Each Part Number constitutes a product family which may contain multiple associated product configurations.
(#) Under the RoHS Compatible Product(s) column, "Available" means at least one RoHS-Compatible product is available for sale in the corresponding product family. "None" means no RoHS Compatible product is available in that product family. For Toshiba's definitions of concepts related to the RoHS Directive and RoHS Compatibility, please click here.
The RoHS compatibility information provided herein is to the best of Toshiba's knowledge and belief accurate as of the date Toshiba entered the information into this database. Information is subject to change at any time without notice.
Please contact your Toshiba sales representative for detailed environmental information about each specific part number or product, such as RoHS compatibility or material content. Please use Toshiba products only in compliance with all applicable laws and regulations concerning the inclusion or use of controlled substances, including without limitation the RoHS Directive.TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.
Reliability data are provided for your reference only, please contact your Toshiba sales representative for detailed reliability information about each part number.
For product delivery, additional characters will be added to the part numbers shown on this website. For details, please ask your local distributor, or send an inquiry accessed from "Contact Us" on this website.
