TB9104FTG

H-bridge driver for automobile

产品概要

AEC-Q100 Qualified(*)
RoHS Compatible Product(s) (#) Please contact us.

*: For detail information, please contact to our sales.

封装

Toshiba Package Name P-VQFN32-0505-0.50-009

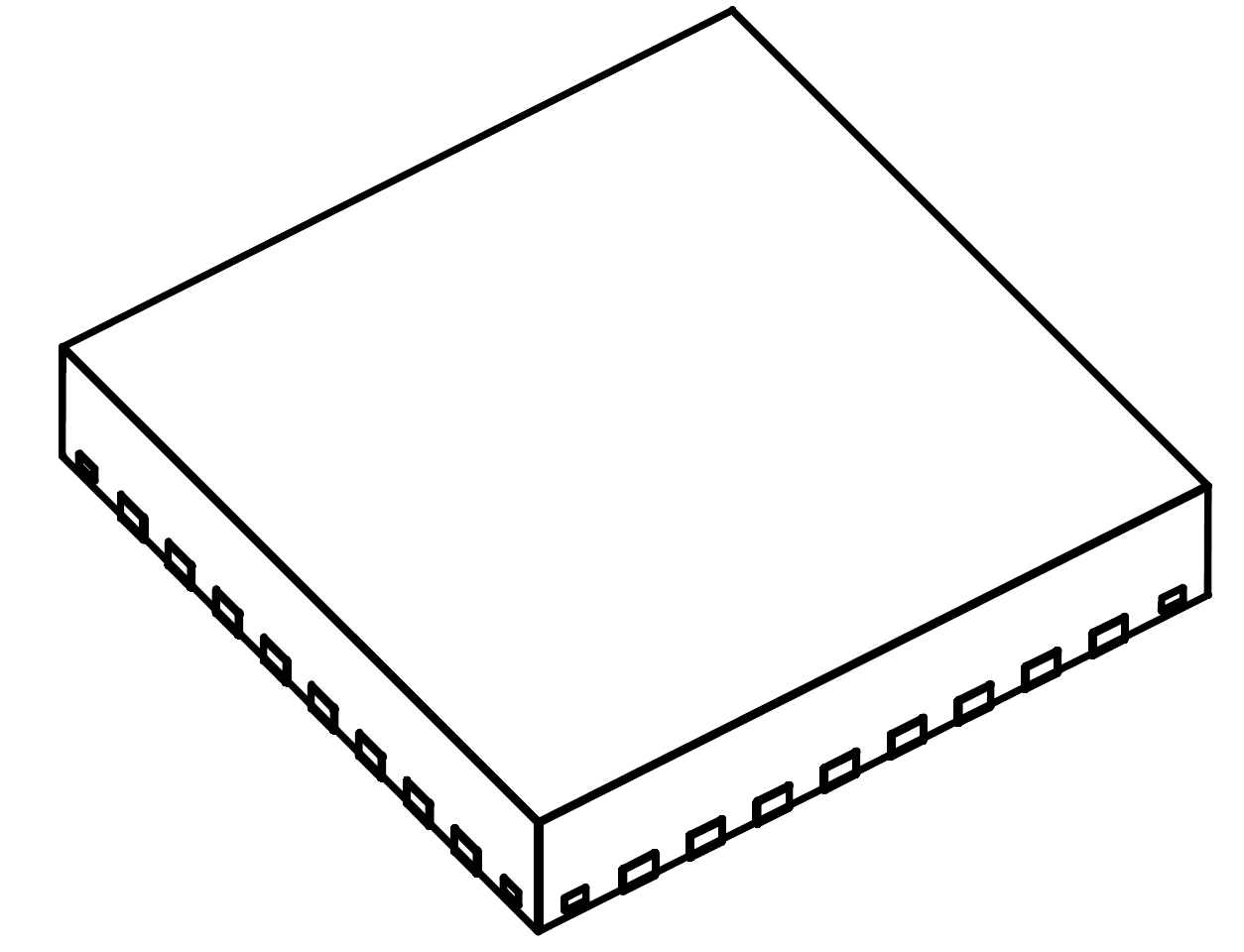

Package Image 东芝 TB9104FTG H-bridge driver for automobile产品 P-VQFN32-0505-0.50-009 封装图片
Pins 32
Mounting Surface Mount
Package Dimensions 查看
Land pattern dimensions 查看
SamacSys CAD model
(Symbol, Footprint and 3D model)
Download from SamacSys<br>(Note1)(Note2)

Download from SamacSys
(Note1)(Note2)

 Please refer to the link destination to check the detailed size.

(Note1)

SamacSys is a wholly owned subsidiary of Supplyframe, Inc. CAD models (Symbol/Footprint /3D model) are provided by Supplyframe, Inc. The footprints are generated based on the specifications of SamacSys.

(Note2)

Please note that the footprint dimensions may differ from the reference Land Pattern dimensions provided on our website.

电气特性

项目 符号 条件 单位
Power supply voltage (Max) - - 18 V
Power supply voltage (Min) - - 5.7 V
