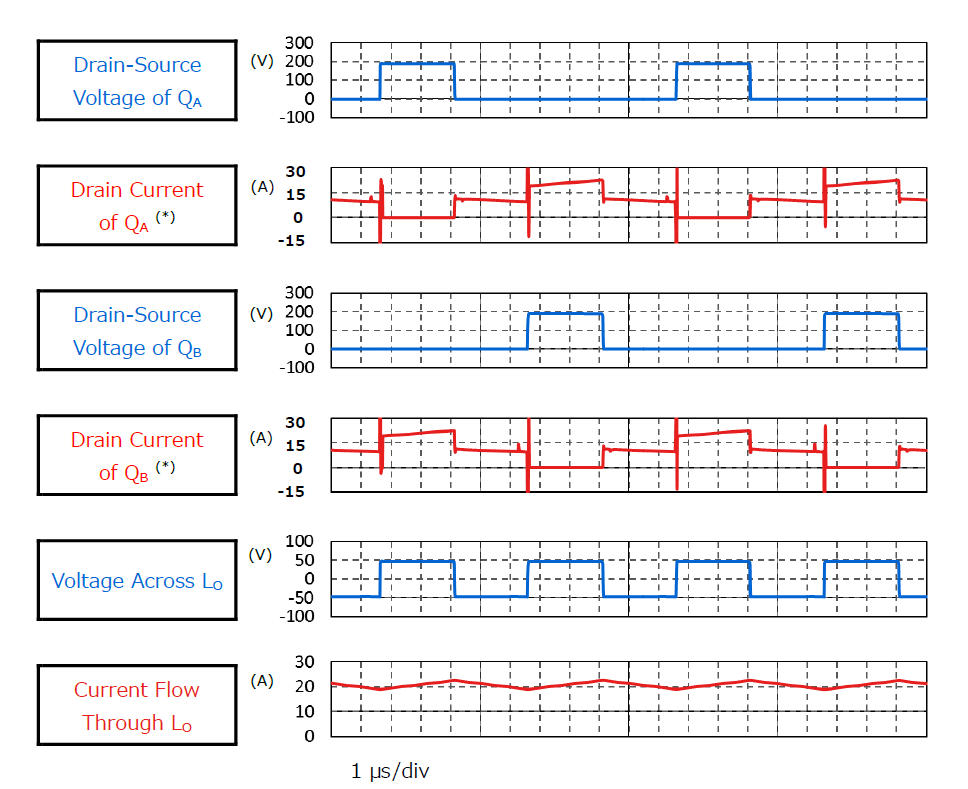

该参考设计提供了基于OrCAD®的仿真电路,仿真结果和设计指南。这是用于设计AC-DC电源的全桥拓扑。
输入电压 | DC 380V |
---|---|
输出电压 | DC 48V |
输出功率 | 1000W |
设计文档包括下列文档。
设计数据包括下列内容。
器件型号 | 器件目录 | 搭载部位・数量 | 说明 |
---|---|---|---|
功率MOSFET(N沟道500V<VDSS≤700V) | 原边・4 | N沟道MOSFET,600V,0.155Ω@10V,TO-247,DTMOSⅣ | |
功率MOSFET(N沟道150V<VDSS≤250V) | 副边 同步整流・6 |
N沟道MOSFET,250V,0.052Ω@10V,SOP Advance,U-MOSⅧ-H |
