该参考设计提供了适用于消费类应用和嵌入式电源的DC 24V/200W AC-DC电源的规格、方框图和PCB布局数据。
输入电压 | AC 90至264V |
---|---|
输出电压 | DC 24V |
输出功率 | 200W |
电路拓扑 | PFC,LLC+同步整流 |

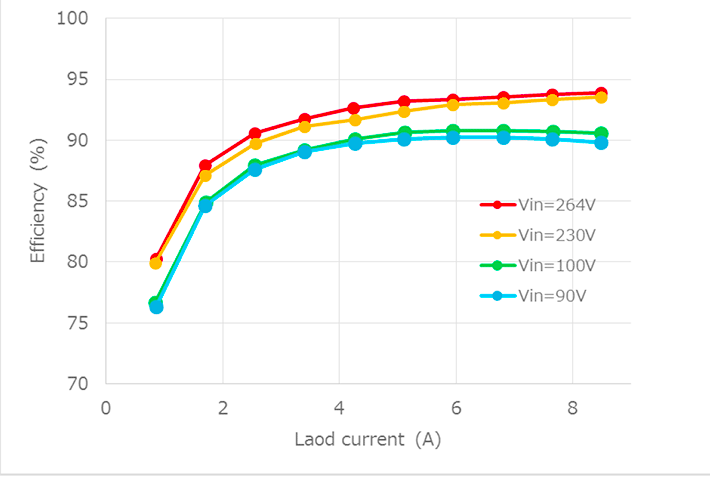

设计文档包括下列文档。
设计数据包括下列内容。
器件型号 | 器件目录 | 搭载部位・数量 | 说明 |
---|---|---|---|
功率MOSFET(N沟道500V<VDSS≤700V) | PFC・1,原边・2 | N沟道MOSFET,650V,0.29Ω@10V,TO-220SIS,DTMOSⅤ | |
功率MOSFET(单N沟道30V<VDSS≤60V) | 副边・2 | N沟道MOSFET,60V,0.0095Ω@10V,SOP Advance,U-MOSⅨ-H | |
光耦 | 原边和副边之间的通信・2 | 光耦(光电晶体管输出),直流输入,5000Vrms,DIP4(TLP785F) |
