MOSFET栅极驱动IC概述

东芝MOSFET栅极驱动器IC是一款用于外部N沟道MOSFET的开关控制器件,内置电荷泵和保护电路。它们采用超紧凑封装(1.2mm×0.8mm)、低静态电流和宽输入电压。将它们与N沟道MOSFET结合使用,该解决方案可实现小尺寸和低损耗的电源线。东芝可提供多种过电压锁定功能。

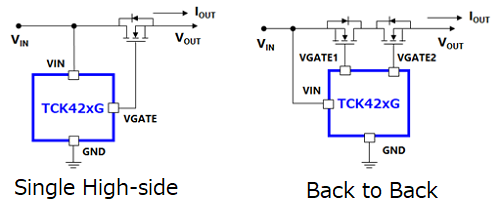

图 1:负载开关电路(单高边,背对背)
图 1:负载开关电路(单高边,背对背)
图2:电源多路复用器电路
图2:电源多路复用器电路

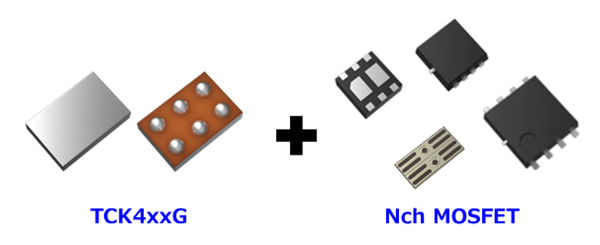

TCK4xxG+N沟道MOSFET

东芝MOSFET栅极驱动器IC可用于单高边、背对背负载开关和电源多路复用器。

东芝栅极驱动IC可与多种东芝N沟道MOSFET结合使用。东芝可提供模拟、开关评估和SOA(安全工作区)等各种技术数据的支持。

电源多路复用器电路

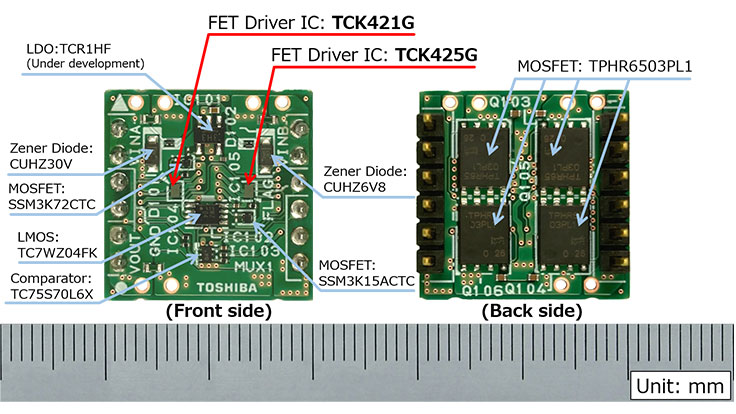

在一个小型PCB上实现具有2个输入和1个输出的电源多路复用器电路。
请访问并下载下方内容以获取更多详细信息

电源多路复用器电路

器件型号 TCK401G TCK402G TCK420G TCK421G TCK422G TCK423G TCK424G TCK425G
数据表 PDF(526KB) PDF(3156KB)
库存查询 StockChecking StockChecking StockChecking StockChecking StockChecking StockChecking StockChecking StockChecking
最大输入电压
VIN最大值
40V
输入电压范围
VIN
2.7V至28V
栅极驱动电压
VGATE
4V至10V(VIN依从) 10V 5.6V
封装 WCSP6E
(1.2mm×0.8mm,厚度:0.55mm)
WCSP6G
(1.2mm×0.8mm,厚度:0.35mm)
过压锁定阈值 28V 27.73V 23.26V 14.29V 10.83V 6.31V
欠压锁定阈值 2.7V 2V
使用方式 共源极
(可以单高边)
共漏极
(可以单高边)
