点击产品目录,您可以查看线性IC器件命名规则。
1. TC代表东芝CMOS
2. 负载开关IC
3. 产品功能
4. 3和4的组合表示一种封装
举例:
101G WCSP6B
106G WCSP4
1. 电路类型
2. 这里的数字表示运算放大器和比较器
3. 电路数
4. 序列号
二级货源产品使用相同的自有编号。原装产品的编号。
5. 封装类型
1. TPD表示智能功率器件
2. 开关/驱动电路的类型
3. 序列号
4. 封装类型
1. 东芝CMOS小型贴片式封装LDO稳压器
2. 引脚数
3.

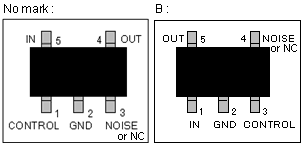

4. 用空白或字母B或C区分5引脚单输出LDO稳压器之间引脚分布的差异。
(采用SM6封装的TCR6DAxxxx和采用UF6封装的TCR6DAxxxU都属于双输出LDO稳压器,具有不同的引脚分布。)
5. 输出电压
6.
7. 封装
1. 东芝CMOS小型贴片式封装LDO稳压器
2. 最大输出电流
3. 特性
通过输出电流的组合来表示功能和性能。
符号 | 过流保护 | 热关断 |
输出放电 |
快速瞬态响应 |
浪涌电流保护 |
---|---|---|---|---|---|
2B | X | X | |||
2E | X | X | X | ||
2D | X | X | X | ||
3D | X | X | X | X | X |
4. 封装
5. 输出电压
1. 东芝小型贴片式封装双极LDO稳压器
2. 引脚数
3. 电路配置
这个部分显示产品的电路配置。
4. 引脚分布类型
当第4部分有“S”时,它显示引脚分布如下。
当第4部分有“H”或“D”时,此处的符号为无标记。
5. 当第4部分有“S”时,此处的数字显示其输出电压值的10倍。
当第4部分有“H”或“D”时,此处的数字为序列号。
6. 封装
1. TA表示东芝线性IC
2. 极性,产品线
这个部分显示了产品的极性。
3. 输出电流(Io)
这个部分显示产品的输出电流
根据其输出电压的电平将其分为四种类型。
4. 功能
这个部分显示了产品的功能。
5. 电压(Vo)
6. 封装类型等
1. TA表示东芝线性IC
2. 极性,产品线
这个部分显示了产品的极性。
3. "D" 附加于低压差产品的号码。(不包括48和58)
4. 输出电流
这个部分显示了产品的输出电流。根据其输出电压的电平将其分为四种类型。
5. 输出电压
A(正&负输出电压)
B(低压差类型)
6. 封装类型等
根据其封装和输出电压精度,可分为四种类型。
1. 东芝晶体管阵列
2. 序列号
3. A:输出电压:50V
4. 封装类型
5. G:符合RoHS
*: 有些产品与惯例不匹配。
