SSM6K513NU

Small Low ON resistance MOSFETs

相关参考设计(4)

全部 Data sheet 应用说明 Other

数据表

SSM6K513NU 数据表/日文[Oct,2024]PDF: 432KB

数据表

SSM6K513NU 数据表/英文[Oct,2024]PDF: 313KB

Simulation Model

PSpice Model[Oct,2016]lib: 3KB

Simulation Model

LTspice Model[Feb,2019]ZIP: 11KB

Reliability Information

Reliability Data[Oct,2024]PDF: 274KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Jan,2025]PDF: 87KB

Environment Information

Certificate on Content of SVHC of REACH[Jan,2025]PDF: 87KB

Application Scope	Power Management Switches
Polarity	N-ch
Generation	U-MOSⅨ-H
Internal Connection	Single
RoHS Compatible Product(s) (#)	Available

封装

Toshiba Package Name	SOT-1220 (UDFN6B)
Package Image
Package Code	SOT-1220
Pins	6
Mounting	Surface Mount
Width×Length×Height (mm)	2.0×2.0×0.75
Package Dimensions	查看
Land pattern dimensions	查看
CAD data (Symbol, Footprint and 3D model)	Download from UltraLibrarian^® in your desired CAD format (Note)

Please refer to the link destination to check the detailed size.

(Note)

Ultra Librarian^® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

绝对最大额定值

项目	符号	值	单位
Drain-Source voltage	V_DSS	30	V
Gate-Source voltage	V_GSS	+/-20	V
Drain current	I_D	15	A
Power Dissipation	P_D	1.25	W

电气特性

项目	符号	条件	值	单位
Gate threshold voltage (Max)	V_th	-	2.1	V
Gate threshold voltage (Min)	V_th	-	1.1	V
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=4.5V	12	mΩ
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=10V	8.9	mΩ
Input capacitance (Typ.)	C_iss	-	1130	pF
Total gate charge (Typ.)	Q_g	V_GS=4.5V	7.5	nC

文档

全部选中
如果该复选框不能被选中，则不能批量下载相应的文档。

数据表 SSM6K513NU 数据表/日文

PDF: 432KB

Oct,2024

数据表 SSM6K513NU 数据表/英文

PDF: 313KB

Oct,2024

Simulation Model PSpice Model lib

lib: 3KB

Oct,2016

Simulation Model LTspice Model (Note) ZIP

ZIP: 11KB

Feb,2019

Reliability Information Reliability Data

PDF: 274KB

Oct,2024

UPDATED Environment Information Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances

PDF: 87KB

Jan,2025

UPDATED Environment Information Certificate on Content of SVHC of REACH

PDF: 87KB

Jan,2025

相关技术数据 Surface Mount Small Signal MOSFET Precautions for use

PDF: 830KB

Jan,2022

UPDATED Catalog Mini catalog Introduction of Semi-power & small-size low RON MOSFET

PDF: 433KB

Dec,2024

UPDATED Catalog Mini catalog Introduction of small-package MOSFET

PDF: 680KB

Dec,2024

Catalog Selection Guide MOSFETs 2024 Rev2.0

PDF: 10837KB

Jul,2024

Catalog Selection Guide Small Signal 2024 Rev2.0

PDF: 15538KB

Jul,2024

(Note)

LTspice ^® is a trademark and simulation software of ADI (Analog Devices, Inc.).

Orderable part number (example)	MOQ(pcs)	Reliability Information	RoHS	Note
SSM6K513NU,LF	3000		Yes	General Use

参考设计

MOSFET驱动IC应用和TCK401G的电路

介绍了TCK401G的特性、负载开关电路的应用、设计参考文件、可以导入到EDA工具的电子文件、以及组成器件的概述

详细信息

MOSFET驱动IC应用和TCK402G的电路

该参考设计提供了有关转换速率控制、自动放电和其他内置功能的技术信息，用于设计适用于USB-PD的负载开关电路。

详细信息

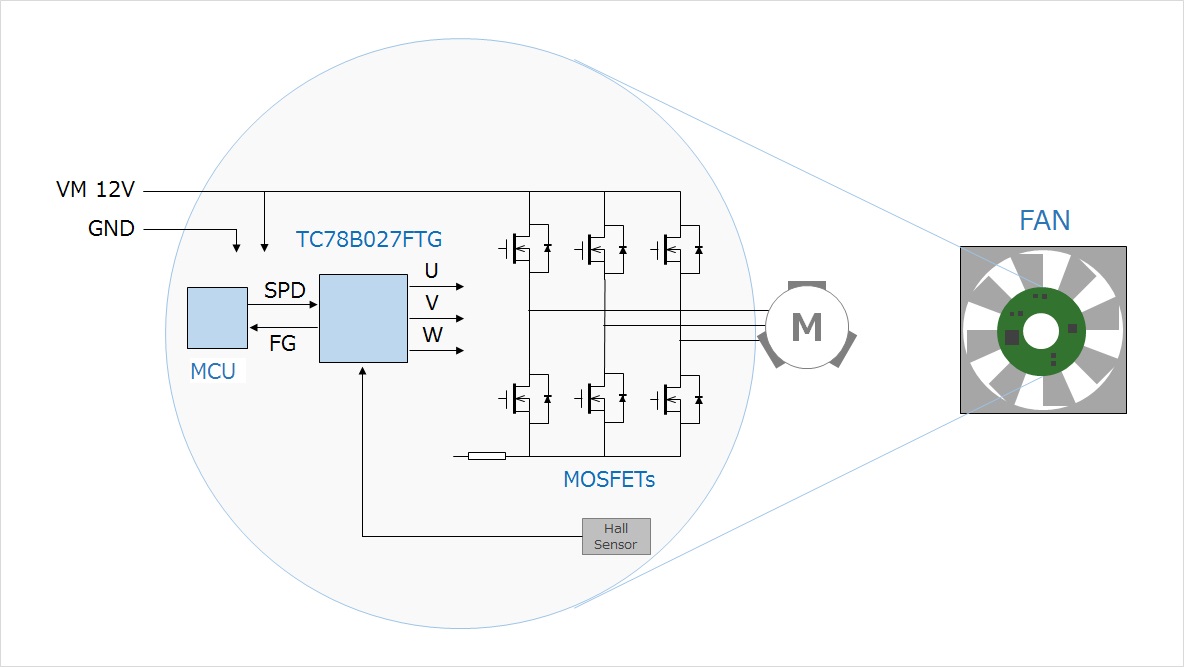

用于风扇驱动的直流无刷电机预驱IC TC78B027FTG的应用电路
