TPN1200APL

Power MOSFET (N-ch single 60V<VDSS≤150V)

  • 相关参考设计(3)

产品概要

Application Scope High-Efficiency DC-DC Converters / Switching Voltage Regulators / Motor Drivers
Polarity N-ch
Generation U-MOSⅨ-H
Internal Connection Single
RoHS Compatible Product(s) (#) Available

封装

Toshiba Package Name TSON Advance
Package Image TSON Advance
Pins 8
Mounting Surface Mount
Width×Length×Height
(mm)
3.3×3.3×0.85
Package Dimensions 查看
Land pattern dimensions 查看
Ultra Librarian® CAD model
(Symbol, Footprint and 3D model)
Download from UltraLibrarian<sup>®</sup> in your desired CAD format<br>(Note1)(Note3)

Download from UltraLibrarian® in your desired CAD format
(Note1)(Note3)

SamacSys CAD model
(Symbol, Footprint and 3D model)
Download from SamacSys<br>(Note2)(Note3)

Download from SamacSys
(Note2)(Note3)

 Please refer to the link destination to check the detailed size.

(Note1)

Ultra Librarian® is a Registered trademark and CAD model library of EMA (EMA Design Automation, Inc.). CAD models (Symbol/Footprint /3D model) are provided by UltraLibrarian®. The footprints are generated based on the specifications of Ultra Librarian®.

(Note2)

SamacSys is a wholly owned subsidiary of Supplyframe, Inc. CAD models (Symbol/Footprint /3D model) are provided by Supplyframe, Inc. The footprints are generated based on the specifications of SamacSys.

(Note3)

Please note that the footprint dimensions may differ from the reference Land Pattern dimensions provided on our website.

绝对最大额定值

项目 符号 单位
Drain-Source voltage VDSS 100 V
Gate-Source voltage VGSS +/-20 V
Drain current ID 66 A
Power Dissipation PD 104 W

电气特性

项目 符号 条件 单位
Gate threshold voltage (Max) Vth - 2.5 V
Gate threshold voltage (Min) Vth - 1.5 V
Drain-Source on-resistance (Max) RDS(ON) |VGS|=4.5V 20
Drain-Source on-resistance (Max) RDS(ON) |VGS|=10V 11.5
Input capacitance (Typ.) Ciss - 1425 pF
Total gate charge (Typ.) Qg VGS=10V 24 nC
Output charge (Typ.) Qoss - 24 nC
Reverse recovery time (Typ.) trr - 41 ns
Reverse recovery charge (Typ.) Qrr - 47 nC
购买及样品申请
请联系东芝官方代理商或就近联系我们的销售网点。
您可以通过以下链接搜索及购买少量样品。

文档

  • 如果该复选框不能被选中,则不能批量下载相应的文档。

Jun,2021

Jul,2021

Jan,2023

Oct,2024

(Note)

LTspice ® is a trademark and simulation software of ADI (Analog Devices, Inc.).

可订购器件型号

Orderable part number
(example)
MOQ(pcs) Reliability
Information
RoHS
TPN1200APL,L1Q 5000 Yes

参考设计

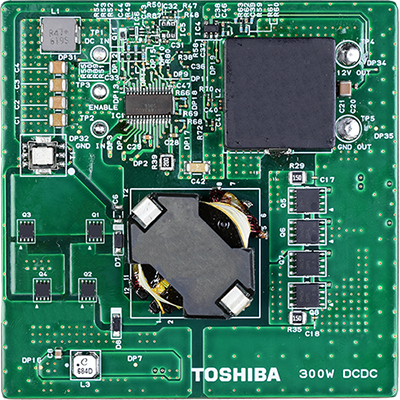

300W隔离式DC-DC转换器的特点
300W隔离式DC-DC转换器
介绍了电源的概述,设计参考文件,可以导入到EDA工具的电子文件,以及组成器件的概述

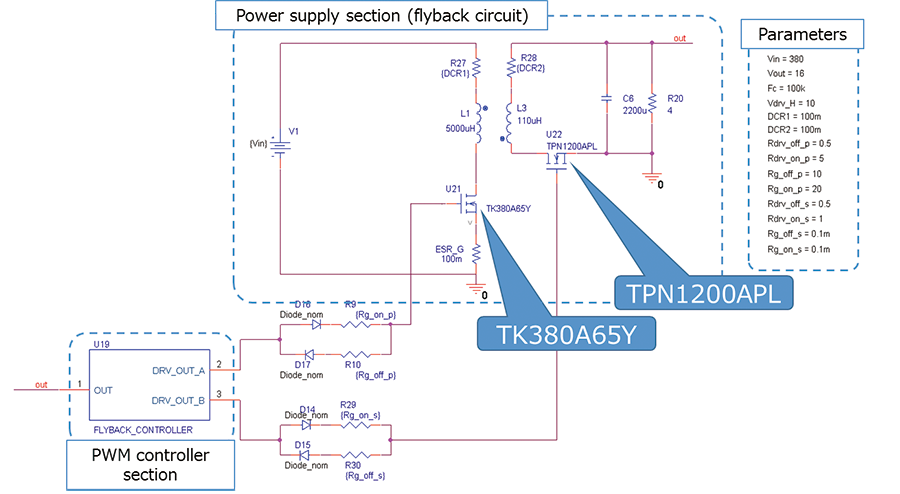

反激式AC-DC电源基础仿真电路的电路
