TPH1R306PL

Power MOSFET (N-ch single 30V<VDSS≤60V)

  • 相关参考设计(3)

数据表

TPH1R306PL 数据表/日文[Oct,2019]PDF: 806KB

数据表

TPH1R306PL 数据表/英文[Oct,2019]PDF: 691KB

Simulation Model

PSpice Model[Jun,2021]ZIP: 42KB

Simulation Model

LTspice Model[Feb,2023]ZIP: 46KB

Simulation Model

SIMetrix Model[May,2024]ZIP: 9KB

Thermal Simulation Model

Simplified CFD Model[Nov,2022]ZIP: 17KB

Reliability Information

Reliability Data[May,2025]PDF: 170KB

相关技术数据

MOSFET SPICE model grade[May,2023]PDF: 1639KB

相关技术数据

Electrical Characteristics: Power MOSFET Application Notes[Feb,2023]PDF: 1266KB

相关技术数据

Simplified CFD Model Application Note[Nov,2022]PDF: 993KB

相关技术数据

Efficiency Evaluation and Loss Analysis of 300W isolated DC-DC converter[Sep,2021]PDF: 2324KB

相关技术数据

Quick Reference Guide for Thermal Design for Power Semiconductor SMD type: Part 2[Dec,2020]PDF: 3593KB

相关技术数据

Efficiency evaluation of Half-bridge DC-DC converter supporting 48V Bus system[Sep,2020]PDF: 1517KB

相关技术数据

Avalanche energy calculation[Mar,2020]PDF: 562KB

相关技术数据

Quick Reference Guide for Thermal Design for Discrete Semiconductor Devices[Feb,2020]PDF: 2104KB

相关技术数据

Resonant Circuits and Soft Switching[Nov,2019]PDF: 1071KB

相关技术数据

U-MOSⅨ-H 60V Low VDS spike TPH1R306P1[Aug,2019]PDF: 1081KB

相关技术数据

Hints and Tips for Thermal Design part3[Feb,2019]PDF: 3165KB

相关技术数据

Reverse Recovery Operation and Destruction of MOSFET Body Diode[Sep,2018]PDF: 472KB

相关技术数据

MOSFET Secondary Breakdown[Sep,2018]PDF: 450KB

相关技术数据

RC Snubbers for Step-Down Converters[Sep,2018]PDF: 1846KB

相关技术数据

Structures and Characteristics: Power MOSFET Application Notes[Jul,2018]PDF: 331KB

相关技术数据

Maximum Ratings: Power MOSFET Application Notes[Jul,2018]PDF: 705KB

相关技术数据

Selecting MOSFETs and Consideration for Circuit Design: Power MOSFET Application Notes[Jul,2018]PDF: 848KB

相关技术数据

Thermal Design and Attachment of a Thermal Fin: Power MOSFET Application Notes[Jul,2018]PDF: 789KB

相关技术数据

Parasitic Oscillation and Ringing: Power MOSFET Application Notes[Jul,2018]PDF: 1394KB

相关技术数据

Parasitic Oscillation between Parallel Power MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1178KB

相关技术数据

MOSFET Gate Drive Circuit: Power MOSFET Application Notes[Jul,2018]PDF: 1215KB

相关技术数据

Impacts of the dv/dt Rate on MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1077KB

相关技术数据

MOSFET Avalanche Ruggedness: Power MOSFET Application Notes[Jul,2018]PDF: 616KB

相关技术数据

Hints and Tips for Thermal Design for Discrete Semiconductor Devices[Jul,2018]PDF: 1266KB

相关技术数据

Calculating the Temperature of Discrete Semiconductor Devices[Jul,2018]PDF: 965KB

相关技术数据

Derating of the MOSFET Safe Operating Area[Jul,2018]PDF: 656KB

相关技术数据

MOSFET Self-Turn-On Phenomenon[Jul,2018]PDF: 1338KB

相关技术数据

Discrete Semiconductor Devices Hints and Tips for Thermal Design Part 2[Jul,2018]PDF: 1069KB

相关技术数据

Motor Control (Vacuum Cleaners)[Jul,2018]PDF: 2483KB

Catalog

Selection Guide MOSFETs 2026 Rev1.0[Feb,2026]PDF: 4223KB

数据表

TPH1R306PL 数据表/日文[Oct,2019]PDF: 806KB

数据表

TPH1R306PL 数据表/英文[Oct,2019]PDF: 691KB

相关技术数据

MOSFET SPICE model grade[May,2023]PDF: 1639KB

相关技术数据

Electrical Characteristics: Power MOSFET Application Notes[Feb,2023]PDF: 1266KB

相关技术数据

Simplified CFD Model Application Note[Nov,2022]PDF: 993KB

相关技术数据

Efficiency Evaluation and Loss Analysis of 300W isolated DC-DC converter[Sep,2021]PDF: 2324KB

相关技术数据

Quick Reference Guide for Thermal Design for Power Semiconductor SMD type: Part 2[Dec,2020]PDF: 3593KB

相关技术数据

Efficiency evaluation of Half-bridge DC-DC converter supporting 48V Bus system[Sep,2020]PDF: 1517KB

相关技术数据

Avalanche energy calculation[Mar,2020]PDF: 562KB

相关技术数据

Quick Reference Guide for Thermal Design for Discrete Semiconductor Devices[Feb,2020]PDF: 2104KB

相关技术数据

Resonant Circuits and Soft Switching[Nov,2019]PDF: 1071KB

相关技术数据

U-MOSⅨ-H 60V Low VDS spike TPH1R306P1[Aug,2019]PDF: 1081KB

相关技术数据

Hints and Tips for Thermal Design part3[Feb,2019]PDF: 3165KB

相关技术数据

Reverse Recovery Operation and Destruction of MOSFET Body Diode[Sep,2018]PDF: 472KB

相关技术数据

MOSFET Secondary Breakdown[Sep,2018]PDF: 450KB

相关技术数据

RC Snubbers for Step-Down Converters[Sep,2018]PDF: 1846KB

相关技术数据

Structures and Characteristics: Power MOSFET Application Notes[Jul,2018]PDF: 331KB

相关技术数据

Maximum Ratings: Power MOSFET Application Notes[Jul,2018]PDF: 705KB

相关技术数据

Selecting MOSFETs and Consideration for Circuit Design: Power MOSFET Application Notes[Jul,2018]PDF: 848KB

相关技术数据

Thermal Design and Attachment of a Thermal Fin: Power MOSFET Application Notes[Jul,2018]PDF: 789KB

相关技术数据

Parasitic Oscillation and Ringing: Power MOSFET Application Notes[Jul,2018]PDF: 1394KB

相关技术数据

Parasitic Oscillation between Parallel Power MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1178KB

相关技术数据

MOSFET Gate Drive Circuit: Power MOSFET Application Notes[Jul,2018]PDF: 1215KB

相关技术数据

Impacts of the dv/dt Rate on MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1077KB

相关技术数据

MOSFET Avalanche Ruggedness: Power MOSFET Application Notes[Jul,2018]PDF: 616KB

相关技术数据

Hints and Tips for Thermal Design for Discrete Semiconductor Devices[Jul,2018]PDF: 1266KB

相关技术数据

Calculating the Temperature of Discrete Semiconductor Devices[Jul,2018]PDF: 965KB

相关技术数据

Derating of the MOSFET Safe Operating Area[Jul,2018]PDF: 656KB

相关技术数据

MOSFET Self-Turn-On Phenomenon[Jul,2018]PDF: 1338KB

相关技术数据

Discrete Semiconductor Devices Hints and Tips for Thermal Design Part 2[Jul,2018]PDF: 1069KB

相关技术数据

Motor Control (Vacuum Cleaners)[Jul,2018]PDF: 2483KB

Simulation Model

PSpice Model[Jun,2021]ZIP: 42KB

Simulation Model

LTspice Model[Feb,2023]ZIP: 46KB

Simulation Model

SIMetrix Model[May,2024]ZIP: 9KB

Thermal Simulation Model

Simplified CFD Model[Nov,2022]ZIP: 17KB

Reliability Information

Reliability Data[May,2025]PDF: 170KB

Catalog

Selection Guide MOSFETs 2026 Rev1.0[Feb,2026]PDF: 4223KB

产品概要

Application Scope High-Efficiency DC-DC Converters / Switching Voltage Regulators / Motor Drivers
Polarity N-ch
Generation U-MOSⅨ-H
Internal Connection Single
RoHS Compatible Product(s) (#) Available

封装

Toshiba Package Name SOP Advance
Package Image 东芝 TPH1R306PL Power MOSFET (N-ch single 30V&lt;VDSS&le;60V)产品 SOP Advance 封装图片
Pins 8
Mounting Surface Mount
Width×Length×Height
(mm)		 5.0×6.0×0.95
Package Dimensions 查看
Land pattern dimensions 查看
Ultra Librarian® CAD model
(Symbol, Footprint and 3D model)		 Download from UltraLibrarian<sup>®</sup> in your desired CAD format<br>*1 *3

Download from UltraLibrarian® in your desired CAD format
*1 *3
SamacSys CAD model
(Symbol, Footprint and 3D model)		 Download from SamacSys<br>*2 *3

Download from SamacSys
*2 *3

 Please refer to the link destination to check the detailed size.

*1

Ultra Librarian® is a Registered trademark and CAD model library of EMA (EMA Design Automation, Inc.). CAD models (Symbol/Footprint /3D model) are provided by UltraLibrarian®. The footprints are generated based on the specifications of Ultra Librarian®.

*2

SamacSys is a wholly owned subsidiary of Supplyframe, Inc. CAD models (Symbol/Footprint /3D model) are provided by Supplyframe, Inc. The footprints are generated based on the specifications of SamacSys.

*3

Please note that the footprint dimensions may differ from the reference Land Pattern dimensions provided on our website.

绝对最大额定值

项目 符号 值 单位
Drain-Source voltage VDSS 60 V
Gate-Source voltage VGSS +/-20 V
Drain current ID 260 A
Power Dissipation PD 170 W

电气特性

项目 符号 条件 值 单位
Gate threshold voltage (Max) Vth - 2.5 V
Gate threshold voltage (Min) Vth - 1.5 V
Drain-Source on-resistance (Max) RDS(ON) |VGS|=4.5V 2.3 mΩ
Drain-Source on-resistance (Max) RDS(ON) |VGS|=10V 1.34 mΩ
Input capacitance (Typ.) Ciss - 6250 pF
Total gate charge (Typ.) Qg VGS=10V 91 nC
Output charge (Typ.) Qoss - 77.5 nC
Reverse recovery time (Typ.) trr - 47 ns
Reverse recovery charge (Typ.) Qrr - 48 nC
购买及样品申请
请联系东芝官方代理商或就近联系我们的销售网点。
您可以通过以下链接搜索及购买少量样品。

文档

  • 如果该复选框不能被选中，则不能批量下载相应的文档。

Jun,2021

Feb,2023

May,2024

Nov,2022

May,2025

*1

LTspice ® is a trademark and simulation software of ADI (Analog Devices, Inc.).

*2

SIMetrix® is simulation software and registered trademarks of SIMetrix Technologies Ltd.

可订购器件型号

Orderable part number
(example)		 MOQ(pcs) Reliability
Information		 RoHS 库存查询
TPH1R306PL,LQ 5000 Yes

参考设计

MOSFET（TPH1R306PL）应用电路的并联操作的器件和PCB印制线的寄生电感
MOSFET（TPH1R306PL）应用电路的并联操作
该参考设计提供了使用60V MOSFET并联运行以提高输出功率的仿真模型／电路和结果示例。
详细信息

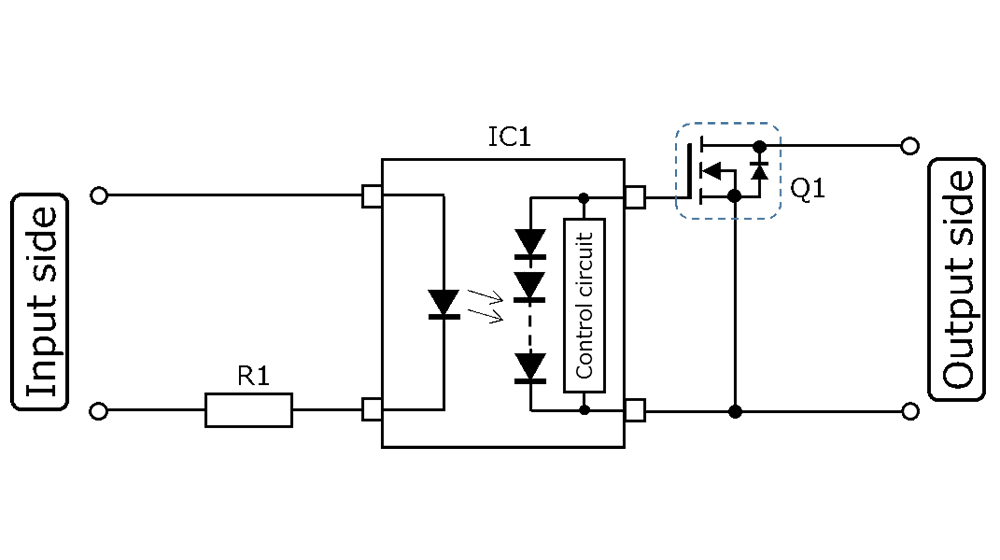

光伏输出光耦和MOSFET替代机械式继电器的HVAC应用
光伏输出光耦和MOSFET替代机械式继电器
具有光电输出耦合器TLP3906和MOSFET TPH1R306PL的固态继电器。介绍固态继电器电路替代机械继电器的设计指南。
详细信息
适用于服务器的1.1kW ITTF（交错并联双晶体管正激）AC-DC转换器
本设计是一款面向服务器的AC-DC转换器，可将输入AC 90至264V转换为DC 12V，最大输出功率达1.1kW。
其搭载输出ORing电路，支持冗余运行模式。
在PCB上安装时，会根据高度选择组件，使其适用于1U尺寸的电源。
我们提供包括电路设计要点、使用说明、各部分调整方法、电路图、PCB布局数据等设计信息，以支持您的开发。
详细信息
