TLP5214

Photocoupler (photo-IC output)

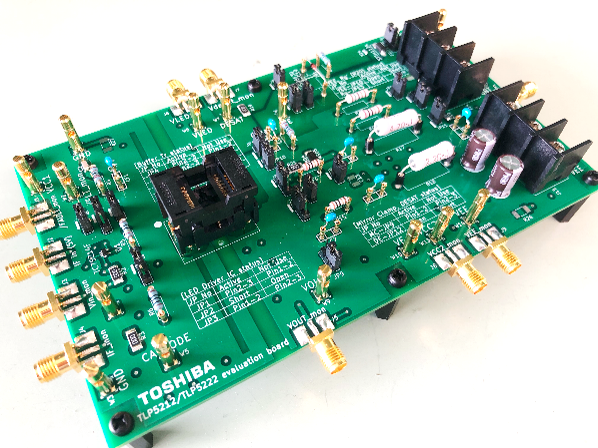

相关参考设计(1)

全部 Data sheet 应用说明 Other

数据表

TLP5214 数据表/日文[Oct,2019]PDF: 1090KB

数据表

TLP5214 数据表/英文[Oct,2019]PDF: 978KB

Simulation Model

PSpice Model[Dec,2023]ZIP: 20KB

Reliability Information

Reliability Data[Dec,2023]PDF: 199KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Dec,2024]PDF: 85KB

Environment Information

Certificate on Content of SVHC of REACH[Dec,2024]PDF: 85KB

相关技术数据

Smart Gate Driver Coupler Tips for Designing DESAT Detection Circuits[May,2022]PDF: 1055KB

相关技术数据

Smart Gate Driver TLP5214A/TLP5214/TLP5212/TLP5222 Application Note -Introduction-[Apr,2022]PDF: 1534KB

相关技术数据

Smart Gate Driver Coupler TLP5214/TLP5214A/TLP5212/TLP5222 Appication Note -Advanced edition-[Apr,2022]PDF: 2189KB

相关技术数据

Safety standards for photocouplers[Mar,2021]PDF: 753KB

相关技术数据

Gate Drive Coupler Notes on using power device gate negative bias power supply[Jan,2021]PDF: 1030KB

相关技术数据

Glossary of Photocoupler and Photorelay Terms[Mar,2018]PDF: 509KB

Catalog

Selection Guide Isolators and Solid State Relays 2024Rev2.0[Aug,2024]PDF: 14710KB

Catalog

Photocouplers and Photorelays[Apr,2020]PDF: 2619KB

数据表

TLP5214 数据表/日文[Oct,2019]PDF: 1090KB

数据表

TLP5214 数据表/英文[Oct,2019]PDF: 978KB

相关技术数据

Smart Gate Driver Coupler Tips for Designing DESAT Detection Circuits[May,2022]PDF: 1055KB

相关技术数据

Smart Gate Driver TLP5214A/TLP5214/TLP5212/TLP5222 Application Note -Introduction-[Apr,2022]PDF: 1534KB

相关技术数据

Smart Gate Driver Coupler TLP5214/TLP5214A/TLP5212/TLP5222 Appication Note -Advanced edition-[Apr,2022]PDF: 2189KB

相关技术数据

Safety standards for photocouplers[Mar,2021]PDF: 753KB

相关技术数据

Gate Drive Coupler Notes on using power device gate negative bias power supply[Jan,2021]PDF: 1030KB

相关技术数据

Glossary of Photocoupler and Photorelay Terms[Mar,2018]PDF: 509KB

Simulation Model

PSpice Model[Dec,2023]ZIP: 20KB

Reliability Information

Reliability Data[Dec,2023]PDF: 199KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Dec,2024]PDF: 85KB

Environment Information

Certificate on Content of SVHC of REACH[Dec,2024]PDF: 85KB

Catalog

Selection Guide Isolators and Solid State Relays 2024Rev2.0[Aug,2024]PDF: 14710KB

Catalog

Photocouplers and Photorelays[Apr,2020]PDF: 2619KB

产品概要

Feature	2.3mm low-profile package / Creepage and clearance 8mm / High temperature 110 degC operation
Application Scope	Factory automation / Inverter / PV inverter
Function	IGBT driver
Number of Circuits	1
Output Interface	totem-pole(BUF)
RoHS Compatible Product(s) (#)	Available
Safety Standard	Approved　:　UL 1577 / cUL (CSA Component Acceptance Service No. 5A) / EN 60747-5-5 (VDE) / EN IEC 62368-1 (VDE) / GB 4943.1-2022 (CQC) Download Online Certification of Safety Standard(UL 1577) Download Online Certification of Safety Standard(cUL)

封装

Toshiba Package Name	SO16L
Package Image
Pins	16
Mounting	Surface Mount
Width×Length×Height (mm)	10.3×10.0×2.1
Package Dimensions	查看
Land pattern dimensions	查看
CAD data (Symbol, Footprint and 3D model)	Download from UltraLibrarian^® in your desired CAD format (Note)

Please refer to the link destination to check the detailed size.

(Note)

Ultra Librarian^® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

绝对最大额定值

项目	符号	值	单位
Supply Voltage	V_CC	-0.5 to 35	V
Operating Temperature	T_opr	-40 to 110	℃

电气特性

项目	符号	条件	值	单位
Pulse width distortion	\|tpHL-tpLH\|	-	50	ns
Isolation voltage	BV_S	t=60sec	5000	Vrms
Common mode transient immunity	CM_H / CM_L	-	+/-35	kV/μs
I_CC (Max)	I_CC	-	3.5	mA
threshold input current(L/H)	I_FLH	-	6	mA
Output Current Iout (peak) (Max)	I_OP	-	+/-4.0	A
Propagation delay time (H/L)(Max)	tpHL	-	150	ns
Propagation delay time (L/H)(Max)	tpLH	-	150	ns
Supply Voltage(under Recommended Operating Conditions)(Max)	V_CC	-	30	V
Supply Voltage(under Recommended Operating Conditions)(Min)	V_CC	-	15	V

可订购器件型号

Orderable part number (example)	MOQ(pcs)	Reliability Information	RoHS	VDE
TLP5214(D4-TP,E	1500		Yes	Yes
TLP5214(TP,E	1500		Yes	-

Notes

The Part Number column shows representative part numbers only, which may not be available for sale in the precise form shown. Each Part Number constitutes a product family which may contain multiple associated product configurations.
(#) Under the RoHS Compatible Product(s) column, "Available" means at least one RoHS-Compatible product is available for sale in the corresponding product family. "None" means no RoHS Compatible product is available in that product family. For Toshiba's definitions of concepts related to the RoHS Directive and RoHS Compatibility, please click here.
The RoHS compatibility information provided herein is to the best of Toshiba's knowledge and belief accurate as of the date Toshiba entered the information into this database. Information is subject to change at any time without notice.
Please contact your Toshiba sales representative for detailed environmental information about each specific part number or product, such as RoHS compatibility or material content. Please use Toshiba products only in compliance with all applicable laws and regulations concerning the inclusion or use of controlled substances, including without limitation the RoHS Directive.TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.
Reliability data are provided for your reference only, please contact your Toshiba sales representative for detailed reliability information about each part number.
For product delivery, additional characters will be added to the part numbers shown on this website. For details, please ask your local distributor, or send an inquiry accessed from "Contact Us" on this website.
