该参考设计提供了用于通信设备的1kW非隔离Buck-Boost DC-DC转换器的设计指南、数据和其他内容。
Click on components for more details
输入电压 | DC -60V~-36V |
---|---|
输出电压 | DC 32V/DC 54V |
输出功率 | 1kW |

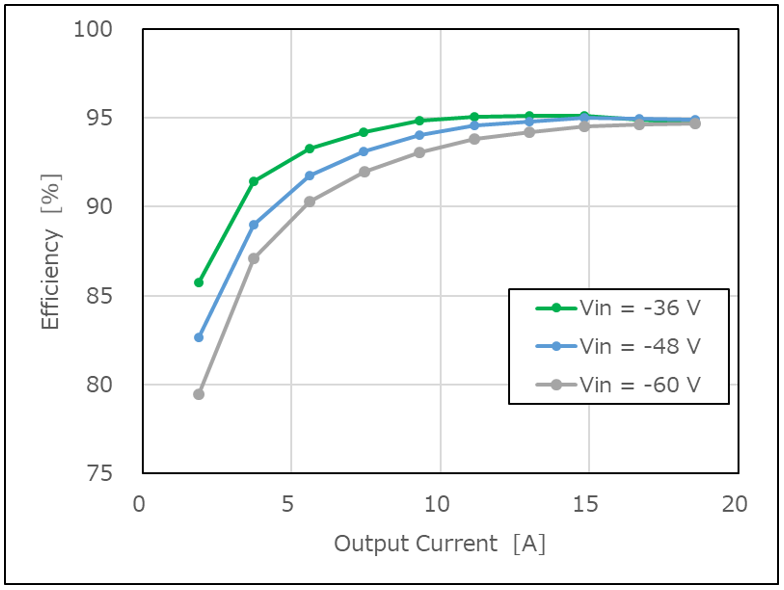

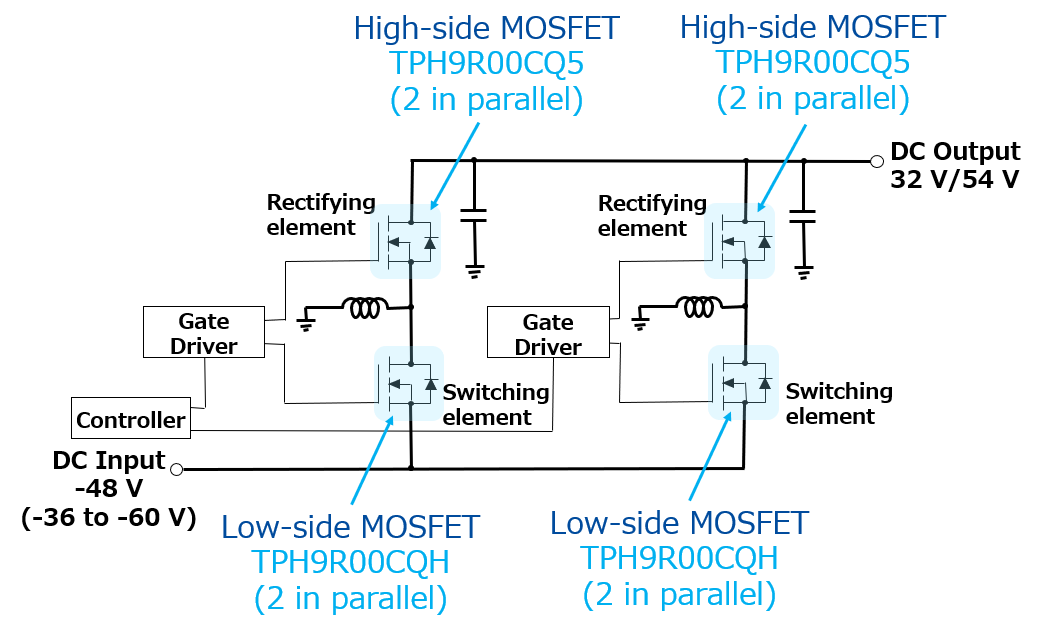

电路拓扑 | 2相交错式非隔离Buck-Boost 转换器电路 |
设计文档包括下列文档。
设计数据包括下列内容。
器件型号 | 器件目录 | 搭载部位・数量 | 说明 |
---|---|---|---|
功率MOSFET(N沟道单60V<VDSS≤150V) | 同步整流器・4 | N沟道MOSFET,150V,0.009Ω@10V,Qrr=34nC@100A/μs,SOP Advance/SOP Advance(N),U-MOSⅩ-H | |
功率MOSFET(N沟道单60V<VDSS≤150V) | 开关・4 | N沟道MOSFET,150V,0.009Ω@10V,SOP Advance/SOP Advance(N),U-MOSⅩ-H |
