洗衣机

总方框图

洗衣机

单击总方框图中想要查看详细信息的区域。将显示我们建议的子方框图的链接。

AC-DC转换器电路

提供主电源的AC-DC转换器电路示例

PFC电路

主电源电路中的PFC电路示例

主电机驱动单元

主电机驱动单元（MCU（控制器）＋栅极驱动IC＋IPM）

MCU（控制器）、栅极驱动IC和IPM组合的主电机驱动电路示例

主电机驱动单元（MCU（控制器）＋栅极驱动IC＋MOSFET）

MCU（控制器）、栅极驱动IC和MOSFET组合的主电机驱动电路示例

水泵驱动单元

水泵驱动单元（MCD（控制器）+高压IPD）

水泵电机驱动电路结合MCD（控制器）和高电压IPD的示例

通信单元

无线通信单元的示例

传感器输入单元

各种传感器信号输入电路示例

操作单元（按键／LED）

带按键和LED的操作电路示例

操作单元（触摸屏）

带触摸屏的操作电路示例

子方框图

AC-DC转换器电路

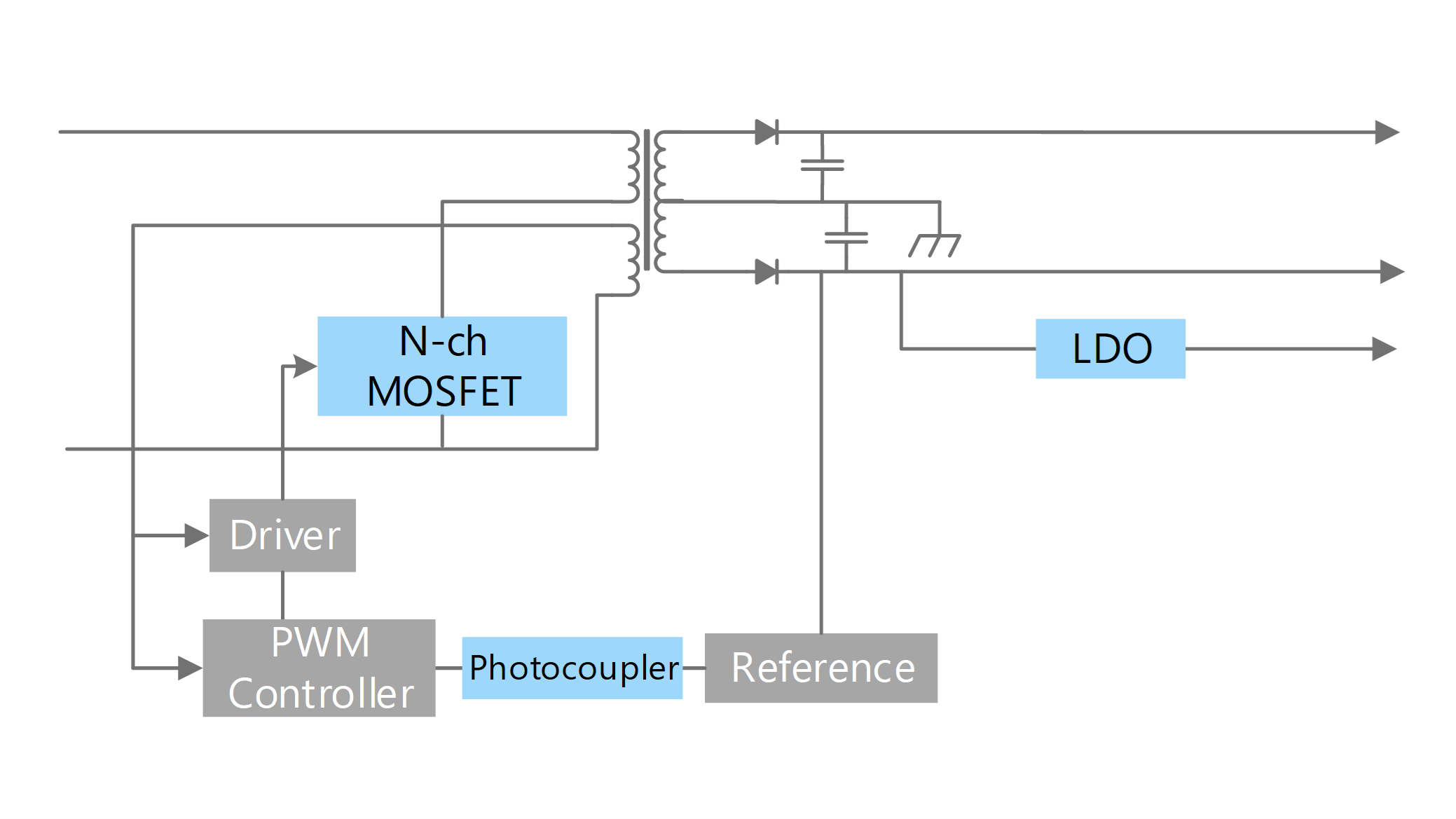

提供主电源的AC-DC转换器电路示例

DTMOSⅥ Series MOSFET
Transistor output photocoupler
Small surface mount LDO regulator (1)
Small surface mount LDO regulator (2)

Improved performance index R_DS(ON) x Q_gd, which shows switching characteristic, contributes to improvement of power supply efficiency.

Part Number	TK080N60Z1	TK090A65Z
Toshiba Package Name	TO-247	TO-220SIS
V_DSS (Max) [V]	600	650
I_D (Max) [A]	30	30
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.08	0.09
Polarity	N-ch	N-ch

搜索产品线

High CTR (Current Transfer Ratio) is realized even in low input current range (I_F = 0.5 mA).

Part Number	TLP383	TLP293	TLP385
Toshiba Package Name	4pin SO6L	SO4	4pin SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750	5000
V_CEO (Max) [V]	80	80	80
T_opr [°C]	-55 to 125	-55 to 125	-55 to 110

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

Part Number	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜索产品线

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

Part Number	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜索产品线

PFC电路

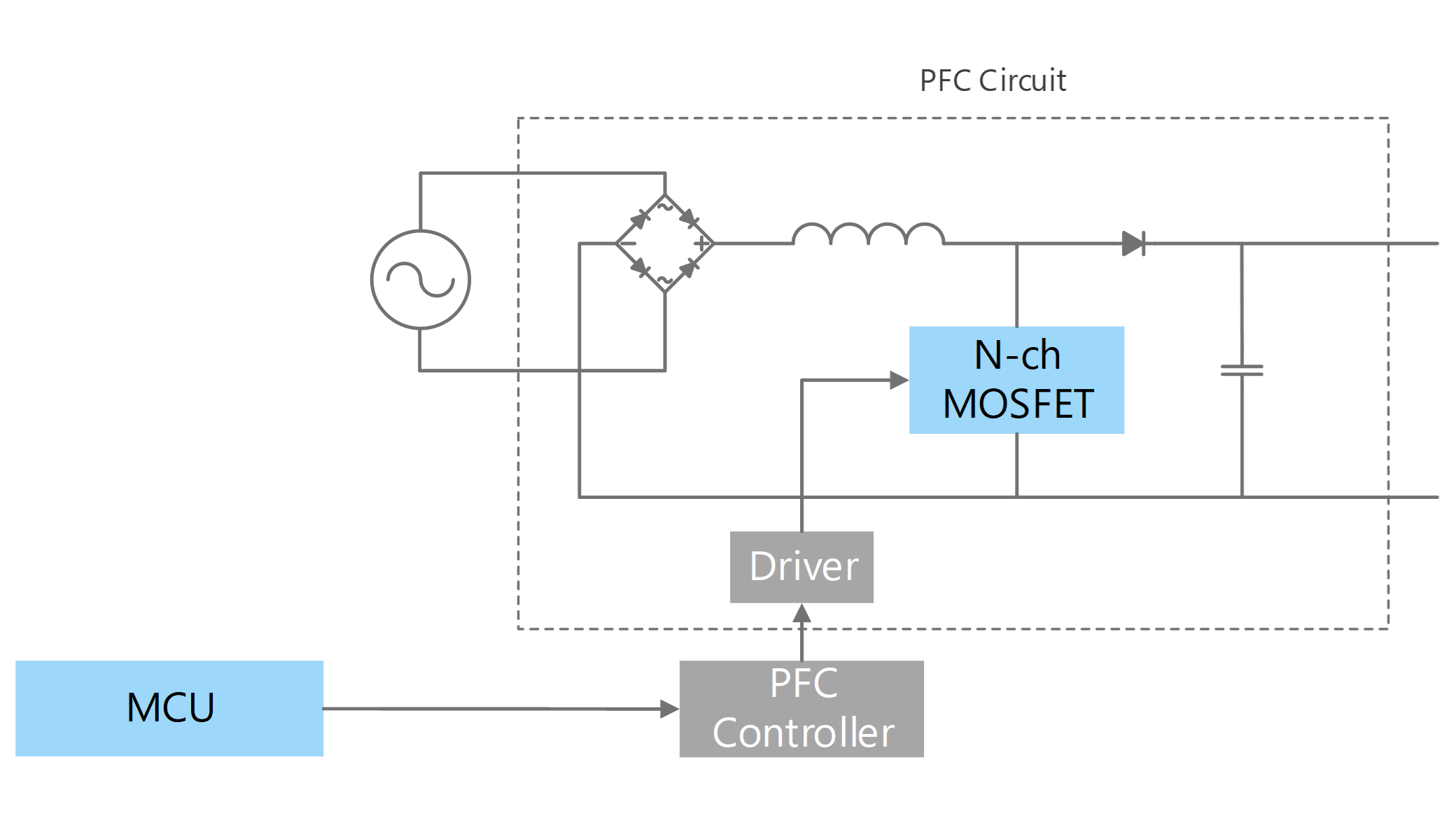

主电源电路中的PFC电路示例

DTMOSⅥ Series MOSFET
MCU

Improved performance index R_DS(ON) x Q_gd, which shows switching characteristic, contributes to improvement of power supply efficiency.

Part Number	TK080N60Z1	TK090A65Z
Toshiba Package Name	TO-247	TO-220SIS
V_DSS (Max) [V]	600	650
I_D (Max) [A]	30	30
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.08	0.09
Polarity	N-ch	N-ch

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

主电机驱动单元

主电机驱动单元（MCU（控制器）＋栅极驱动IC＋IPM）

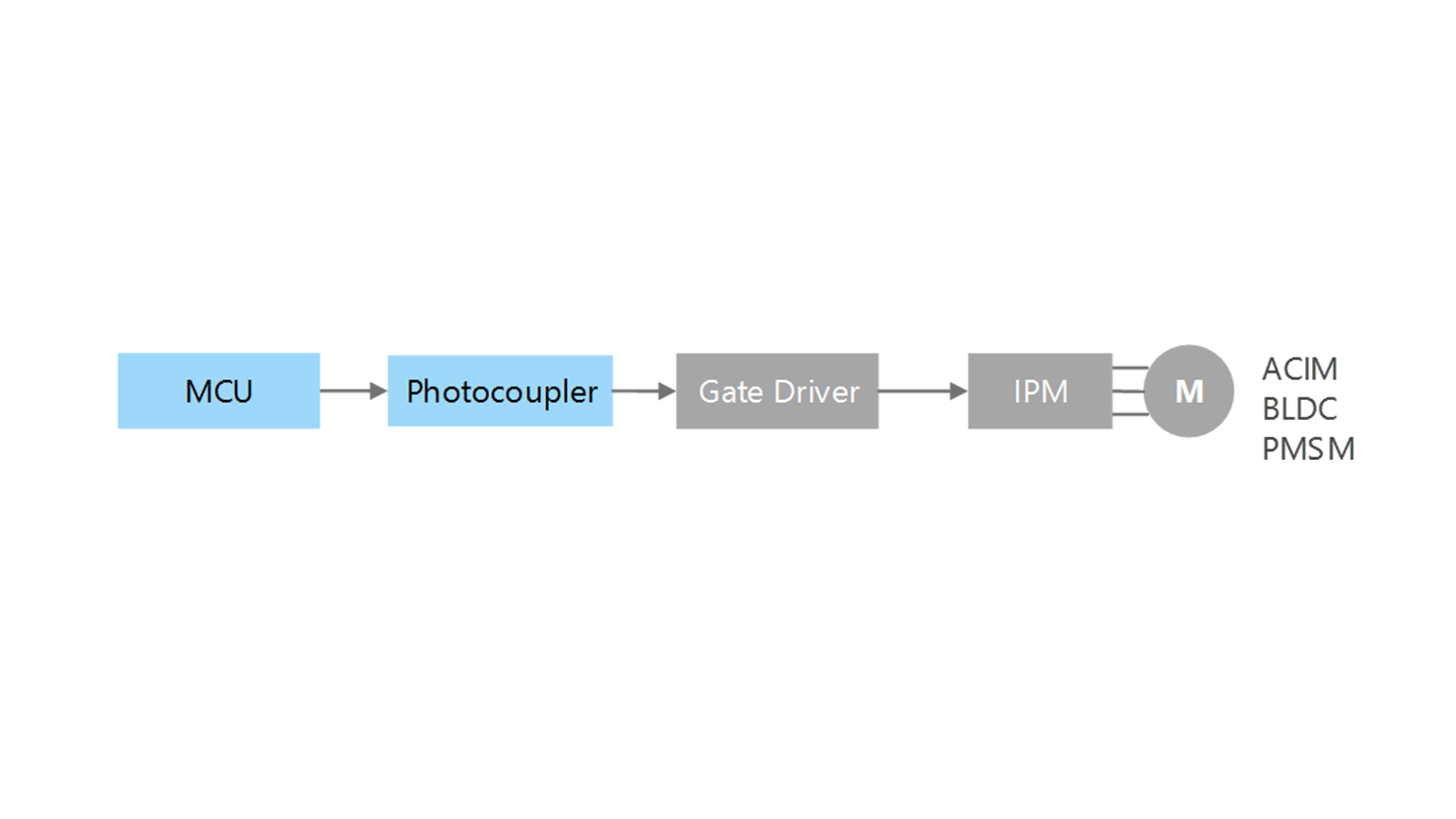

MCU（控制器）、栅极驱动IC和IPM组合的主电机驱动电路示例

Transistor output photocoupler
MCU

High CTR (Current Transfer Ratio) is realized even in low input current range (I_F = 0.5 mA).

Part Number	TLP383	TLP293	TLP385
Toshiba Package Name	4pin SO6L	SO4	4pin SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750	5000
V_CEO (Max) [V]	80	80	80
T_opr [°C]	-55 to 125	-55 to 125	-55 to 110

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

主电机驱动单元（MCU（控制器）＋栅极驱动IC＋MOSFET）

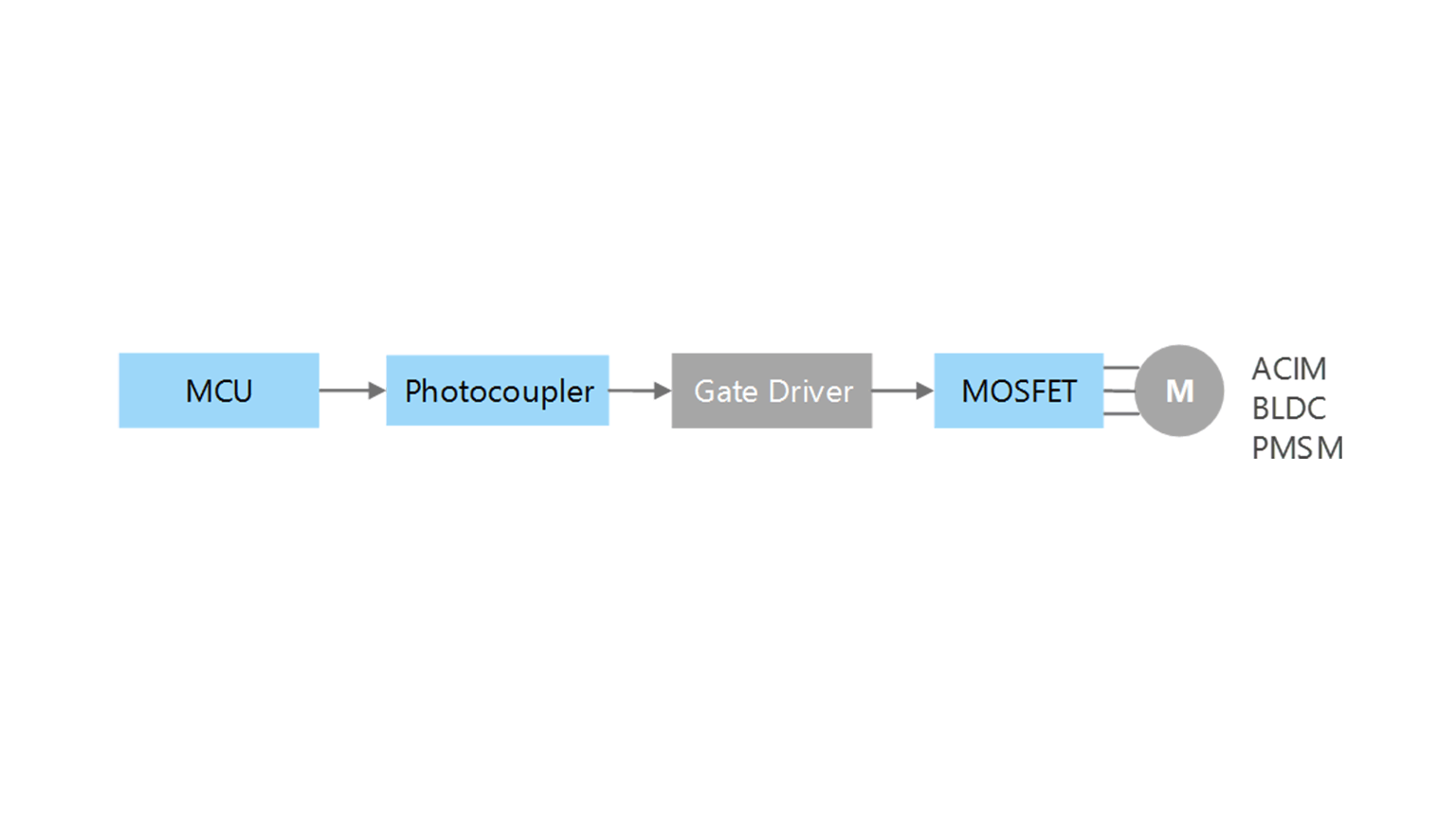

MCU（控制器）、栅极驱动IC和MOSFET组合的主电机驱动电路示例

DTMOSⅥ Series MOSFET
Transistor output photocoupler
MCU

Improved performance index R_DS(ON) x Q_gd, which shows switching characteristic, contributes to improvement of power supply efficiency.

Part Number	TK080N60Z1	TK090A65Z
Toshiba Package Name	TO-247	TO-220SIS
V_DSS (Max) [V]	600	650
I_D (Max) [A]	30	30
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.08	0.09
Polarity	N-ch	N-ch

搜索产品线

High CTR (Current Transfer Ratio) is realized even in low input current range (I_F = 0.5 mA).

Part Number	TLP383	TLP293	TLP385
Toshiba Package Name	4pin SO6L	SO4	4pin SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750	5000
V_CEO (Max) [V]	80	80	80
T_opr [°C]	-55 to 125	-55 to 125	-55 to 110

搜索产品线

System cost reduction, higher efficiency and less development work.

Series	TXZ+^TM 4A Series	TX04 Series	TX03 Series
Group	M4K Group	M470 Group	M370 Group

搜索产品线

水泵驱动单元

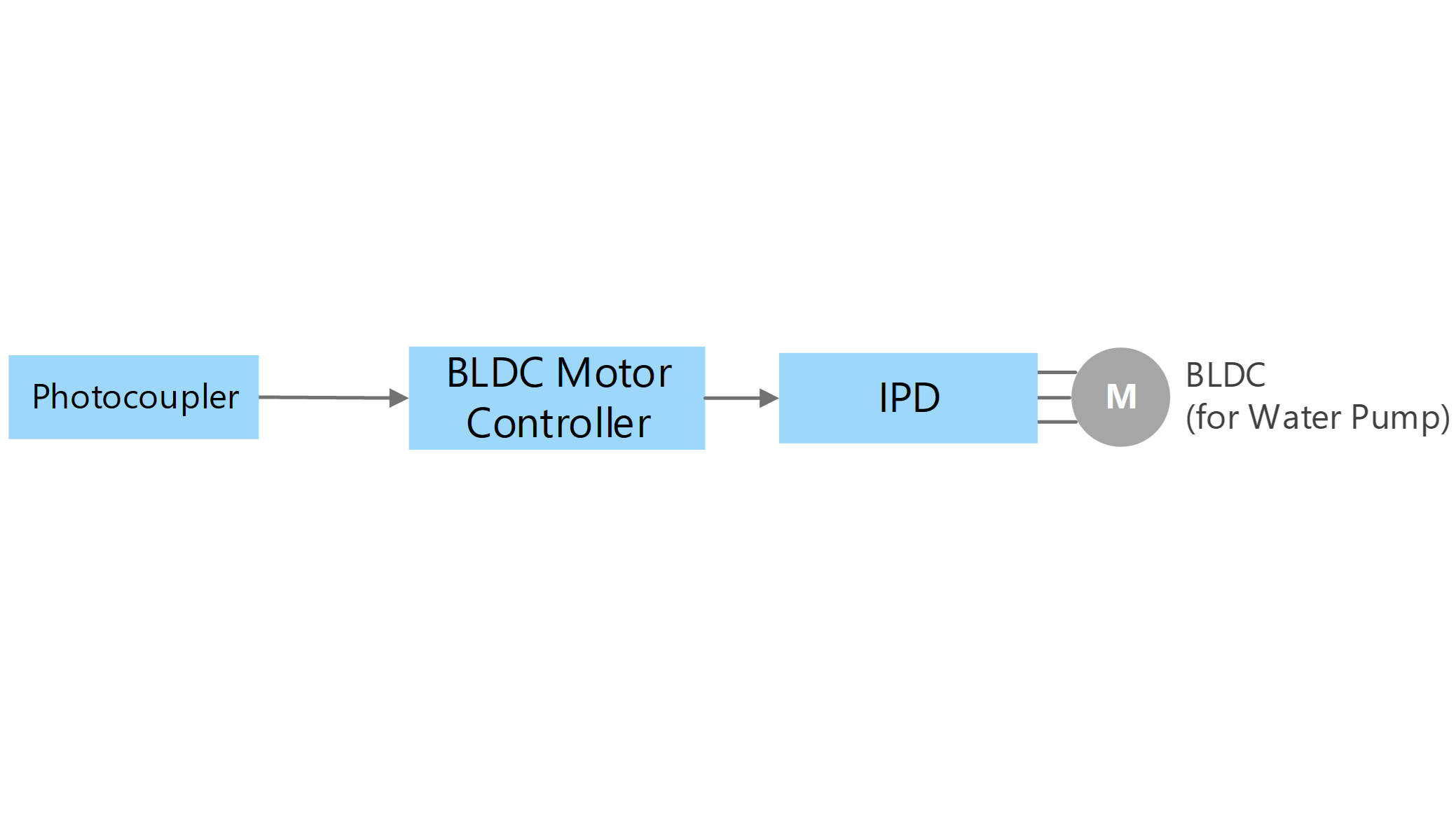

水泵驱动单元（MCD（控制器）+高压IPD）

水泵电机驱动电路结合MCD（控制器）和高电压IPD的示例

Transistor output photocoupler
Three-phase brushless DC motor driver (controller)

High CTR (Current Transfer Ratio) is realized even in low input current range (I_F = 0.5 mA).

Part Number	TLP383	TLP293	TLP385
Toshiba Package Name	4pin SO6L	SO4	4pin SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750	5000
V_CEO (Max) [V]	80	80	80
T_opr [°C]	-55 to 125	-55 to 125	-55 to 110

搜索产品线

By combining with external power devices, high voltage and high current brushless DC motors can be driven.

Part Number	TB6584FNG	TB6584AFNG	TB6634FNG
Toshiba Package Name	SSOP30-P-300-0.65	SSOP30-P-300-0.65	SSOP30-P-300-0.65
V_OUT (Max) [V]	18	18	18
I_OUT (Max) [A]	0.002	0.002	0.002
V_M [V]	6 to 16.5	6 to 16.5	6 to 16.5
R_ON (Typ.) [Ω]

搜索产品线

通信单元

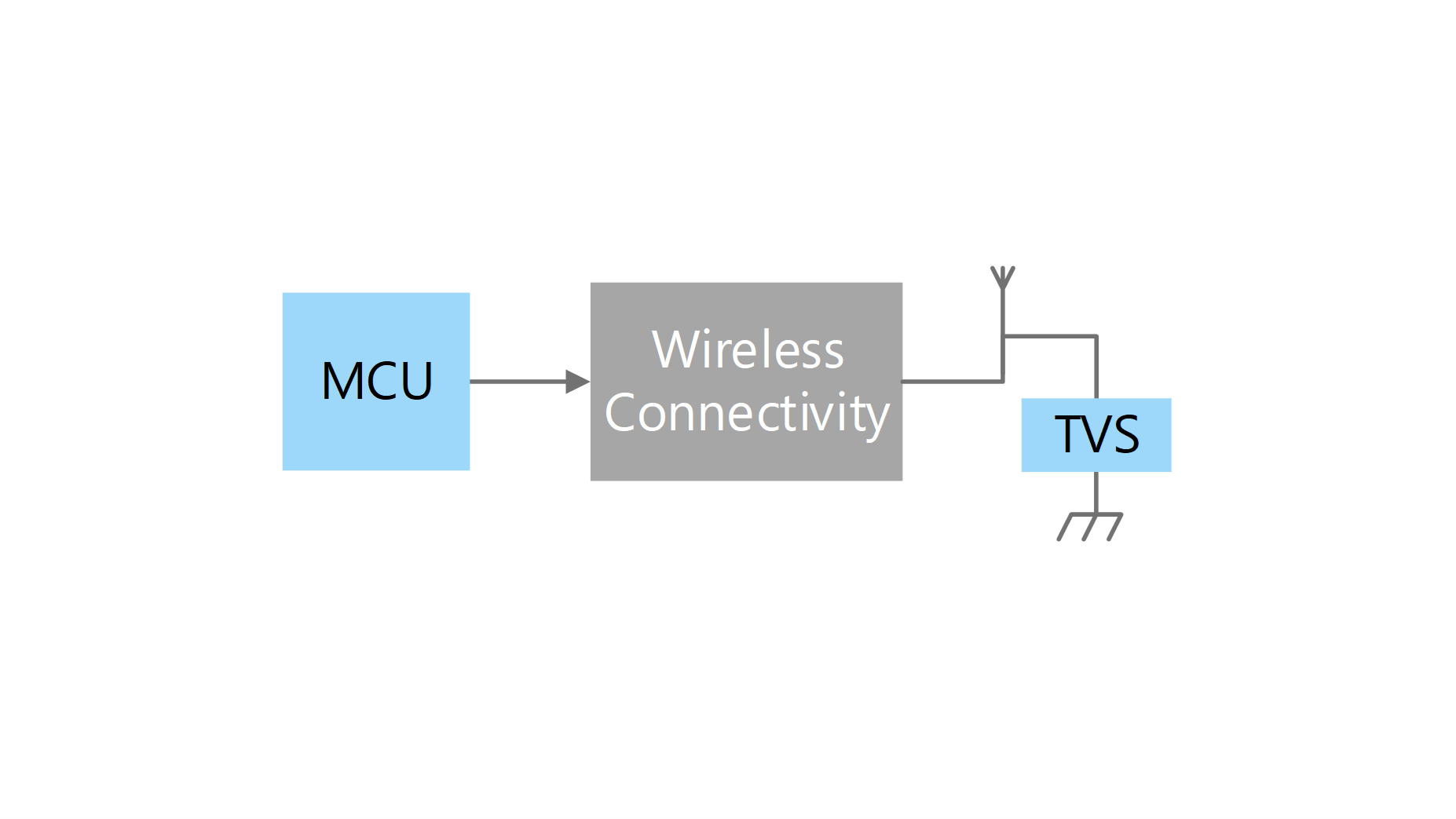

无线通信单元的示例

TVS diode
MCU

Absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

Part Number	DF2S6P1CT	DF2B7ASL	DF2B5M4SL	DF2B6M4SL
Toshiba Package Name	SOD-882 (CST2)	SOD-962 (SL2)	SOD-962 (SL2)	SOD-962 (SL2)
V_ESD (Max) [kV]	+/-30	+/-30	+/-20	+/-20
I_R (Max) [µA]	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.23	0.2	0.5	0.5
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	90	8.5	0.2	0.2

搜索产品线

MCU is equipped with many peripheral functions. MCU contributes to higher functionality as a system control MCU.

Series	TXZ+^TM 3A Series
Group	M3H Group

搜索产品线

传感器输入单元

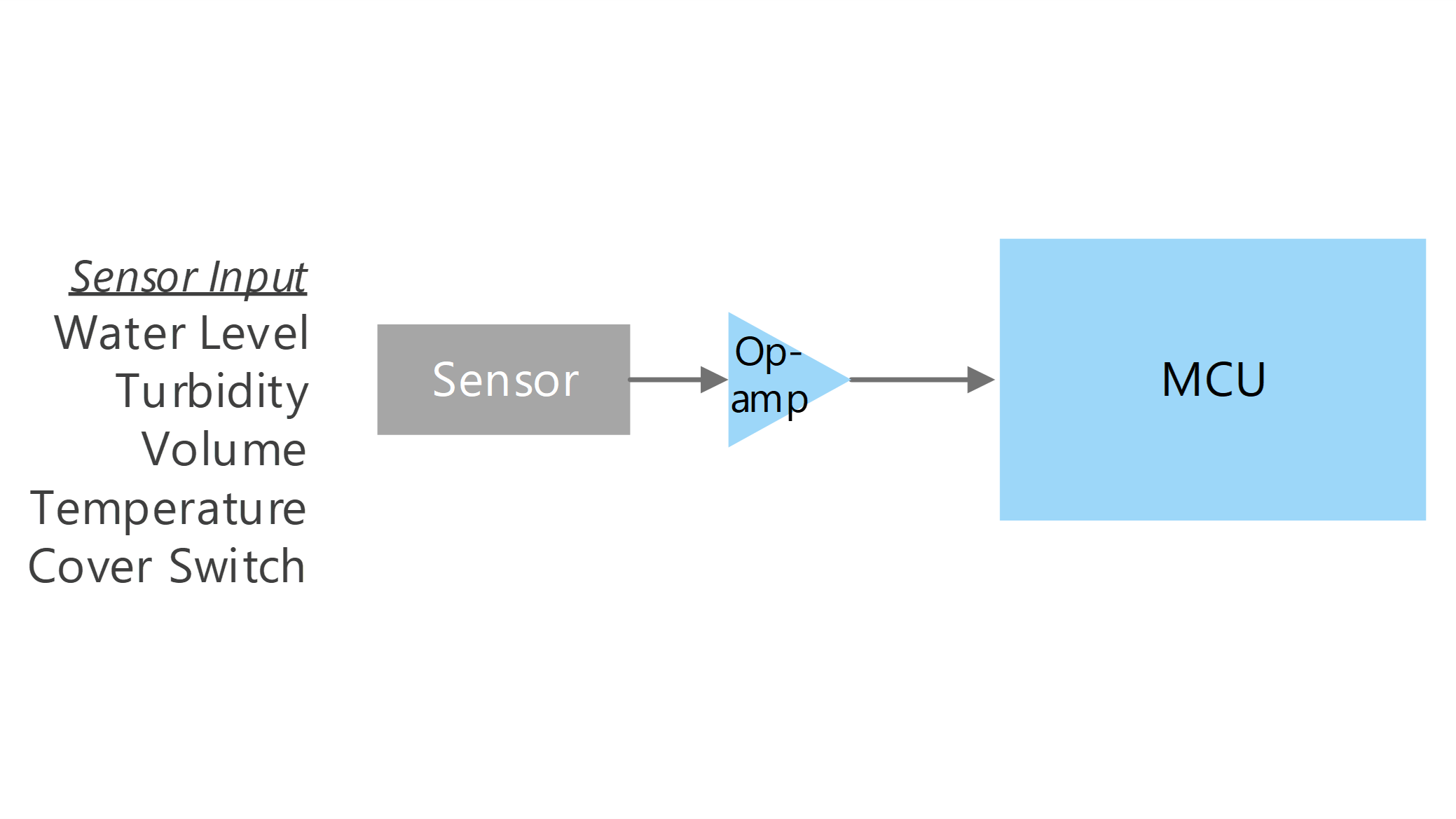

各种传感器信号输入电路示例

Low current consumption op-amp / Low noise op-amp
MCU

The lineup includes a low current consumption type that contributes to reducing power consumption and a low noise type that brings out performance of the sensor.

Part Number	TC75S102F	TC75S67TU
Toshiba Package Name	SOT-25 (SMV)	SOT-353F (UFV)
V_CC (Max) [V]	5.5	5.5
V_CC, V_EE (Max) [V]	+/-2.75	+/-2.75

搜索产品线

MCU is equipped with many peripheral functions. MCU contributes to higher functionality as a system control MCU.

Series	TXZ+^TM 3A Series
Group	M3H Group

搜索产品线

操作单元（按键／LED）

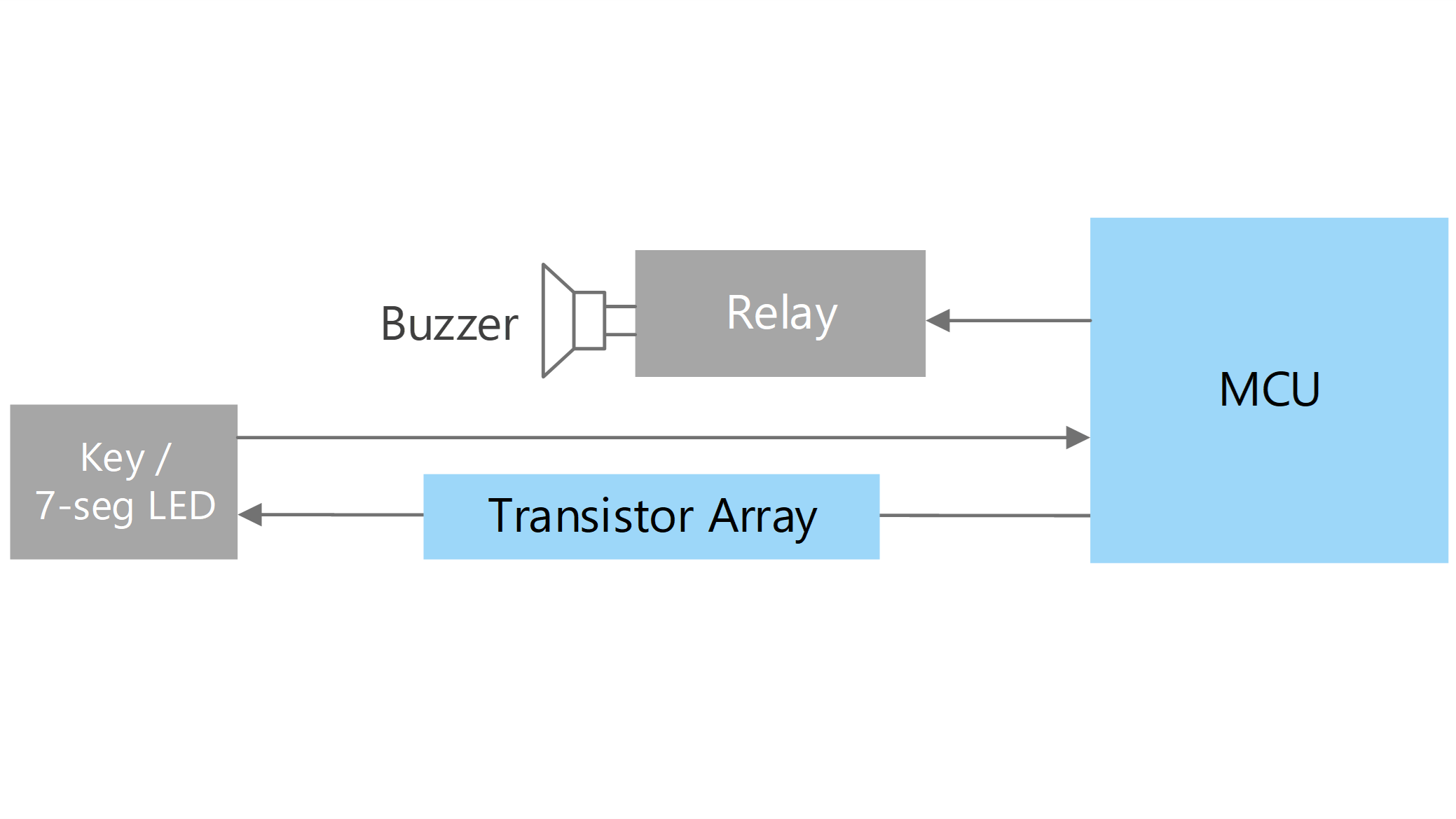

带按键和LED的操作电路示例

Transistor array
MCU

DMOS FET is used for the output of drive circuit and realizes low loss. CMOS input can control directly from controller's I/O, etc.

Part Number	TBD62003AFWG	TBD62083AFG	TBD62064AFAG
Toshiba Package Name	SOL16	SOP18-P-375-1.27	P-SSOP24-0613-1.00-001
Number of Circuits	7	8	4
I_OUT (Max) [mA/ch]	500	500	1500

搜索产品线

MCU is equipped with many peripheral functions. MCU contributes to higher functionality as a system control MCU.

Series	TXZ+^TM 3A Series
Group	M3H Group

搜索产品线

操作单元（触摸屏）

带触摸屏的操作电路示例

Transistor array
MCU

DMOS FET is used for the output of drive circuit and realizes low loss. CMOS input can control directly from controller's I/O, etc.

Part Number	TBD62003AFWG	TBD62083AFG	TBD62064AFAG
Toshiba Package Name	SOL16	SOP18-P-375-1.27	P-SSOP24-0613-1.00-001
Number of Circuits	7	8	4
I_OUT (Max) [mA/ch]	500	500	1500

搜索产品线

MCU is equipped with many peripheral functions. MCU contributes to higher functionality as a system control MCU.

Series	TXZ+^TM 3A Series
Group	M3H Group

搜索产品线
