电磁感应线圈驱动电路（使用分立元件）
使用双极晶体管驱动IGBT的电磁感应电压谐振电路示例
产品线
分立IGBT
器件型号 |
GT30J110SRA | GT20N135SRA | GT30N135SRA | |
|---|---|---|---|---|
封装 |
TO-247 | |||
VCES[V] |
1000 |
1100 | 1350 | 1350 |
tf（典型值）[μs] |
0.11 @IC＝60A |
0.17 @IC＝60A |
0.25 @IC＝40A |
0.25 @IC＝60A |
| VCE(sat)（典型值）[V] | 1.9 @IC＝60A |
2.15 @IC＝60A |
2.0 @IC＝40A |
2.15 @IC＝60A |

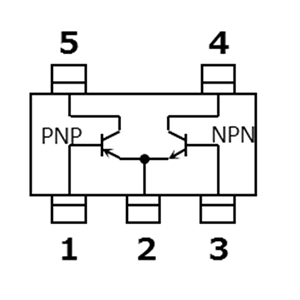

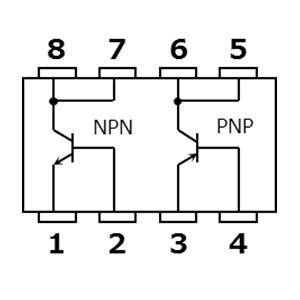

用于IGBT栅极驱动的双极晶体管
主控MCU
| 器件型号 | |
|---|---|
最大工作频率 |
40MHz |
指令ROM |
64KB |
RAM |
8KB |
Arm® Thumb®-2指令集 |
Available |
定时器 |
16位×8通道 |
| I2C | 1通道 |
| AD转换器 | 10通道（12位） |
* Arm和Thumb是Arm Limited（或其子公司）在美国和／或其他国家或地区的注册商标。
* 本文提及的公司名称、产品名称和服务名称可能是其各自公司的商标。
