主要控制电路

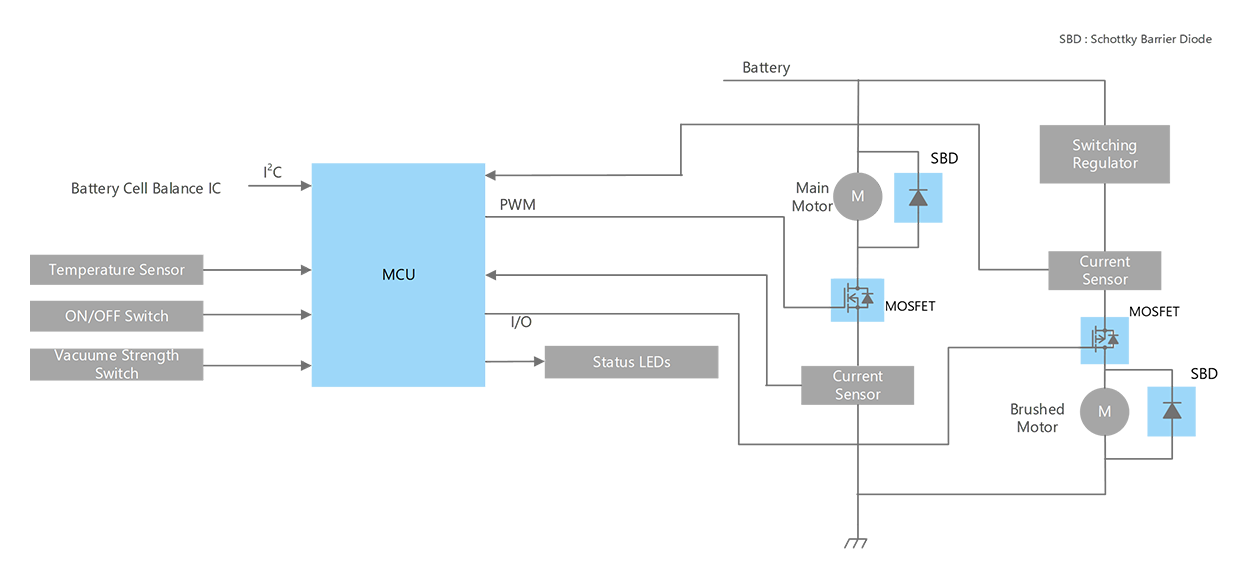

使用MCU的主要控制电路示例
产品线
U-MOS系列N沟道MOSFET
器件型号 |
||||||||
|---|---|---|---|---|---|---|---|---|
封装 |
SOP Advance(N） | TSON Advance | DPAK | |||||
VDSS[V] |
60 |
80 |
80 |
60 |
80 |
80 |
80 |
|
ID[A] |
60（79*） |
86（140*） |
120（200*） |
54（76*） |
32（77*） |
84（105*） |
62（83*） |
|
RDS(ON）[mΩ] @VGS＝10V |
典型值 |
5.4 |
3.1 |
1.9 |
5.4 |
6.5 |
4.2 |
5.5 |
最大值 |
7.0 |
4 |
2.43 |
7.0 |
8.4 |
5.1 |
6.9 |
|
极性 |
N沟道 |
N沟道 |
N沟道 |
N沟道 |
N沟道 |
N沟道 |
N沟道 |
|
产品代 |
U-MOSⅨ-H |
U-MOSⅩ-H |
U-MOSⅩ-H |
U-MOSⅨ-H |
U-MOSⅩ-H |
U-MOSⅩ-H |
U-MOSⅩ-H |
|
*：硅极限
U-MOS系列P沟道MOSFET
器件型号 |
||
|---|---|---|
封装 |
||
VDSS[V] |
-30 |
|
ID[A] |
-45 |
|
RDS(ON)[mΩ]@VGS＝-10V |
典型值 |
2.4 |
最大值 |
3.0 |
|
| 极性 | P沟道 | |
| 产品代 | U-MOSⅥ | |
肖特基势垒二极管
MCU
*M-FLAT™是东芝电子元件及存储装置株式会社的商标。
*Arm和Cortex是Arm Limited（或其子公司）在美国和／或其他国家或地区的注册商标。
*TXZ+™是东芝电子元件及存储装置株式会社的商标。
*本文提及的公司名称，产品名称和服务名称可能是其各自公司的商标。
