TC78B027FTG

This page partially uses JavaScript. This page may not operate normally when these functions are not supported by your browser or the setting is disabled.
Please look for the information you need from the following pages:

联系我们

Asia-Pacific - English

Asia-Pacific - 简体中文

Asia-Pacific - 繁體中文

Asia-Pacific - 한국어

Asia-Pacific - 日本語

Americas - English

Europe (EMEA) - English

Function	Auto lead angle function / Brake function / 1 Hall Sinewave PWM driving / Closed loop speed control
Application Scope	3-phase brushless motor drivers
Class	3-phase brushless motor controller
Number of drive motors (brushless motor)	1
RoHS Compatible Product(s) (#)	Available

封装

Toshiba Package Name	P-VQFN24-0404-0.50-003
Package Image
Pins	24
Mounting	Surface Mount
Package Dimensions	查看
Land pattern dimensions	查看
CAD data (Symbol, Footprint and 3D model)	Download from UltraLibrarian^® in your desired CAD format (Note)

Please refer to the link destination to check the detailed size.

(Note)

Ultra Librarian^® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

绝对最大额定值

项目	符号	值	单位
Output Current	I_OUT(peak)	0.2	A
Operating Temperature (Max)	T_opr	105	℃
Operating Temperature (Min)	T_opr	-40	℃
Storage Temperature (max)	T_stg	150	℃
Storage Temperature (min)	T_stg	-55	℃
Output Voltage	V_O	18	V

文档

全部选中
如果该复选框不能被选中，则不能批量下载相应的文档。

数据表 TC78B027FTG 数据表/日文

PDF: 1307KB

Sep,2019

数据表 TC78B027FTG 数据表/英文

PDF: 1190KB

Sep,2019

Product News Product News

PDF: 409KB

Sep,2018

Reliability Information Reliability Data

PDF: 168KB

May,2023

UPDATED Environment Information Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances

PDF: 87KB

Jan,2025

UPDATED Environment Information Certificate on Content of SVHC of REACH

PDF: 86KB

Jan,2025

Reference Model & Evaluation Board BOM list

PDF: 339KB

Jan,2020

Reference Model & Evaluation Board Schematic data

PDF: 218KB

Jan,2020

Reference Model & Evaluation Board Gerber data ZIP

ZIP: 530KB

Jan,2020

Catalog Selection Guide Motor Driver ICs 2024 Rev2.0

PDF: 9862KB

Aug,2024

Catalog SYSTEM CATALOG Motor Solutions Guide

PDF: 10527KB

Dec,2019

参考设计

电机预驱IC和外部FET驱动板的评估板

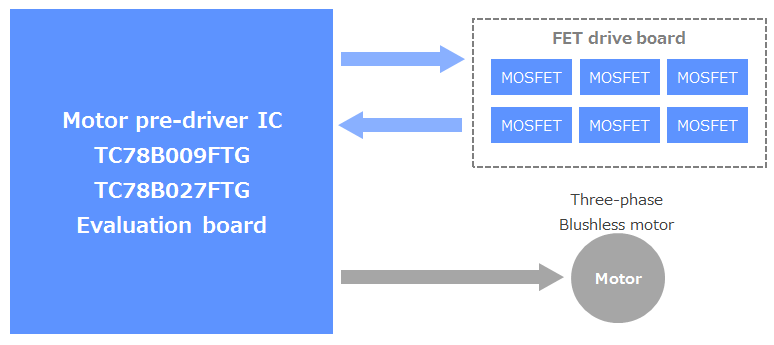

该参考设计提供了3相无刷直流电动机预驱IC（TC78B009FTG／TC78B027FTG）和可连接的外部FET驱动板的评估板的电路图、BOM和PCB数据（Gerber数据）。

详细信息

用于风扇驱动的直流无刷电机预驱IC TC78B027FTG的应用电路

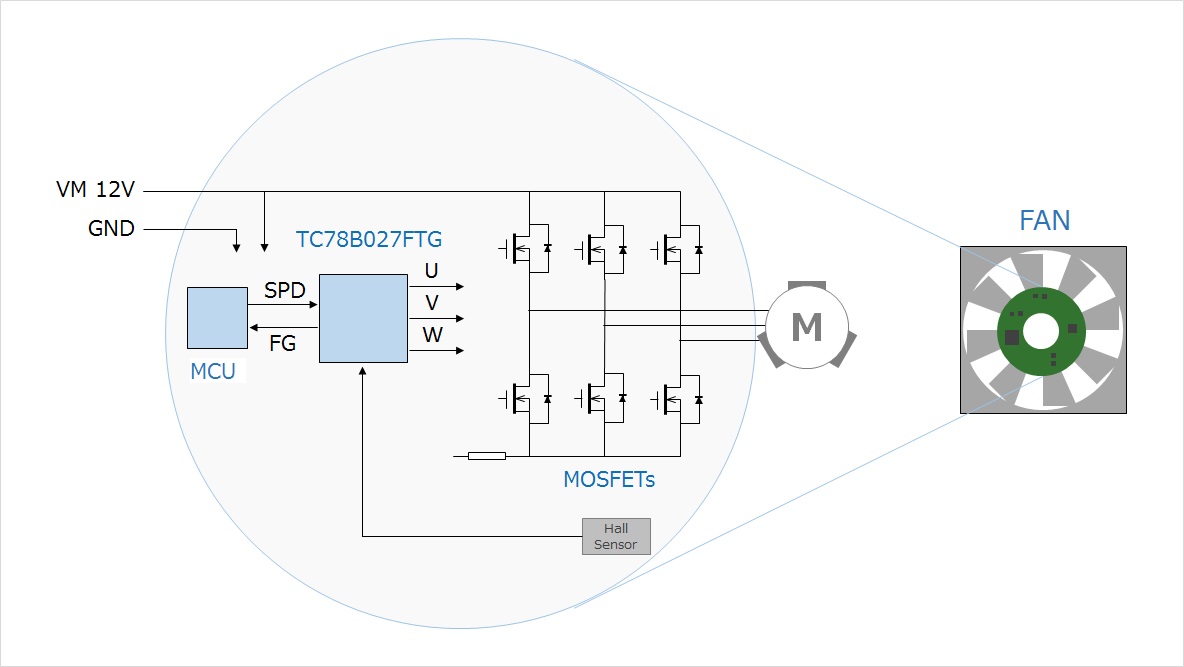

该电路板根据风扇的形状设计成圆形中空外形，板上装有用于电机驱动的MOSFET，直流无刷电机预驱动IC TC78B027FTG和用于控制的微控制器。该参考设计提供电路图，BOM等。

详细信息

Notes

The Part Number column shows representative part numbers only, which may not be available for sale in the precise form shown. Each Part Number constitutes a product family which may contain multiple associated product configurations.
(#) Under the RoHS Compatible Product(s) column, "Available" means at least one RoHS-Compatible product is available for sale in the corresponding product family. "None" means no RoHS Compatible product is available in that product family. For Toshiba's definitions of concepts related to the RoHS Directive and RoHS Compatibility, please click here.
The RoHS compatibility information provided herein is to the best of Toshiba's knowledge and belief accurate as of the date Toshiba entered the information into this database. Information is subject to change at any time without notice.
Please contact your Toshiba sales representative for detailed environmental information about each specific part number or product, such as RoHS compatibility or material content. Please use Toshiba products only in compliance with all applicable laws and regulations concerning the inclusion or use of controlled substances, including without limitation the RoHS Directive.TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.
Reliability data are provided for your reference only, please contact your Toshiba sales representative for detailed reliability information about each part number.
For product delivery, additional characters will be added to the part numbers shown on this website. For details, please ask your local distributor, or send an inquiry accessed from "Contact Us" on this website.
