DF2S6M4FS

ESD protection diode (uni-directional type)

数据表

DF2S6M4FS 数据表/日文[Nov,2019]PDF: 527KB

数据表

DF2S6M4FS 数据表/英文[Nov,2019]PDF: 395KB

Simulation Model

PSpice Model[Dec,2019]lib: 1KB

Reliability Information

Reliability Data[Dec,2023]PDF: 244KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Apr,2024]PDF: 86KB

Environment Information

Certificate on Content of SVHC of REACH[Apr,2024]PDF: 86KB

相关技术数据

Basics of ESD Protection (TVS)Diodes[May,2022]PDF: 1674KB

相关技术数据

Overvoltage protection device Zener diode and ESD protection diode[Apr,2022]PDF: 1161KB

相关技术数据

Basics of Diodes (Power Losses and Thermal Design)[Aug,2021]PDF: 649KB

相关技术数据

Basics of Diodes (Absolute Maximum Ratings and Electrical Characteristics)[Aug,2021]PDF: 846KB

相关技术数据

Basics of Diodes (Types and Overview of Diodes)[Aug,2021]PDF: 1557KB

Catalog

Selection Guide Small Signal 2024 Rev1.0[Jan,2024]PDF: 8279KB

Catalog

Mini catalog Introduction of Toshiba Zener Diode for protection[Dec,2023]PDF: 578KB

Catalog

Mini catalog Introduction of Toshiba TVS Diodes(ESD Protection Diodes) Line-up[Dec,2023]PDF: 619KB

Catalog

Mini catalog Toshiba's circuit protection solutions and switch solutions[Aug,2023]PDF: 523KB

数据表

DF2S6M4FS 数据表/日文[Nov,2019]PDF: 527KB

数据表

DF2S6M4FS 数据表/英文[Nov,2019]PDF: 395KB

相关技术数据

Basics of ESD Protection (TVS)Diodes[May,2022]PDF: 1674KB

相关技术数据

Overvoltage protection device Zener diode and ESD protection diode[Apr,2022]PDF: 1161KB

相关技术数据

Basics of Diodes (Power Losses and Thermal Design)[Aug,2021]PDF: 649KB

相关技术数据

Basics of Diodes (Absolute Maximum Ratings and Electrical Characteristics)[Aug,2021]PDF: 846KB

相关技术数据

Basics of Diodes (Types and Overview of Diodes)[Aug,2021]PDF: 1557KB

Simulation Model

PSpice Model[Dec,2019]lib: 1KB

Reliability Information

Reliability Data[Dec,2023]PDF: 244KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Apr,2024]PDF: 86KB

Environment Information

Certificate on Content of SVHC of REACH[Apr,2024]PDF: 86KB

Catalog

Selection Guide Small Signal 2024 Rev1.0[Jan,2024]PDF: 8279KB

Catalog

Mini catalog Introduction of Toshiba Zener Diode for protection[Dec,2023]PDF: 578KB

Catalog

Mini catalog Introduction of Toshiba TVS Diodes(ESD Protection Diodes) Line-up[Dec,2023]PDF: 619KB

Catalog

Mini catalog Toshiba's circuit protection solutions and switch solutions[Aug,2023]PDF: 523KB

产品概要

Internal Connection Single
Number of Circuits 1
Number of Protected Lines 1
Configuration Unidirectional
Application USB3.0 / HDMI2.0 / DisplayPort1.2 / Audio
AEC-Q101 Qualified(*)
RoHS Compatible Product(s) (#) Available

*: For detail information, please contact to our sales.

封装

package name (TOSHIBA) SOD-923

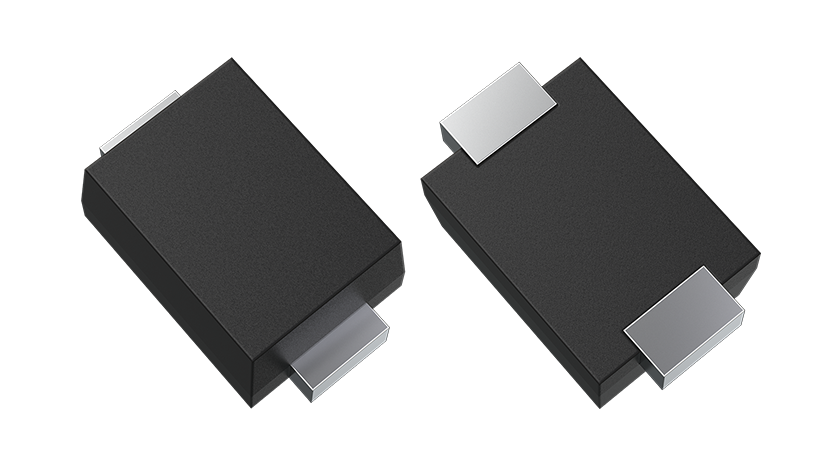

Package Image SOD-923
package code SOD-923
Pins 2
Mounting Surface Mount
Width×Length×Height
(mm)		 1.0×0.6×0.4
Package Dimensions 查看
Land pattern dimensions 查看

 Please refer to the link destination to check the detailed size.

绝对最大额定值

项目 符号 值 单位
Electrostatic discharge voltage(IEC61000-4-2) VESD +/-20 kV
Peak pulse current (IEC61000-4-5) IPP 2 A

电气特性

项目 符号 条件 值 单位
Working peak reverse voltage (Max) VRWM - 5.5 V
Total Capacitance (Max) CT VR=0V
f=1MHz		 0.55 pF
Total Capacitance (Typ.) CT VR=0V
f=1MHz		 0.45 pF
Dynamic resistance (Typ.) Rdyn IPP=8A to 16A 0.35 Ω
Reverse Breakdown Voltage (Min) VBR IBR=1mA 5.6 V
Reverse Current (Max) IR VRWM=5.5V 0.1 μA
Clamp voltage (Based on IEC61000-4-5) (Typ.) VC IPP=1A 7.5 V
购买及样品申请
请联系东芝官方代理商或就近联系我们的销售网点。
您可以通过以下链接搜索及购买少量样品。

文档

  • 如果该复选框不能被选中，则不能批量下载相应的文档。

Dec,2019

Dec,2023

Apr,2024

Apr,2024

可订购器件型号

Orderable part number
(example)		 MOQ(pcs) Reliability
Information		 RoHS AEC-Q100
AEC-Q101		 Note
DF2S6M4FS,L3M 10000 Yes - General Use
DF2S6M4FS,L3XGM 10000 - Yes Yes Automotive Use
