即使在有ESD保护器件的情况下,如果要保护的IC仍遭静电破坏,则表明对于此IC而言ESD保护性能不足。当要保护的IC的ESD抗扰度较低时,应格外注意。

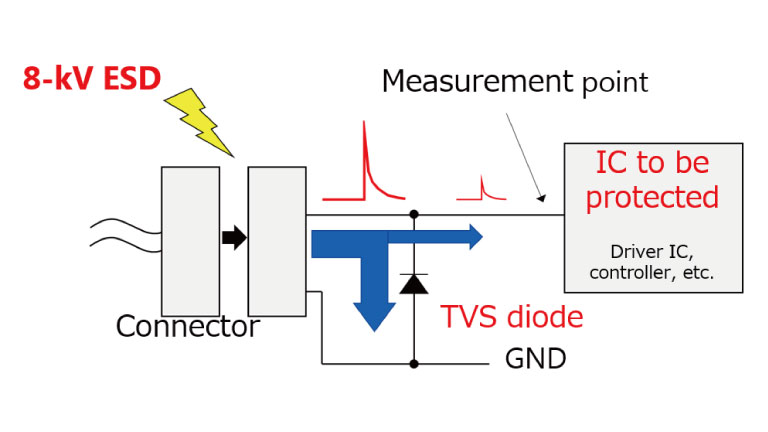

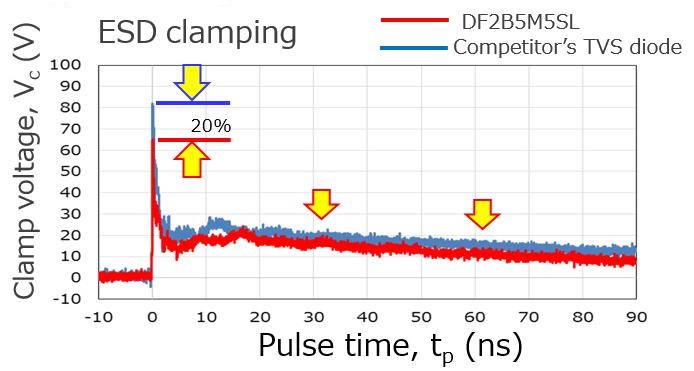

下图比较了更换两个不同的TVS二极管更换后IC输入端的第一个峰值电压。尽管功能相似,但这些TVS二极管表现出不同的钳位电压。(DF2B5M5SL:4A时典型值为9.6V;竞争对手的TVS二极管:4A时典型值为13V)。该图表明DF2B5M5SL对于ESD脉冲具有更强大的保护功能。请注意,即使是类似的TVS二极管,其ESD保护性能也会截然不同。
必须根据应用要求选择最佳的TVS二极管。
