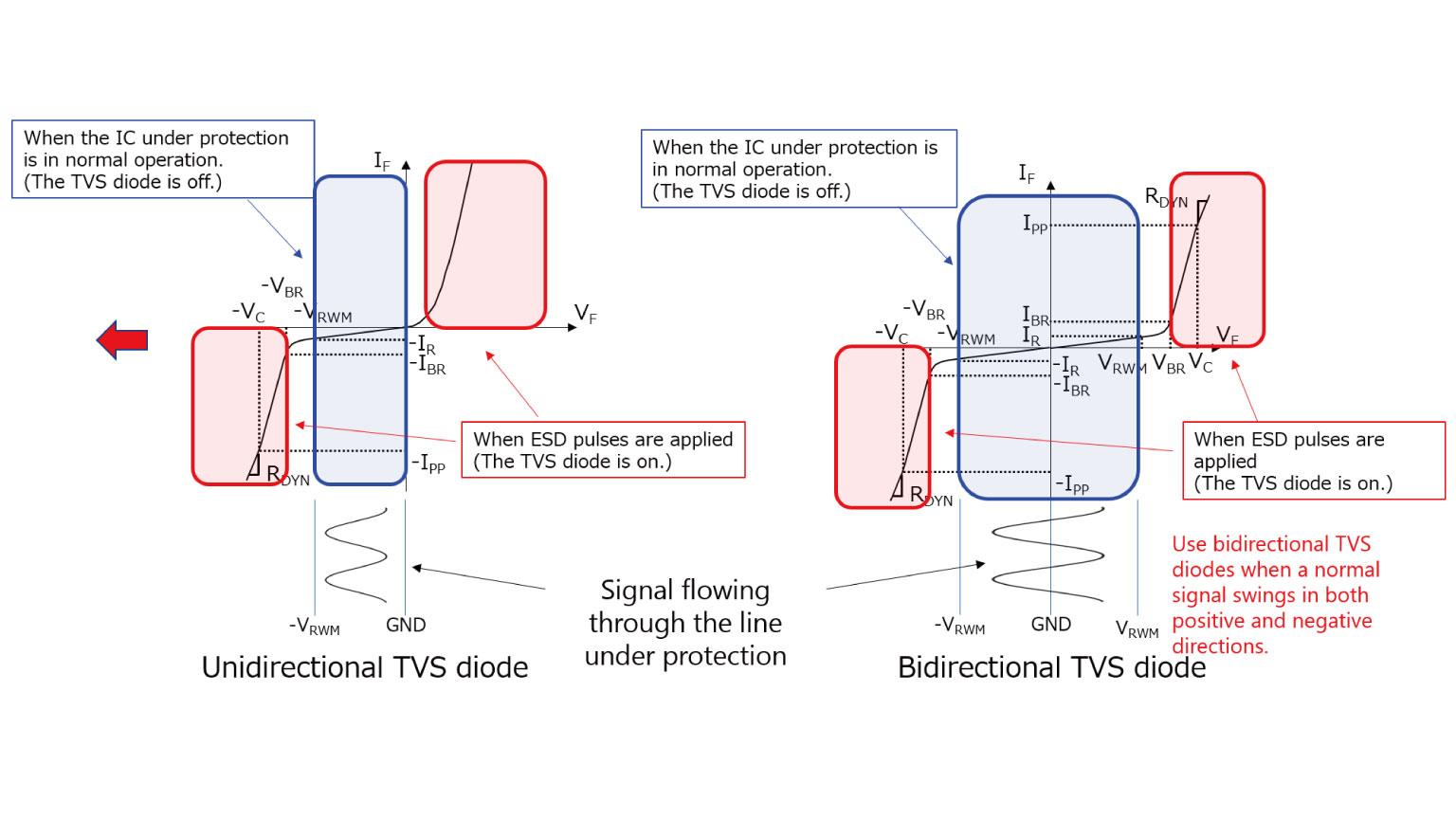

单向和双向TVS二极管的静电特性如下所示。
与典型的齐纳二极管一样,单向TVS二极管在反向偏置条件下使用。当受保护的IC正常工作时,单向TVS二极管反向偏置,可施加于受保护线路的信号范围为0V至VRWM。然而,TVS二极管同时吸收正负ESD事件。
因此,当在正常操作期间仅对要保护的信号线施加正电压时,可使用单向TVS二极管来吸收正负ESD事件。
当向需受保护的信号线同时施加正负电压时,需使用双向TVS二极管。
