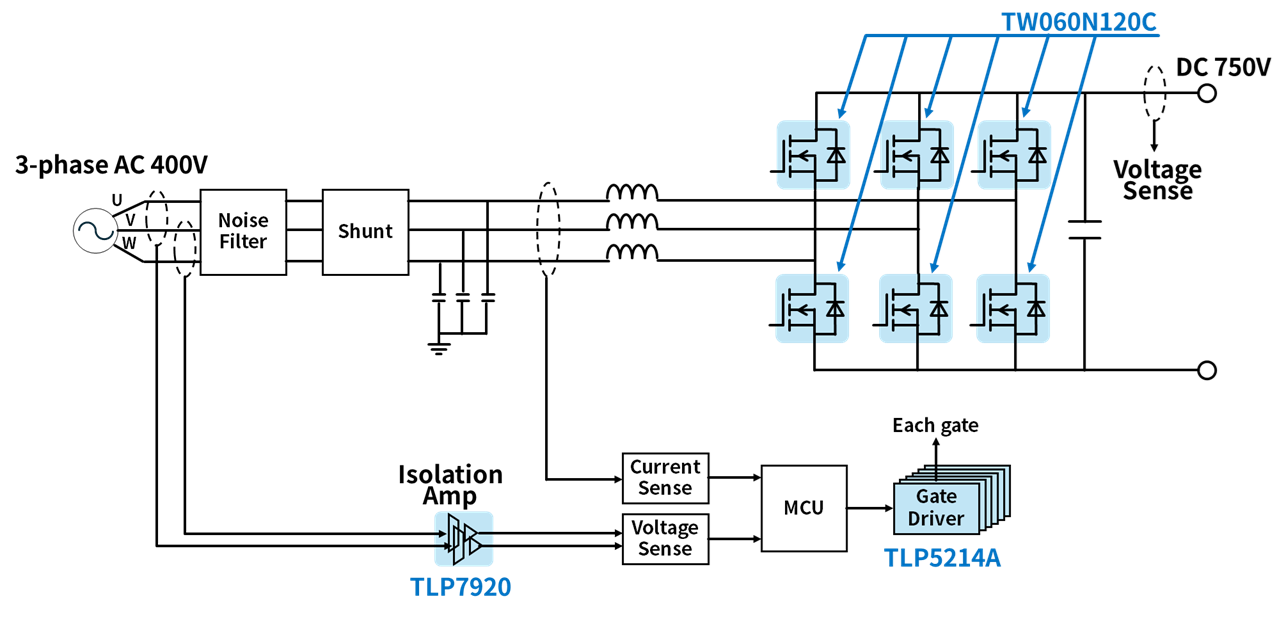

该设计能够提供10kW功率,DC输出电压为750V。3相AC输入(312V至528V),采用3相图腾柱配置,使用1200V SiC MOSFET输出750V DC。
它适用于电动汽车充电站和各种使用3相AC电源输入的工业设备等应用。
该参考设计提供了电路各部分的设计要点、使用方法和调整方法的说明,以及电路图、电路板图案等设计信息,可帮助您进行设计。
Click on components for more details

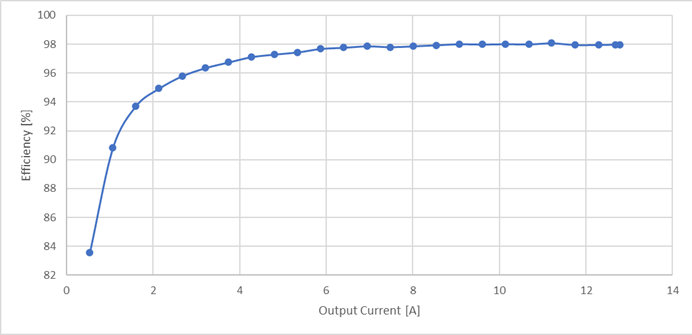

输入电压 | AC 312至528V |
---|---|
输出电压 | DC 750V |
输出功率 | 10kW |
我们向设计人员提供电路操作概要和设计要点说明等资料。请单击每个选项卡,将其用于电路设计。
我们提供可加载到EDA工具中的电路数据、PCB布局数据以及PCB制造中使用的数据。多个工具供应商为您提供了多种格式。您可以使用您的工具进行自由编辑。
器件型号 | 器件目录 | 搭载部位・数量 | 说明 |
---|---|---|---|
功率SiC MOSFET | PFC电路・6 | N沟道SiC MOSFET、1200V、0.060Ω(典型值)@18V、TO-247、第3代 | |
光耦(光电IC输出) | 栅极驱动电路・6 | 光耦(光电IC输出)、 IGBT驱动电路、IOP=+/-4.0 A、5000Vrms、SO16L | |
光耦(隔离放大器) | 电压检测电路・2 | 光耦(隔离放大器)、模拟输出、5000Vrms、DIP8 |
我们提供有助于设计和研究相似电路的参考资料,例如已安装产品的应用说明。请单击每个选项卡使用这些资料。
