TO-247-4L

In developing your designs, please ensure the datasheet.

TO-247-4Lpackage
Toshiba Code 2-16M2A
Mounting Through Hole
Pins 4
Width×Length×Height
(mm)
15.94×20.95×5.0
Land pattern(2D Model)
3D Model STEP

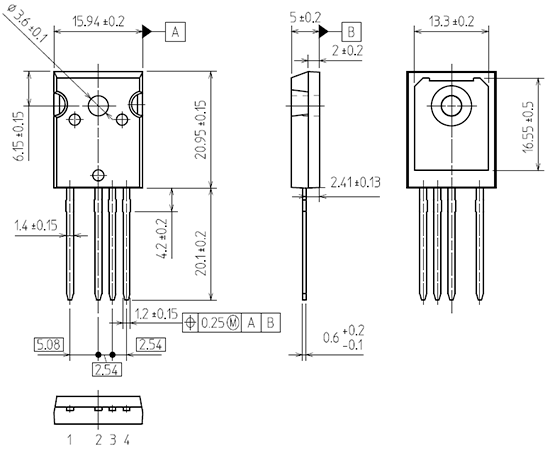

Package Dimensions (mm)
Packing Method Tube Packaging
Minimum Quantity 30 pcs/Tube

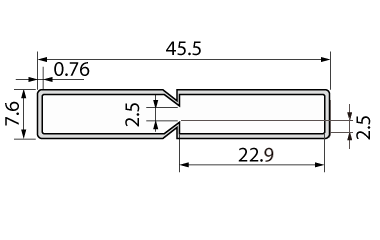

Tube Dimensions (mm)

Download package data for CAD tool, such as 3D model data in STEP format and reference land pattern data designed following JEITA ET-7501 Level3.

  • 3D model(.stp): 3D model Data in STEP Format
  • Land Pattern(.dxf): Land pattern Data in DXF Format
  • Land Pattern(.xml):Land pattern Data in JEITA LPB C-format
  • Land Pattern(.dra):Land pattern Data for Cadence®OrCAD®
  • Land Pattern(.ftp): Land pattern Data for Zuken®CR-5000/CR-8000
