TO-220-2L

In developing your designs, please ensure the datasheet.

TO-220-2Lpackage
Toshiba Code 2-10AE1A
Mounting Through Hole
Pins 2
Width×Length×Height
(mm)		 10.05×15.3×4.45
3D Model STEP

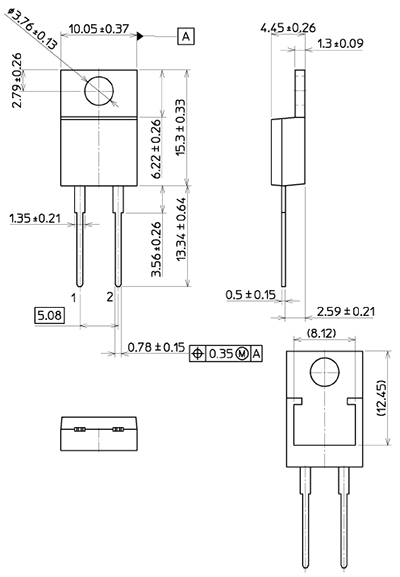

Package Dimensions (mm)
Packing Method Tube Packaging
Minimum Quantity 50 pcs/Tube

Download package data for CAD tool, such as 3D model data in STEP format and reference land pattern data designed following JEITA ET-7501 Level3.

  • 3D model(.stp)： 3D model Data in STEP Format
Jump to Package & Packing Information
