SOIC8-W(P-SOP8-0806-1.27-001)

In developing your designs, please ensure the datasheet.

SOIC8-W(P-SOP8-0806-1.27-001)package
Toshiba Code P-SOP8-0806-1.27-001
Mounting Surface Mount
Pins 8
Width×Length×Height
(mm)		 5.85×11.5×2.79
3D Model STEP

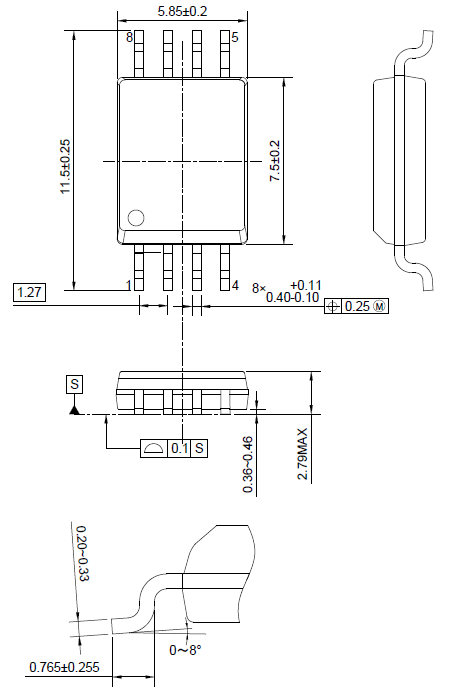

Package Dimensions (mm)
Packing Method Embossed Tape
Packing Name EL
Minimum Quantity 1000 pcs/Reel
Tape Width (mm) 16.15

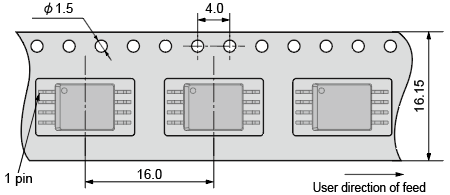

Tape Dimensions (mm)
/

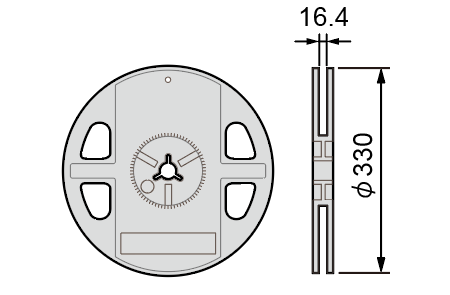

Reel Dimensions (mm)

Download package data for CAD tool, such as 3D model data in STEP format and reference land pattern data designed following JEITA ET-7501 Level3.

  • 3D model(.stp)： 3D model Data in STEP Format
Jump to Package & Packing Information
