Toshiba Package Code | 1-1AH1A | |
---|---|---|
Package Code | SOD-923 | |
Mounting | Surface Mount | |
Pins | 2 | |
Width×Length×Height (mm) |
1.0×0.6×0.4 | |

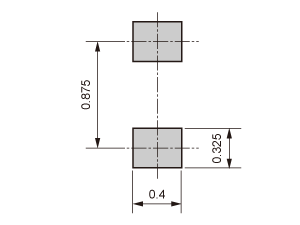

Land pattern(2D Model) | ||
3D Model | STEP | |

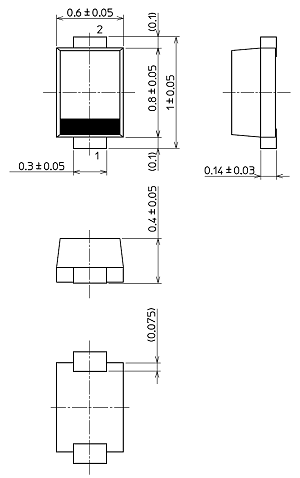

Package Dimensions (mm) / Land pattern dimensions for reference only (mm) |
![]() ![]() |
|
Packing Method | Embossed Tape | |
Packing Name | TPL3 / L3 | |
Minimum Quantity | 10000 pcs/Reel | |
Tape Width (mm) | 8 | |

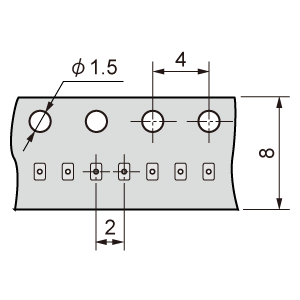

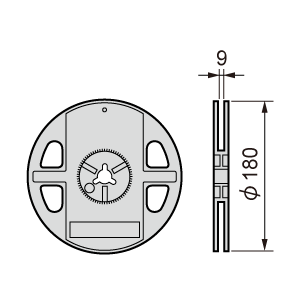

Tape Dimensions (mm) / Reel Dimensions (mm) |
![]() ![]() |
Download package data for CAD tool, such as 3D model data in STEP format and reference land pattern data designed following JEITA ET-7501 Level3.
