SO16

In developing your designs, please ensure the datasheet.

SO16package
Toshiba Code 11-11F1
Mounting Surface Mount
Pins 16
Width×Length×Height
(mm)
10.3×7.0×2.1
3D Model STEP

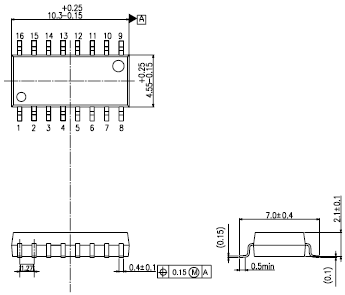

Package Dimensions (mm)
/
Land pattern dimensions for
reference only (mm)

Packing Method Embossed Tape
Packing Name TP
Minimum Quantity 2000 pcs/Reel
Tape Width (mm) 16
Tape Dimensions (mm)
/
Reel Dimensions (mm)

Download package data for CAD tool, such as 3D model data in STEP format and reference land pattern data designed following JEITA ET-7501 Level3.

  • 3D model(.stp): 3D model Data in STEP Format
Jump to Package & Packing Information
