L-TOGL™

In developing your designs, please ensure the datasheet.

L-TOGL™package
Toshiba Code 2-10AG1A
Mounting Surface Mount
Pins 9
Width×Length×Height
(mm)		 9.9×11.81×2.3
Land pattern(2D Model)
3D Model STEP

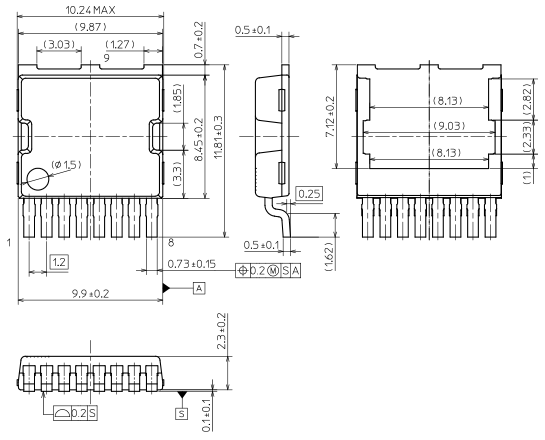

Package Dimensions (mm)
/

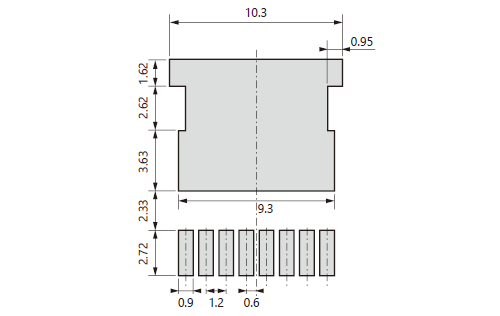

Land pattern dimensions for
reference only (mm)
Packing Method Embossed Tape
Packing Name TE24L
Minimum Quantity 1500 pcs/Reel
Tape Width (mm) 24

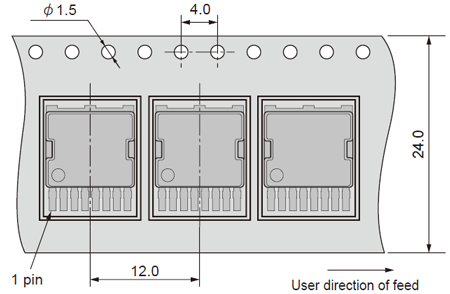

Tape Dimensions (mm)
/

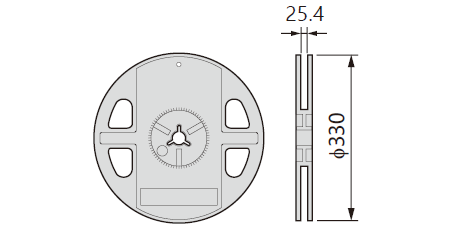

Reel Dimensions (mm)

L-TOGL is a trademark of Toshiba Electronic Devices & Storage Corporation.

Other company names, product names, and service names may be trademarks of their respective companies.

Download package data for CAD tool, such as 3D model data in STEP format and reference land pattern data designed following JEITA ET-7501 Level3.

  • 3D model(.stp)： 3D model Data in STEP Format
  • Land Pattern(.dxf)： Land pattern Data in DXF Format
  • Land Pattern(.xml)：Land pattern Data in JEITA LPB C-format
  • Land Pattern(.dra)：Land pattern Data for Cadence®OrCAD®
  • Land Pattern(.ftp)： Land pattern Data for Zuken®CR-5000/CR-8000
