HSSOP31

In developing your designs, please ensure the datasheet.

HSSOP31package
Toshiba Code P-HSSOP31-0918-0.80-001/P-HSSOP31-0918-0.80-002
Mounting Surface Mount
Pins 31
Width×Length×Height
(mm)
17.5×11.93×2.2
3D Model STEP

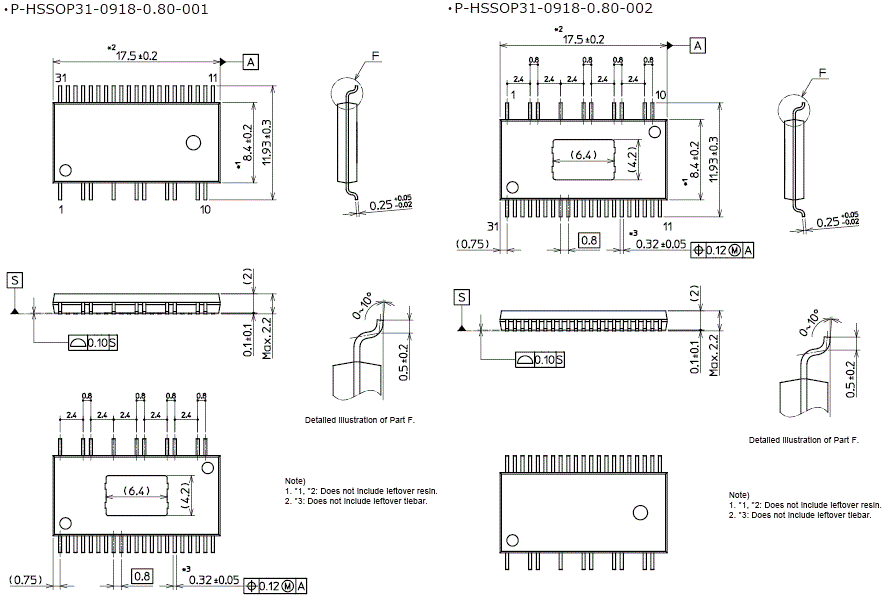

Package Dimensions (mm)
Packing Method -

Download package data for CAD tool, such as 3D model data in STEP format and reference land pattern data designed following JEITA ET-7501 Level3.

  • 3D model(.stp): 3D model Data in STEP Format
