DPAK(2-7K1S)

In developing your designs, please ensure the datasheet.

DPAK(2-7K1S)package
Name difference DPAK(2-7K1S) | DPAK(2-7N1S)
Toshiba Code 2-7K1S
Mounting Surface Mount
Pins 3
Width×Length×Height
(mm)		 6.6×10.0×2.3
Land pattern(2D Model)
3D Model STEP

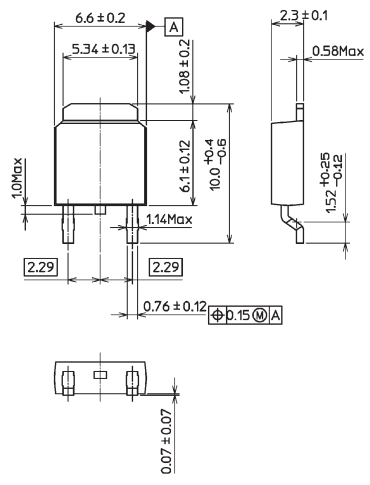

Package Dimensions (mm)
/

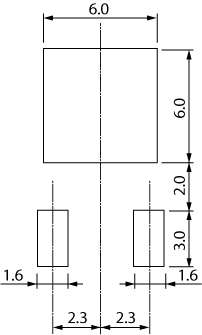

Land pattern dimensions for
reference only (mm)
Packing Method Embossed Tape
Packing Name -
Minimum Quantity 2000 pcs/Reel
Tape Width (mm) 16
Tape Dimensions (mm)
/
Reel Dimensions (mm)

Download package data for CAD tool, such as 3D model data in STEP format and reference land pattern data designed following JEITA ET-7501 Level3.

  • 3D model(.stp)： 3D model Data in STEP Format
  • Land Pattern(.dxf)： Land pattern Data in DXF Format
  • Land Pattern(.xml)：Land pattern Data in JEITA LPB C-format
  • Land Pattern(.dra)：Land pattern Data for Cadence®OrCAD®
  • Land Pattern(.ftp)： Land pattern Data for Zuken®CR-5000/CR-8000
