DIP26

In developing your designs, please ensure the datasheet.

DIP26package
Toshiba Code HDIP26-P-1332-2.00
Mounting Through Hole
Pins 26
Width×Length×Height
(mm)		 32.0×16.6×3.6
3D Model STEP

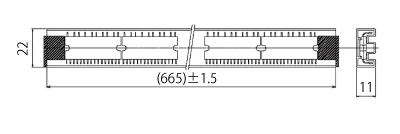

Package Dimensions (mm)
Packing Method Tube Packaging
Minimum Quantity 20 pcs/Tube
Tube Dimensions (mm)

Download package data for CAD tool, such as 3D model data in STEP format and reference land pattern data designed following JEITA ET-7501 Level3.

  • 3D model(.stp)： 3D model Data in STEP Format
Jump to Package & Packing Information
