DIP14

In developing your designs, please ensure the datasheet.

DIP14package
Toshiba Code DIP14-P-300-2.54
JEITA P-DIP14-6.4x19.25-2.54
Mounting Through Hole
Pins 14
Width×Length×Height
(mm)		 19.75×7.62×3.5
3D Model STEP

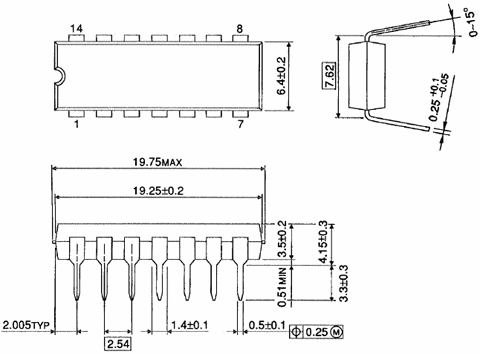

Package Dimensions (mm)
Packing Method Tube Packaging
Minimum Quantity 25 pcs/Tube

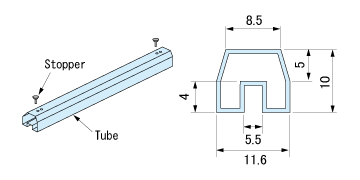

Tube Dimensions (mm)

Download package data for CAD tool, such as 3D model data in STEP format and reference land pattern data designed following JEITA ET-7501 Level3.

  • 3D model(.stp)： 3D model Data in STEP Format
