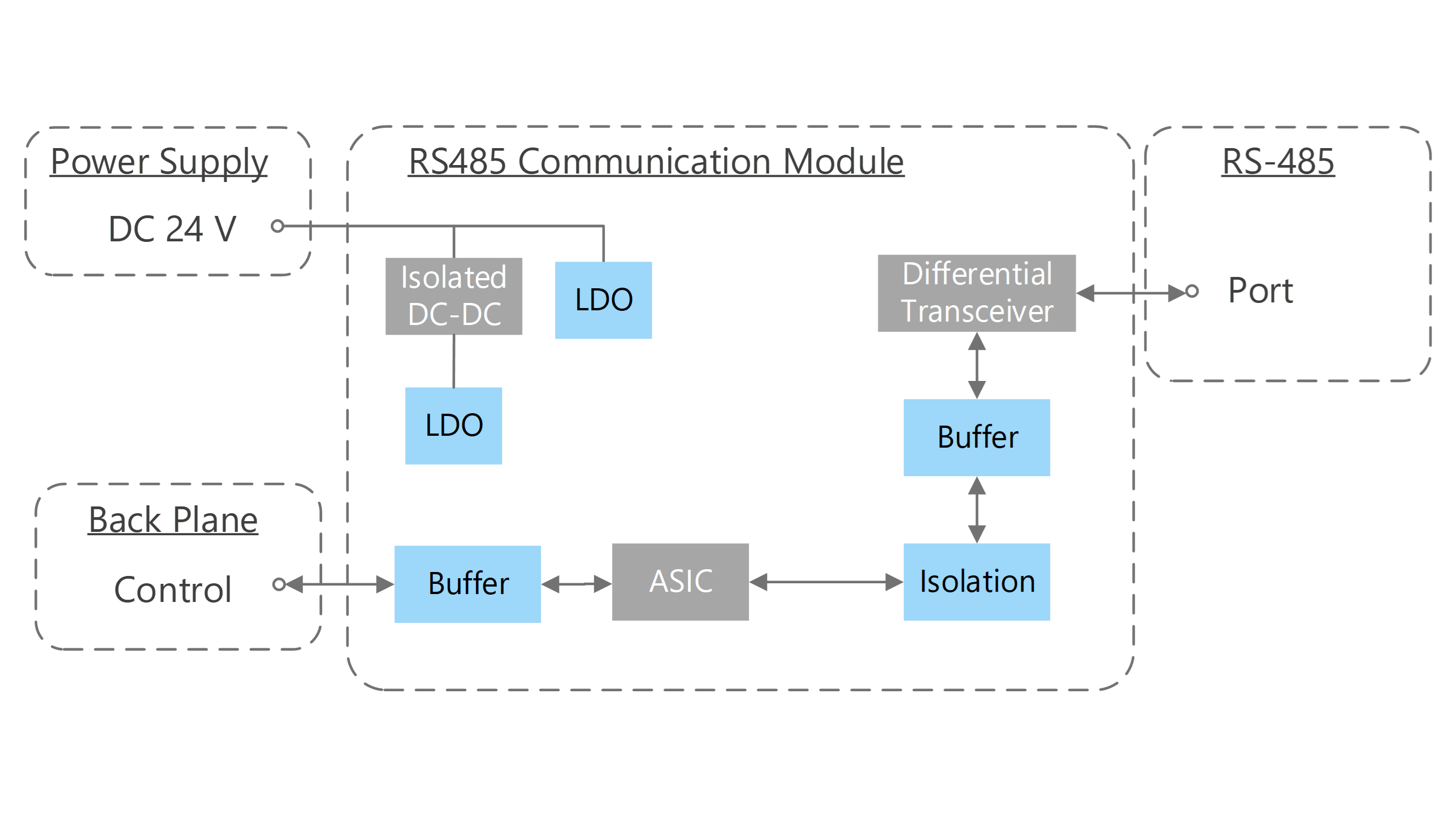

MCU模块（RS-485通讯）电路
分立解决方案的MCU模块电路示例
产品线
标准数字隔离器
[注]DCL54xx01系列产品正在开发中。规格如有更改，恕不另行通知。
高压CMOS线性稳压器
| 器件型号 | 输出电压[V] | 标记 |
|---|---|---|
| TCR1HF18A/B | 1.8 | 1F8 |
| TCR1HF25A/B | 2.5 | 2F5 |
| TCR1HF28A/B | 2.8 | 2F8 |
| TCR1HF30A/B | 3.0 | 3F0 |
| TCR1HF31A/B | 3.1 | 3F1 |
| TCR1HF32A/B | 3.2 | 3F2 |
| TCR1HF33A/B | 3.3 | 3F3 |
| TCR1HF50A/B | 5.0 | 5F0 |
A：带放电功能，B：不带放电功能
[注]TCR1HFxxA／TCR1HFxxB产品正在开发中。规格如有更改，恕不另行通知。
小型贴片式LDO稳压器
| 器件型号 | TCR3DF Series | TCR2EF Series |
|---|---|---|
| 封装 | SMV | SMV |
| VIN（最大值）[V] | 5.5 | 5.5 |
| IOUT（最大值）[mA] | 300 | 200 |
| VOUT[V] | 1.0至4.5 | 1.0至5.0 |
CMOS逻辑IC
| 器件型号 | 74VHC125FT | 74VHC541FT | 74VHCV541FT |
|---|---|---|---|
| 封装 | TSSOP14B | TSSOP20B | |
| VCC[V] | 2.0至5.5 | 2.0至5.5 | 1.8至5.5 |
| tPD（典型值）[ns] @VCC＝5V，CL＝15pF |
3.8 | 3.5 | 3.9 |
| Topr（最大值）[°C] | 125 | 125 | 125 |
| 功能 | 四路总线缓冲器 （三态输出） |
八路总线缓冲器 （三态输出） |
八路施密特总线缓冲器 （三态输出） |
