以下是NPN晶体管的电气特性表示例
特性 | 符号 | 测试条件 | 最小值 | 典型值 | 最大值 | 单位 |
---|---|---|---|---|---|---|
1. 集电极截止电流 | ICBO | VCB=60V,IE=0 | - | - | 0.1 | μA |
2.发射极截止电流 | IEBO | VEB=5V,IC=0 | - | - | 0.1 | μA |
3.直流电流增益 | hFE(1)(注) | VCE=6V,IC=2mA | 70 | - | 700 | |
hFE(2) | VCE=6V,IC=150mA | 25 | 100 | - | ||
4.集电极-发射极饱和电压 | VCE(SAT) | IC=100mA,IB=10mA | - | 0.1 | 0.25 | V |
5.基极-发射极饱和电压 | VBE(SAT) | IC=100mA,IB=10mA | - | - | 1.0 | V |
特征频率 | fT | VCE=10V,IC=1mA | 80 | - | - | MHz |
集电极输出电容 | Cob | VCB=10V,IE=0,f=1MHz | - | 2.0 | 3.5 | pF |
与基极串联的电阻器 | rbb | VCE=10V,IE=-1mA,f=30MHz | - | 50 | - | Ω |
噪声系数 | NF | VCE=6V,IC=0.1mA,f=1kHz,RG=10kΩ | - | 1 | 10 | dB |
测量ICBO
2. 发射极截止电流
测量IEBO
3. 直流电流增益
测量直流电流增益hFE
增加基极-发射极电压(VBE)直至集电极电流(IC)达到指定值。调整VBE以保持IC恒定并测量基极电流(IB)。计算直流电流增益(hFE),如下所示:
hFE=IC/IB
直流电流增益(hFE)曲线示例
4. 集电极-发射极饱和电压

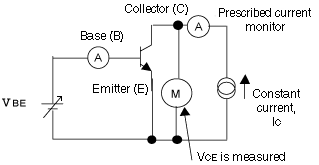

测量集电极-发射极饱和电压,VCE(sat)
施加规定的恒定集电极电流(IC)以增加基极-发射极电压(VBE),直至基极电流(IB)达到指定值。调整IC以保持IB恒定并测量集电极-发射极电压。
5. 基极-发射极饱和电压

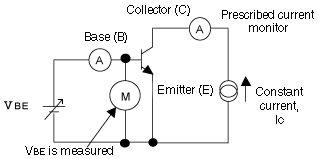

测量基极-发射极饱和电压VBE(sat)
施加规定的恒定集电极电流(IC)以增加基极-发射极电压(VBE)直至基极电流(IB)达到指定值。调整IC以保持IB恒定并测量基极-发射极电压。
注:保持恒流源的开路电压低于集电极-发射极击穿电压。
集电极-发射极饱和电压(VCE(sat))曲线示例
