eFuse IC(电子保险丝/熔断器)的过流保护工作原理是什么?

我们的eFuse IC的过流保护有两种保护操作方法。
请根据系统需求进行选择。下图显示了TCKE8系列的操作示例。详见各数据表。

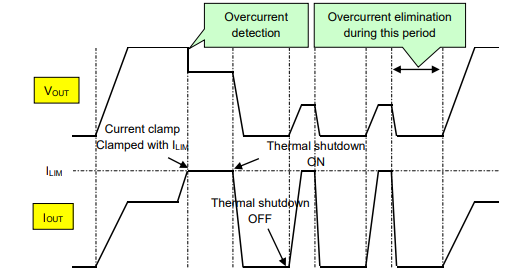

  • 自动重试型
    当电流超过过流限制ILIM时,通过ILIM限制流经eFuse IC并进入内部MOSFET的电流。
    此时,eFuse IC产生功耗PD=(VIN-VOUT) ×ILIM,结温升高,从而进入热关断操作并关断MOSFET。
    MOSFET关断后,结温降低,随后MOSFET再次导通。如果过流情况未解决,ILIM会限流,然后再次执行热关断操作。

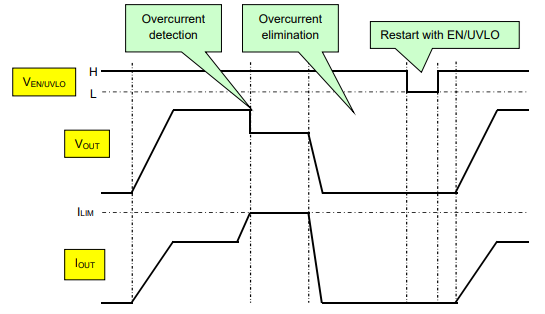

  • 锁存型
    与自动重试型一样,当发生过流时,通过ILIM确定的电流限制流经MOSFET的电流后,eFuse IC进入热关断模式并关断MOSFET。
    锁存型使MOSFET保持关断状态。
    如欲解除锁存状态,当过流状态解除后,将EN/UVLO引脚的电压设为低电平,然后再将其设为高电平。

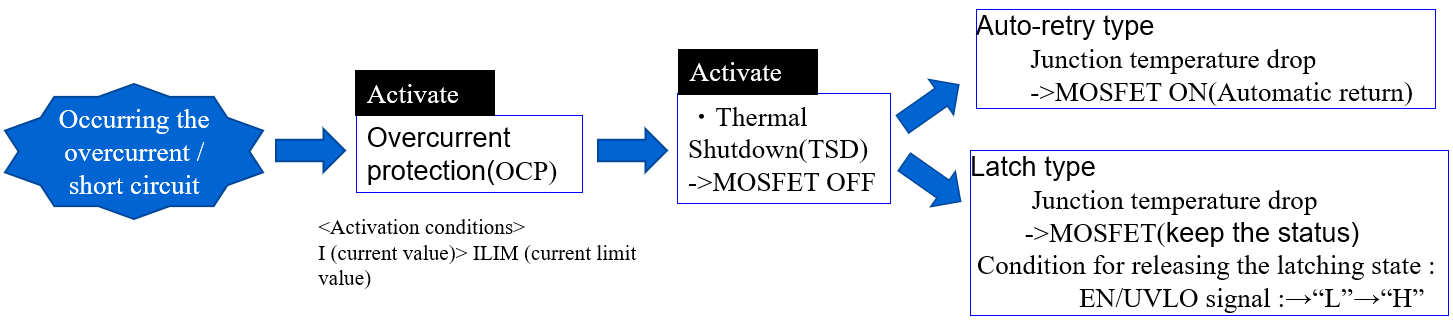

发生过流/短路
