下载“第Ⅱ章:二极管” (PDF:895KB)

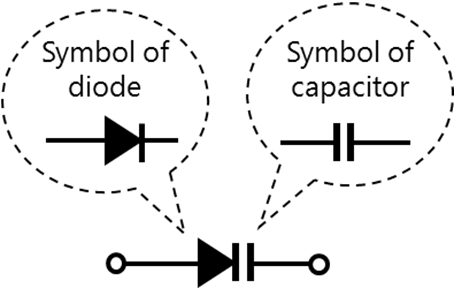

可变电容二极管是利用耗尽层电容特性的产品。当施加反向电压时,耗尽层出现在二极管的pn结中,其厚度与反向电压成正比。

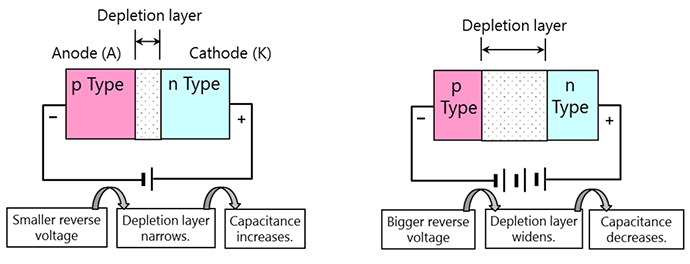

因此,随着反向电压的增加,耗尽层厚度增加,但电容减小。其作用与增加电容器两个电极之间的距离相同。相反,如果反向电压减小,耗尽层厚度减小,但电容增加。
它应用于调谐电路等。由于这种电容变化会改变频率特性,因此与普通二极管相比,需要较大的电容变化率。

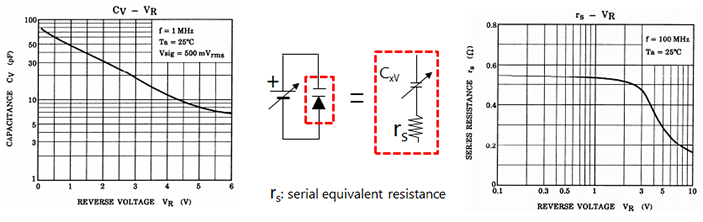

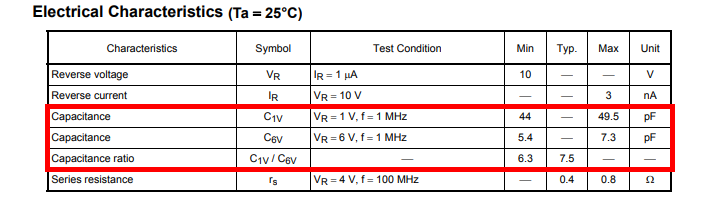

可变电容二极管与一般二极管不同,其重要特性不是正向电压VF和开关特性,而是电容值及其变化(取决于电压)。
